AC10-18V/DC10-30V, Side Pin T3 JC G4 LED Bulb, 1.8 Watts, 15W Equivalent, 5-Pack
Input voltage is AC10-18V/DC10-30V
Power consumption is 1.8 Watts

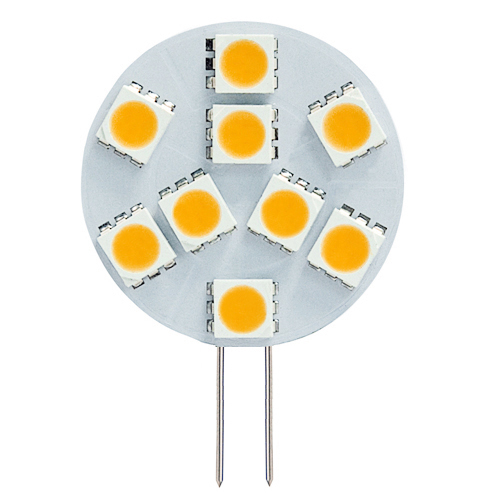

Uses 9 pcs SMD 5050 LEDs
Luminous flux up to 150 lumens maximum

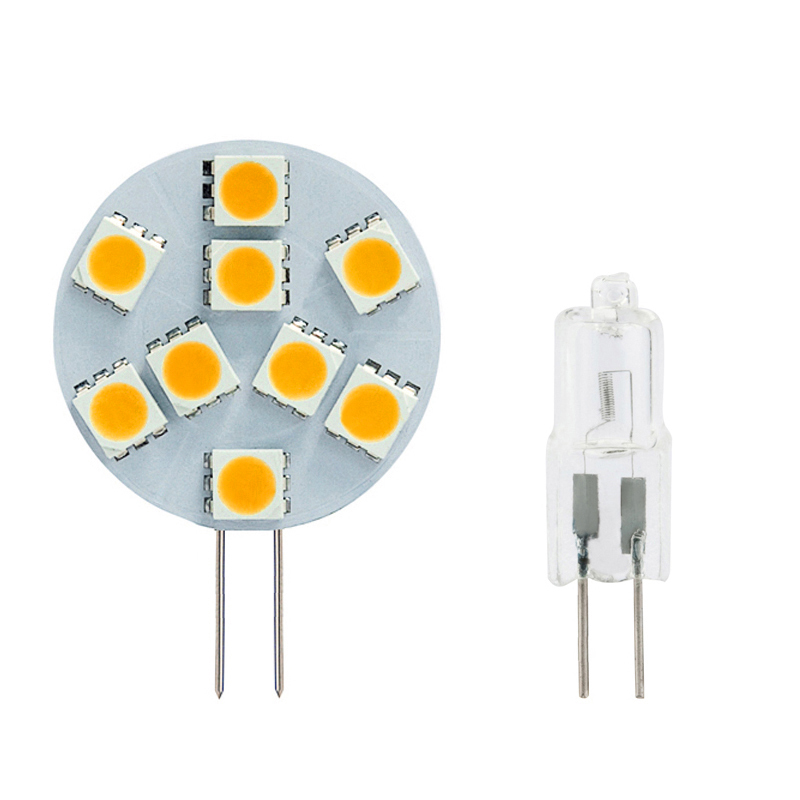

Nearly equivalent to standard 15W halogen/incandescent bulb

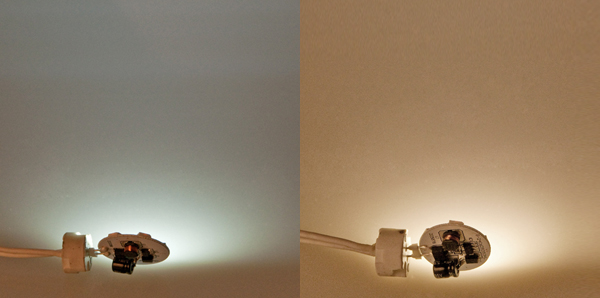

Optional colors are cool white, daylight white, and warm white
120-degree wide beam floodlight

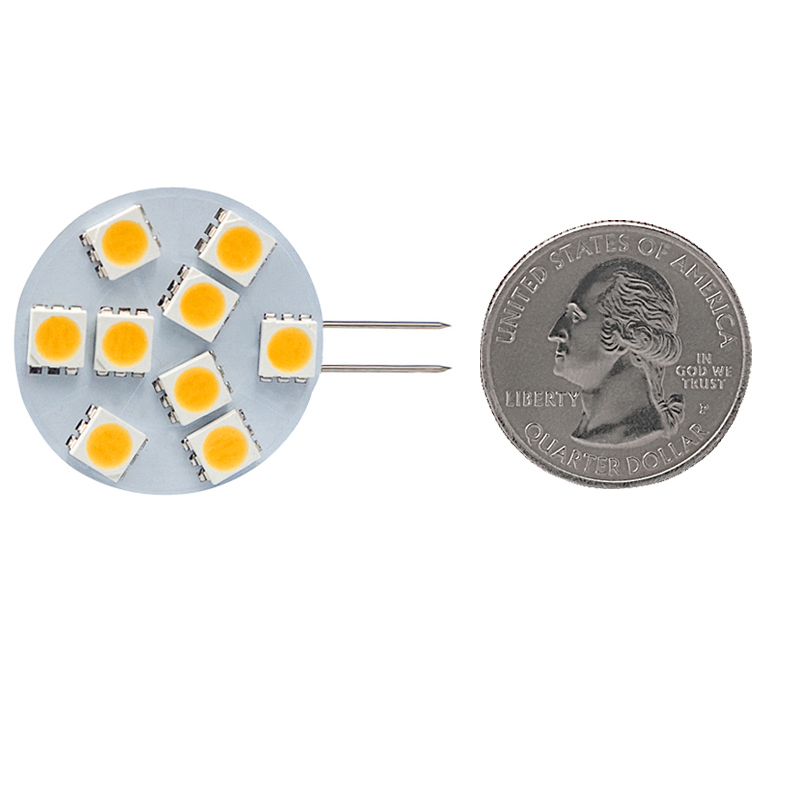

1.10 inch diameter x 1.57 inch total length
For use in ceiling lights, pendant lights, desk lamps, table lights, puck lights, under-counter lights, closet lights, under-cabinet lights, accent lights or display lighting etc.
The package includes 5 pcs bulbs
Non-Weatherproof. Indoor use only unless contained within weatherproof housing.
Standards and Certifications
Wattage: 1.8 Watt
Halogen Equivalent: 15 Watt
Bulb Base: G4
Bulb Shape: T3 JC
Luminous Flux: max.150 Lumen
Beam Angle: 120 Degree
LED Brand: Epistar
LED Type: Tri-chip 5050 SMD LED
LED Quantity: 9 Pcs
LED Color(s): Cool White / Daylight White / Wam White
CCT or Wavelength: 6000K / 5000K / 3000K / 2700K
Color Rendering Index: 80
Diameter: 28mm (1.10in.)
Length (M.O.L.): 40mm (1.57 in.)
LED Lifetime: 40,000 Hours
