DC12-24V 20A 32CH Dynamic LED Motion Sensor Step Lights Controller, Easy Wiring
- $16.00 $9.9838% off
- $50.00 $45.988% off
- $29.98 $12.9857% off
- $16.99 $14.9912% off
Special Price: $79.98
This led controller is perfectly to suit your multi-storey stairs, with a total of 99+99 channels. Between two PIR sensors, a maximum of 99 steps can be connected as long as the power of the led strip allows. 32 channels by default. 16 steps per floor.
It is an excellent idea to light up the stairwell with white LED strips. Each step is illuminated, reducing dark areas, and enhancing safety when going up and down stairs.
The led stair light controller has no complicated wiring, all step lights are connected to one main wire, using solderless wire connectors for easy installation.
Light controller with motion sensor makes the use of stair lighting intelligent, you do not have to use a remote or switch to control the stair lights. When you are ready to go up or down the stairs, the PIR sensor will detect your movement, and then the lights will automatically turn on and turn off. It is energy saving than stair lights that are always on.
We provide 3000K/6000K spotless chip on board led strip in the kit, choose according to your needs. Based on the power and the number of your light strips to calculate how much capacity power supply you need (strip power*strip number*1.2). The required strip length and strip wire length can be customized by contacting us or remarked when placing an order.

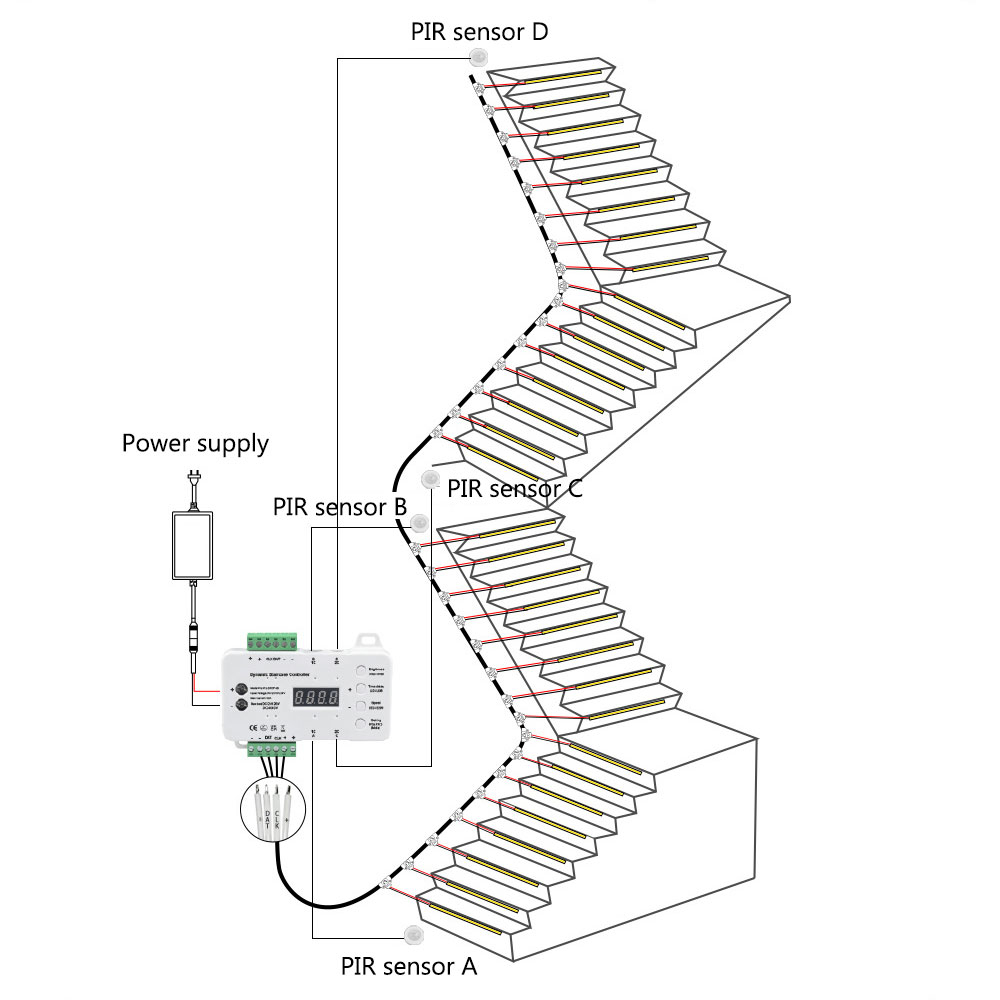

Conventional wiring VS upgraded wiring
Conventional wiring: Each step needs a separate wire to connect to the controller, the wiring is complicated.
Upgraded wiring: One main wire connects all the step lights, easy to install.
|FF01||All step lights on|
|FF02||All step lights on one by one|
|FF03||All step lights on with 2pcs steps at the time|
|FF04||All step lights on with 3pcs steps at the time|
|FF05||1 step light on, moving according to the speed setting|
|FF06||2 step light on, moving according to the speed setting|
|FF07||3 step light on, moving according to the speed setting|
|FF08||1 step light chase, moving according to the speed setting|
|FF09||2 step light chase, moving according to the speed setting|
|FF10||3 step light chase, moving according to the speed setting|
|FF11||Seperated chase, moving according to the speed setting|
|FF12||Auto change all modes 01-11|
Standards and Certifications

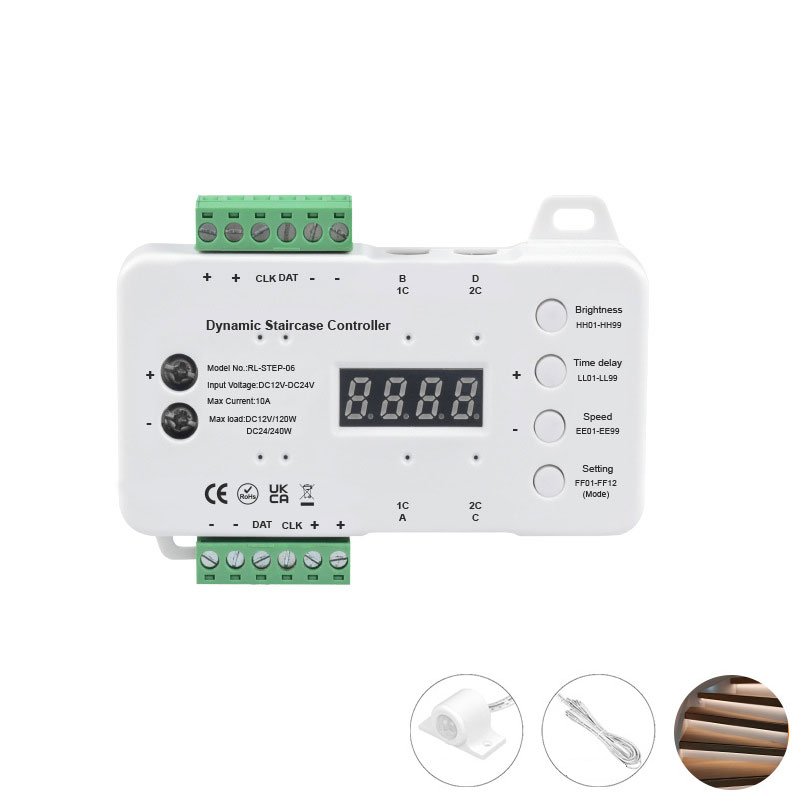

Type: Motion Sensor LED Stair Light Controller
Shell Material: ABS
Working Voltage: DC12-24V
Max Current: 20A
Controller Size: 150mm*53mm*20mm
PIR Sensor Size: 30mm*14mm*16mm for surface mount; 14mm*17mm for recessed mount
Power: Each step < 15W; max load 240W/12V, 480W/24V
Function: Mode, brightness, delay time, speed adjustable
Package List: 1*controller, 4*PIR sensor, 4*1m sensor cable, 3*5m extension cord
