Product Information

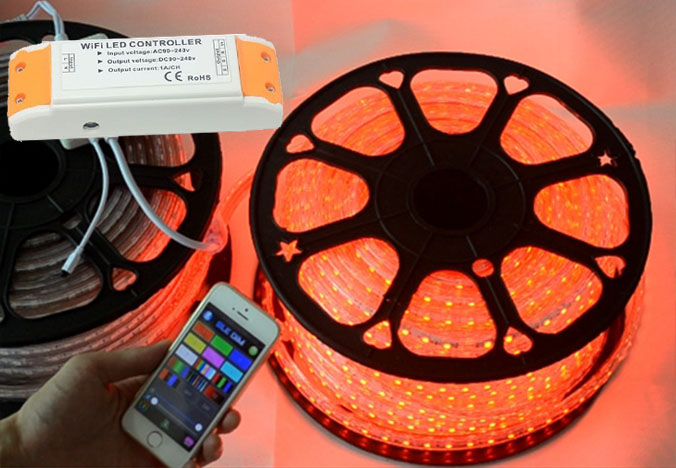

Unlock advanced, smart control for your high-voltage lighting projects with the CONHV-RF-7 WiFi RGB LED Controller. Designed for both 110V and 220V systems, this new-design controller brings your architectural, landscape, or commercial lighting to life. Manage colors, brightness, and dynamic effects from anywhere using the Tuya Smart Life app, or use the included 2.4G RF remote for quick, local adjustments. What truly sets this model apart is its innovative tool-free wiring system; the plug-and-play ports make installation incredibly fast and secure. Robustly handles up to 360W on 110V systems and a massive 750W on 220V systems, perfect for smart AC RGB LED strip runs.
Key Features
Smart WiFi + RF Control
Integrates with the Tuya Smart Life app for global control and voice commands, plus a multi-function 2.4G RF remote for direct access.
Effortless Tool-Free Wiring
Features innovative clamp-down ports for both input and output, allowing for secure, solder-free connections in seconds.
Advanced Remote Functions
The included remote offers static color selection, dynamic modes, speed/brightness adjustment, timer, music sync, and a lock function.
Voice Control Ready
Easily link with Amazon Alexa or Google Assistant through the Tuya app for convenient, hands-free voice commands.
Product Specifications
| Parameter | Details |
|---|---|
| Model | CONHV-RF-7 |
| Controller Type | High Voltage WiFi + RF RGB LED Controller |
| Input Voltage | AC 110V±20% or AC 220V±20% (Selectable) |
| Max Output Power | 360W @110V, 750W @220V |
| Control Method | Tuya Smart Life App (WiFi), 2.4G RF Remote Control |
| Remote Keys | 24-key multi-function remote |
| Connection Mode | Common Anode (V+, R, G, B) |
| IP Rating | IP20 |
| Working Temperature | -20℃ to 60℃ |
| Dimensions (L*W*H) | 110 * 42 * 45 mm |
| Control Distance (RF) | 10-15 meters |
| Housing Material | Plastic |
What's in the Box
- ✓1 x CONHV-RF-7 Tuya WiFi High Voltage RGB Controller
- ✓1 x 24-Key 2.4G RF Remote Control
Frequently Asked Questions
Q: Can I control this with my voice using Alexa or Google Home?
A:Yes. Once you connect the controller to the Tuya Smart Life app, you can link the app to Amazon Alexa or Google Assistant for full voice control.
Q: What is the maximum length of LED strip this can control?
A:The maximum length depends on the power consumption (watts per meter) of your LED strip. This controller supports a total load of up to 360W on a 110V system or 750W on a 220V system.
Q: Do I need a separate power supply for this controller?
A:No, this is a high-voltage controller designed to connect directly to your AC 110V or AC 220V mains power.
Q: What is the benefit of the tool-free wiring?
A:The tool-free clamp-down ports make installation much faster, easier, and safer. You don't need to solder or use screw terminals; just insert the wire and close the cover for a secure electrical connection.
Q: Can I use the remote and the app at the same time?
A:Yes, you can use either the WiFi app or the RF remote to control your lights. The controller will respond to the most recent command from either source.
Q: Will this work with my 5GHz WiFi network?
A:No, like most smart home devices, this controller is designed to connect to a 2.4GHz WiFi network for maximum range and compatibility.
