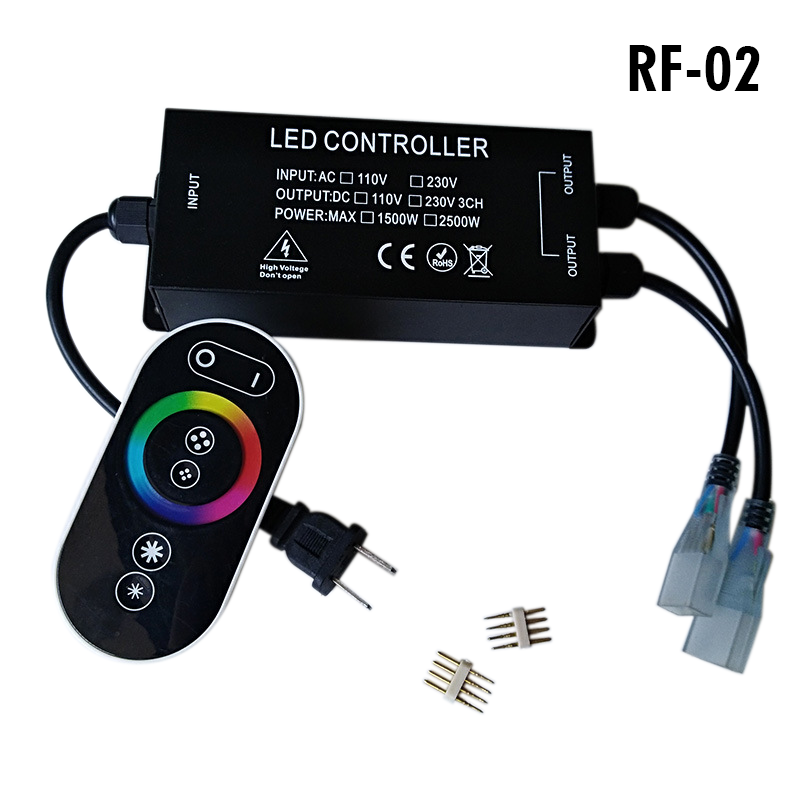

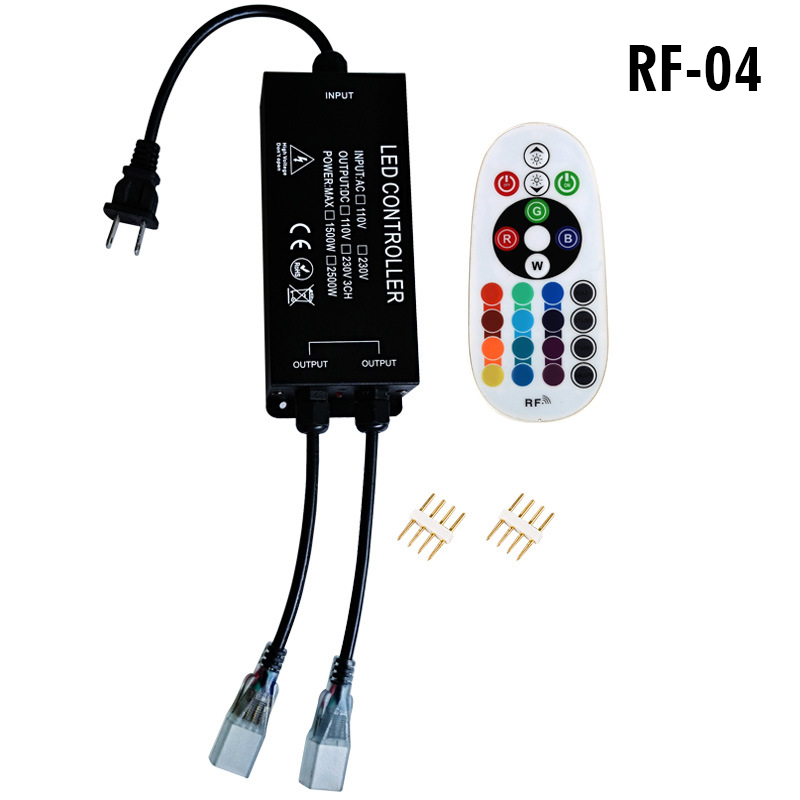

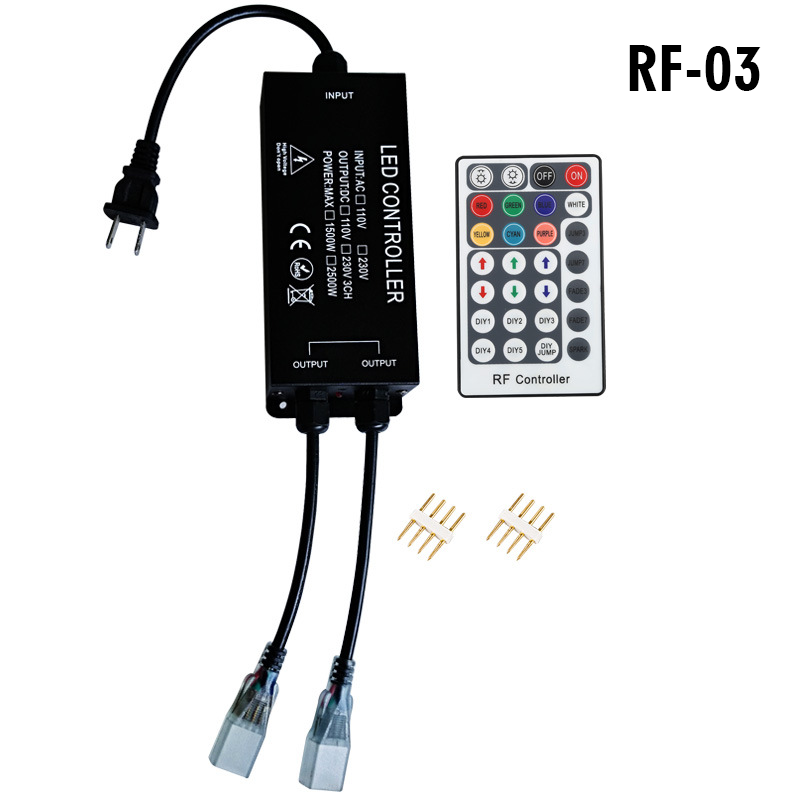

AC110/220V High Power 1500/2500W, One to Two High Voltage Controller, PWM LED RGB Wireless RF 24 keys Remote Controller, For 328 or 656 Ft RGB High Voltage LED strip lights, LED modules lights
1. High voltage Dimmer US or EU Plug touch infrared controller adopts the advanced micro-control unit, it is used for controlling a High voltage RGB color change flexible led strip lights. It has power-fail memory, synchronized indicator light show, and other functions. At the same time, it has many advantages such as low price, easy connection, and simplicity to use.
2. Unique appearance, circle remote have a good feeling, The touch panel is stable. Adopt PWM technology, change of lights is smooth, Unique remote cooperate, controller, have a perfect visual effect.
3. Max output power is 110V/1500W or 220V/2500W, with 650 thousand kinds of color selection and 15 kinds of automatic change mode, according to the actual need of customers, it can carry out jumpy changing, gradual changing, strobe flash and other effects of change, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared touch remote control.
4. RF remote control has mode switching, brightness adjustment, and touch color ring color palette, color ring up to 256 colors can be controlled. Remote control distance is 10-20 meters, and the strips can be controlled across the wall, 220V can connect 200 meters of the LED strips, 110V can connect 100 meters of the LED strips.
5. This product USES the advanced PWM (pulse width modulation) control technology, can control all four line three loops (common anode) LED full-color lighting products, widely used in the light control of RGB LED strip, LED module and other products.
Controller Type: High Voltage Led Controller
Input Voltage: 110/220V
Output Watts: 110V/1500W 220V/2500W
Connection mode: common anode G+RB output (If you need other line output, please contact us)
Control mode: radio frequency remote control
Application: High Voltage RGB color change led strip lights.
Output:: 3 circuits (R / G / B)
Dimension: L163.65 * W60 * H28 mm
Gross Weight/Package: 360g
Receiving range: 20meters
Shell: Aluminum case
IR Remote Control
Power supply: AAA battery * 3pcs (Not included)
Cover material: ABS
Fabrication processing: multicolour printing & UV varnish
How to connect the whole roll of led strips
How to use WiFi Amazon Alexa smart switch to connect led strips, you need a wifi switch, click to buy
How to use Amplifier to connect super long led strips
How to Use DMX decoder to control large led strip lighting project
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
led stage lighting
A. is 110V/220V power input, the output high voltage 110/220 v article lamp directly. Article 110/220 v meet in the same line, at the same time electricity.
B. should be in strict accordance with the wiring. Red, green, black and blue four lines, the black line is the line. Otherwise the color with the remote control signal may not to be relatively color or out of sync.
C. the quality assurance for one year. Artificial damage or misuse damage is not within the warranty.
D. can theoretically with the highest 5050-60 RGB light 100 meters.(according to the measured, to achieve ideal control effect, suggested that connect input 220V with 200 m or input 110V with 100 meters)
Supply input voltage of this product is AC110/220V.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting high voltage led strip lights and load.
For indoor use only - this product is not waterproof or weatherproof.
1 x High Voltage led dimmer controller
1 × RF wireless remote control
1 x Piece of User's Manual
some led strips accessories
