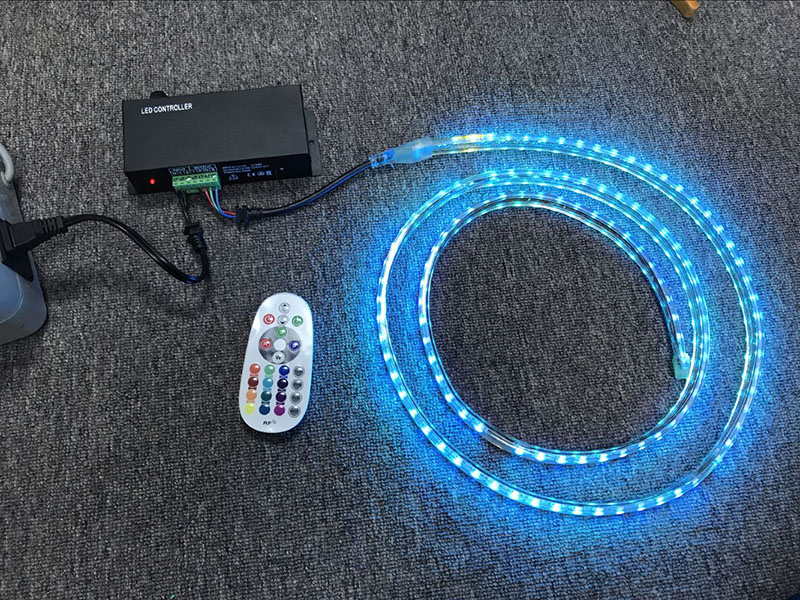

AC110V/220V 2500W 24Keys RF RGB Controller, Suitable For 100m/328ft Outdoor Waterproof 110V LED Strips Project With UL Listed AC US Plug

Model: CONHV-2500W-1
AC110V/220V 2500W 24Keys RF RGB Controller, Suitable For 100m/328ft Outdoor Waterproof 110V LED Strips Project With UL Listed AC US Plug
  • AC110V/220V 2500W 24Keys RF RGB Controller, Suitable For 100m/328ft Outdoor Waterproof 110V LED Strips Project With UL Listed AC US Plug
  • AC110V/220V 2500W 24Keys RF RGB Controller, Suitable For 100m/328ft Outdoor Waterproof 110V LED Strips Project With UL Listed AC US Plug
  • AC110V/220V 2500W 24Keys RF RGB Controller, Suitable For 100m/328ft Outdoor Waterproof 110V LED Strips Project With UL Listed AC US Plug
  • AC110V/220V 2500W 24Keys RF RGB Controller, Suitable For 100m/328ft Outdoor Waterproof 110V LED Strips Project With UL Listed AC US Plug

Select Specifications:

Select Applied to:

$29.99

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$29.99
5-9
$29.39
10-14
$28.49
15+
$27.29
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    RF controller adopts advanced computer control chip to control various 110V / 220V lamps with LED as light sources, such as LED high-pressure lamp strips, rainbow tubes, and other high-pressure lamps and lanterns; With the advantages of convenient connection and simple

    use;  this product has many kinds of change can realize seven-color jumping, gradual change, stroboscopic, static color, and other light changes according to the actual needs of customers, with power saving and memory functions, and avoid frequent setting

    This controller has two kinds of input power, AC110V, and AC220V, According to the power rule, when the AC is halved, the output power is also halved.

    if you choose AC110V, we will send US plug to you, and AC110V also output 2500watt power, so it can only support Maximum connect 100meter/328feet 110-220V high voltage led strips.

    If you choose AC220V, we will send EU plug to you, and AC220V output 2500W, so it can support Maximum connect 100meter/328feet AC220-230V high voltage led strips.

    When calculating the power of your project, please do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.

    So 220V/2500W we recommend that you Maximum connect 328feet, 110V/2500W we recommend that you Maximum connect 164feet.

    If your lighting project length more than controller output power, please use a 1500W high voltage amplifier. If your outdoor large lighting project needs to achieve the effect and color synchronization, we recommend that you use some DMX high-pressure decoders to control them through the DMX console.

    How to connct, please feel free to contact us. sales@superlightingled.com


    Function introduction:

     1. Wireless remote control by RF radio frequency, the remote controller does not need to aim at the controller and can be controlled by the partition wall.

    2, remote control distance, empty remote control distance is greater than 100 meters.

    3. Each remote controller has a unique address code. Each controller can learn two remote controller addresses, and the controller and remote controller can implement remote control and remote control.

    4, through the touch color ring on the remote control, can achieve colorfast and smooth switching.


    Third, the control method:

    1. The controller has been paired with the remote controller at the factory.

    2. Only the power-on key is valid in the power-off state. In the power-off state for the first time, pressing the power-on key controller changes the mode before the last power-off.

    3, in the boot state, the power button as a static color and dynamic mode change in the switch.

    4, in the static mode, can quickly and smoothly change the color of the lamp through the color ring and can change the color depth and brightness.

    5. In the static mode, press the power button again to enter the dynamic mode, and press again to return to the static mode.


    Controller technical parameters:

    1: Operating voltage: AC110-220v

    2: Control current: 10A channel.

    3: Control distance: 20M

    4: Operating temperature: -40°C-60°C




    Standards and Certifications





    Connection Diagram

    How to connect the whole roll of led strips

    How to use WiFi Amazon Alexa smart switch to connect led strips, you need a wifi switch, click to buy



    How to use Amplifier to connect super long led strips



    How to Use DMX decoder to control large led strip lighting project



    Applications

    1. Back/task lighting

    2. Cove LED lighting

    3. Retail LED lighting

    4. Display case LED lighting

    5. Accent LED lights

    6. Under cabinet lighting

    7. led stage lighting



    Note

    AC110V or 220V power input, the output high voltage AC110V or 220V article lamp directly. Article AC110v or 220 v meet in the same line, at the same time electricity.

    The quality assurance for one year. Artificial damage or misuse damage is not within the warranty.



    Safety

    Supply input voltage of this product is AC110V or AC220V.

    Shorting output wires may cause damage to the controller.

    Always observe proper polarity when connecting high voltage led strip lights and load.

    For indoor use only - this product is not waterproof or weatherproof.

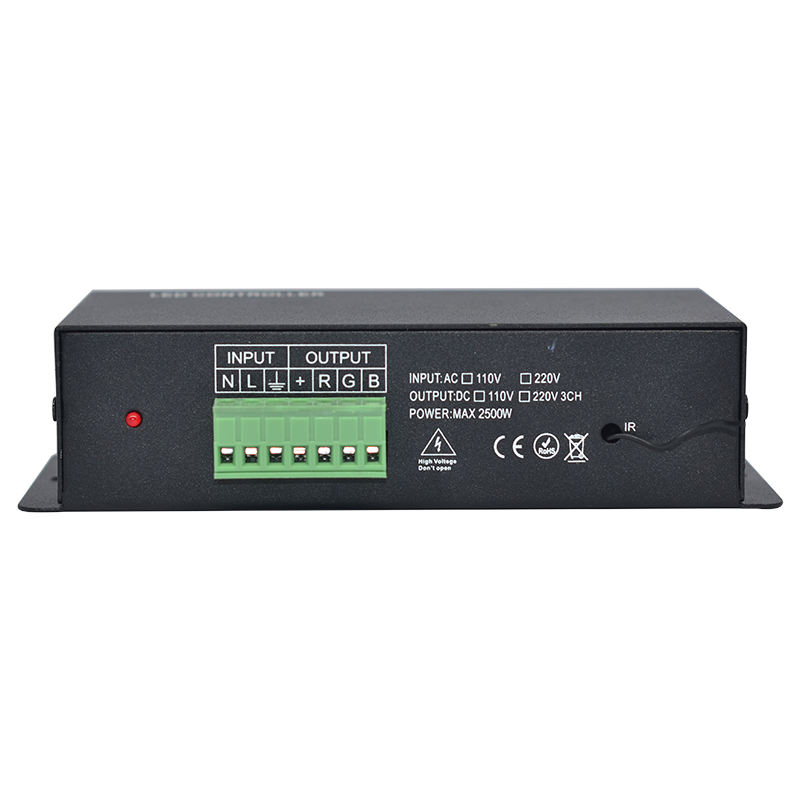

    You can Custom Wire Order, G, V+, R, B



    Package including

    1 x  High Voltage led controller

    1 x  IR remote control

    1 x  4-Pins

    1 x  Piece of User's Manual
