Product Information

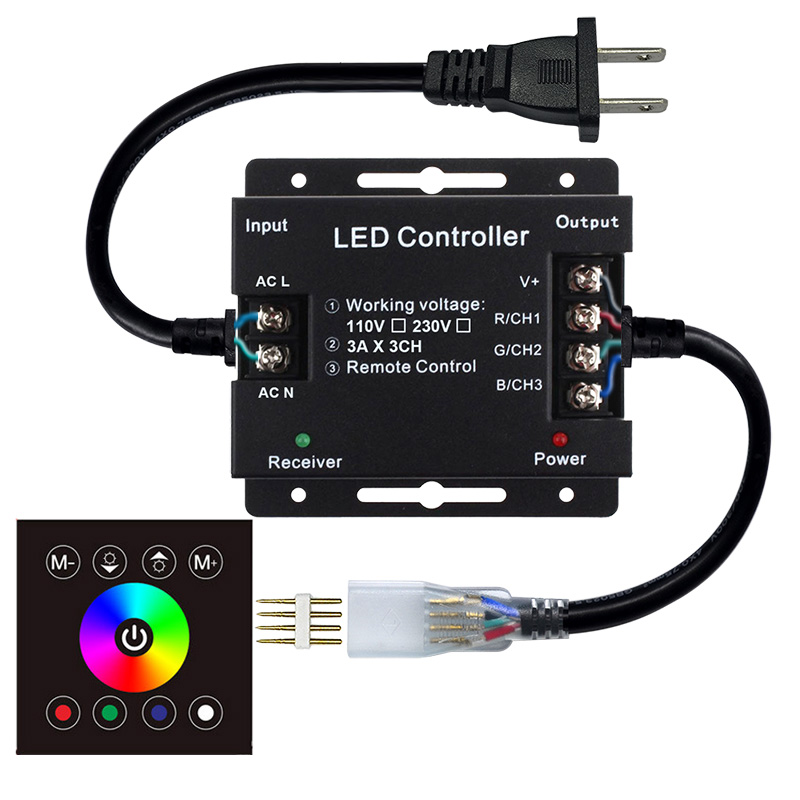

Achieve sophisticated, high-capacity control over your architectural lighting with the CONHV-PANEL-7 High Voltage RGB LED Controller. This professional system pairs a powerful 1500W receiver with an elegant 86-type glass touch wall panel, designed for direct AC 110V/220V operation. It's the ideal solution for managing long runs of high-voltage RGB LED neon flex or strip lights in large-scale commercial, hospitality, and facade lighting projects. The intuitive color ring and 8-key interface provide seamless access to 19 dynamic modes and precise static colors. With reliable RF wireless technology, you can synchronize multiple receivers from a single panel for perfectly uniform lighting effects across expansive areas.
How can you change your high-voltage RGB lights via this controller set?
The four function keys at the bottom of the panel—red, blue, green, and white—control brightness output. In dynamic modes, pressing these four keys will switch the display to the corresponding static color.
Use the M+ and M- buttons to select modes: Static White, Static Cool White, Static Pink, Static Yellow, Static Blue, Static Green, Static Red, Auto Cycle, Red Strobe, Red Gradient, White Strobe, White Gradient, Seven-Color Strobe, Seven-Color Gradient, Seven-Color Jump, Red-Green Gradient, Red-Green-Blue Strobing, Red-Green-Blue Gradient, and Red-Green-Blue Jumping.
Key Features
Elegant Glass Touch Panel
Features a sleek, responsive 86-type wall-mounted panel with an intuitive color ring for precise and modern lighting control.
High Power Capacity
Handles up to 1500W at 220V (750W at 110V), perfect for long runs of high-voltage LED neon or extensive strip lighting installations.
Advanced RF Wireless Control
Enjoy a reliable 15-20 meter control range, allowing you to manage lighting without requiring a direct line-of-sight to the receiver.
19 Dynamic Lighting Modes
Choose from 7 static colors and 12 built-in dynamic effects like fades, strobes, and jumps, with adjustable speed and brightness.
Multi-Receiver Synchronization
A single touch panel can be paired to control multiple receivers simultaneously, ensuring perfectly synchronized lighting effects across large areas.
Product Specifications
| Parameter | Details |
|---|---|
| Model | CONHV-PANEL-7 |
| Input Voltage | AC 110V / 220V (Panel & Receiver) |
| Output Power | <1000W @ 110V, <1500W @ 230V |
| Output Channels | 3 Channels (RGB) |
| Connection Method | Common Anode |
| Control Method | RF Wireless Touch Panel |
| Remote Range | 15-20 meters |
| Panel Dimensions | L86 x W86 x H32 mm |
| Panel Type | Standard 86 Type Wall Box |
| Panel Material | Tempered Glass, PC |
| Dynamic Modes | 19 pre-programmed modes |
| Static Colors | 7 (Red, Green, Blue, White, Yellow, Pink, Cool White) |
| Working Temperature | -20°C to 60°C |
| Static Power Consumption | <1W |
Application Scenarios
What's in the Box
- ✓1 x High Voltage RGB LED Controller Receiver
- ✓1 x 86 Type RF Glass Touch Panel Remote
-
Frequently Asked Questions
Q: Can one touch panel control multiple separate rooms independently?
A:No, this panel is designed to control multiple receivers simultaneously for synchronized effects. For independent multi-zone control, you would need a separate panel and receiver set for each zone.
Q: Does the touch panel require its own battery or power supply?

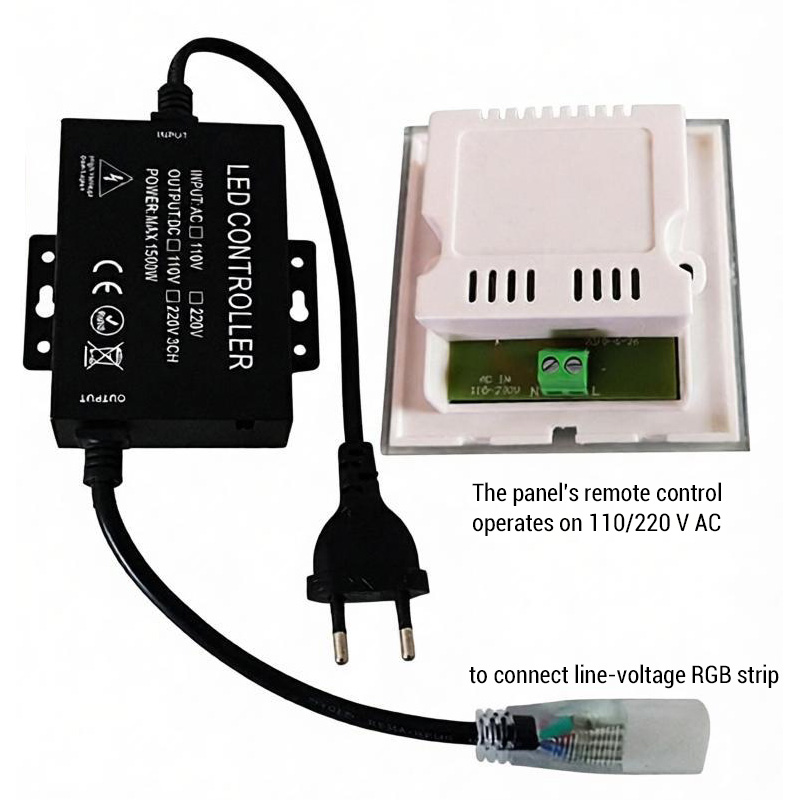

A:No, the touch panel is powered directly by AC 110V or 220V, just like the main controller receiver. This simplifies wiring and eliminates the need for batteries.
Q: How do I calculate the maximum length of LED strip I can control?
A:Divide the controller's maximum power (e.g., 1500W at 220V) by your strip's power consumption in Watts per meter (W/m). The result is the maximum length in meters you can safely connect. However, it is best to reserve 20% of the controller’s capacity to extend its service life.
