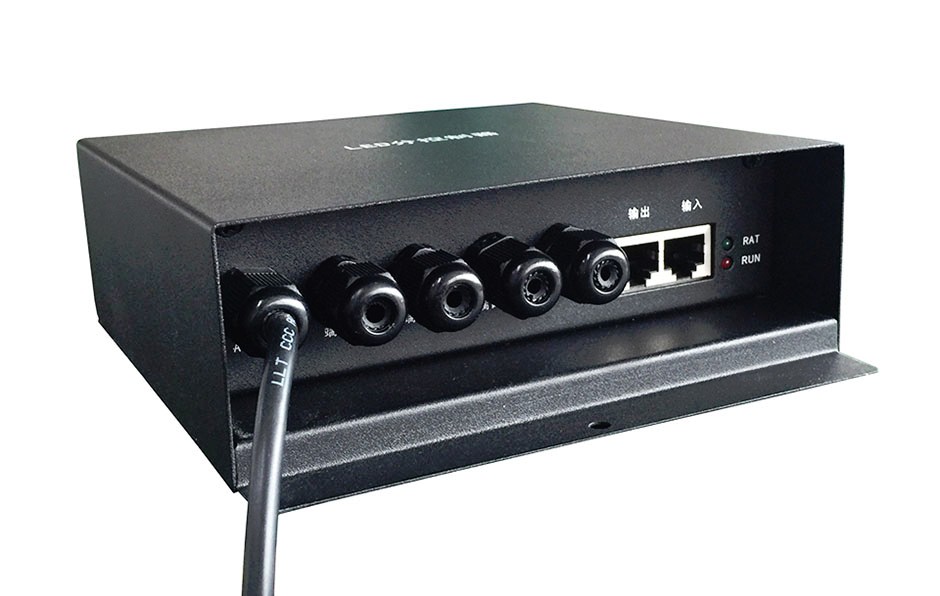

AC220V led programmable controller.4 ports drive 3412 pixels,support DMX512,WS2811,WS2812,LPD6803, For full color lights
Item Type: RGB Controler
Power Source: AC
Features: works online or offline
Remote Distance: none
Controled Method: controlled by master or computer
Warranty: 1 year
Max. Load Power: 10W
Model Number: H801RA
Applicable Lights: full color lights

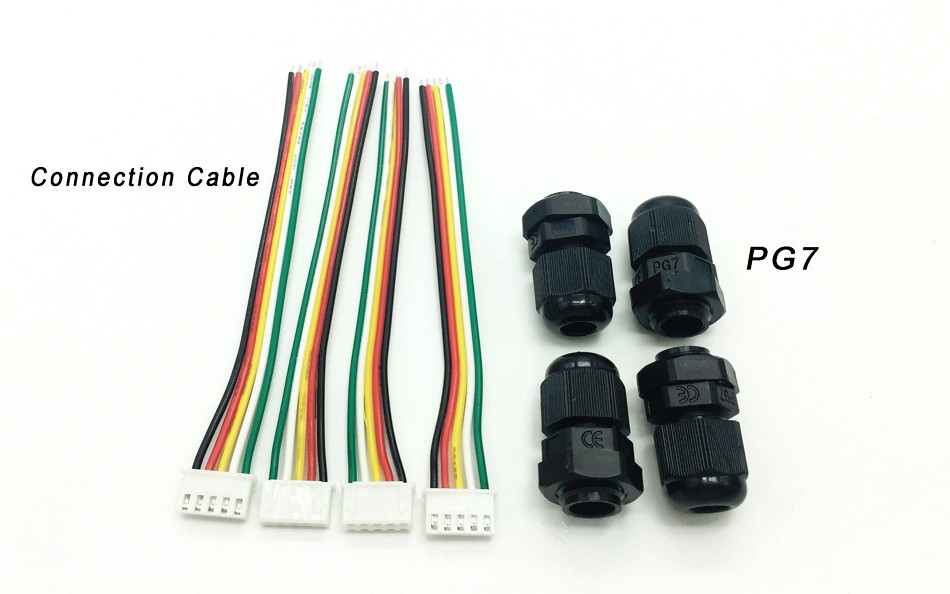

Connection Mode: GND-GND,CLK(D-)-CLK(D-),DAT(D+)-DAT(D+)
drive pixels number: 3412

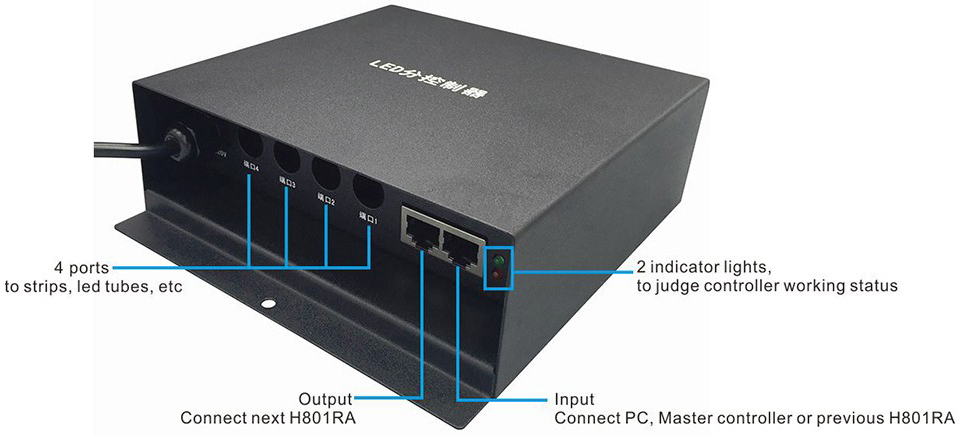

output ports number: 4

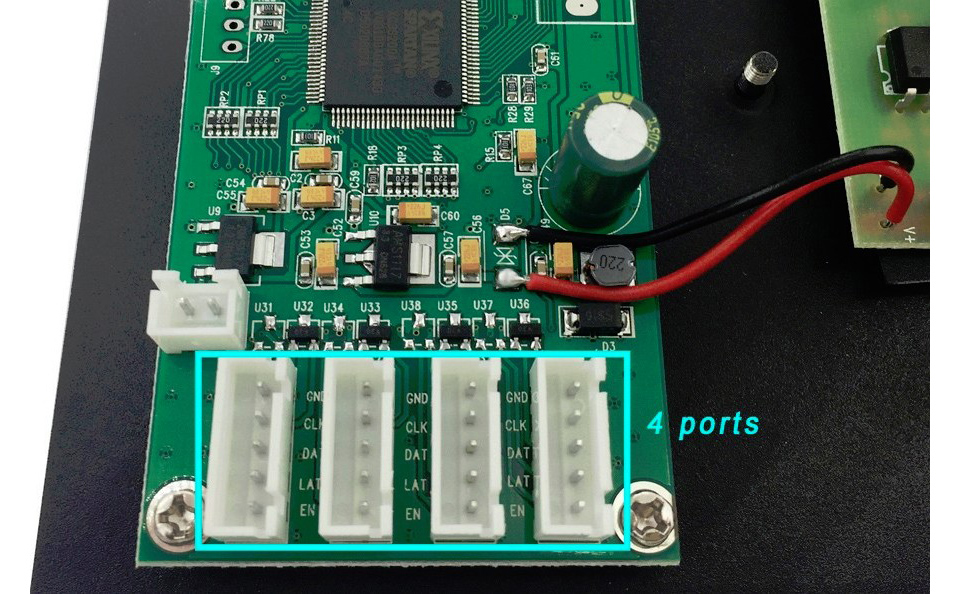

(1). Four ports drive a maximum of 3412 pixels.
(2). H801RA can be connected to mastert controller or computer.
(3). High synchronization performance, the transmission of adjacent slave controller delays within 200 ns.
(4). Good control affect. Using a special algorithm to control the disable lamp to reach 256 levels grayscale and can control the enable lamp to reach 65536 (64K) levels grayscale.
(5). Far transmission distance. The nominal transmission distance of two controllers is 100 meters.

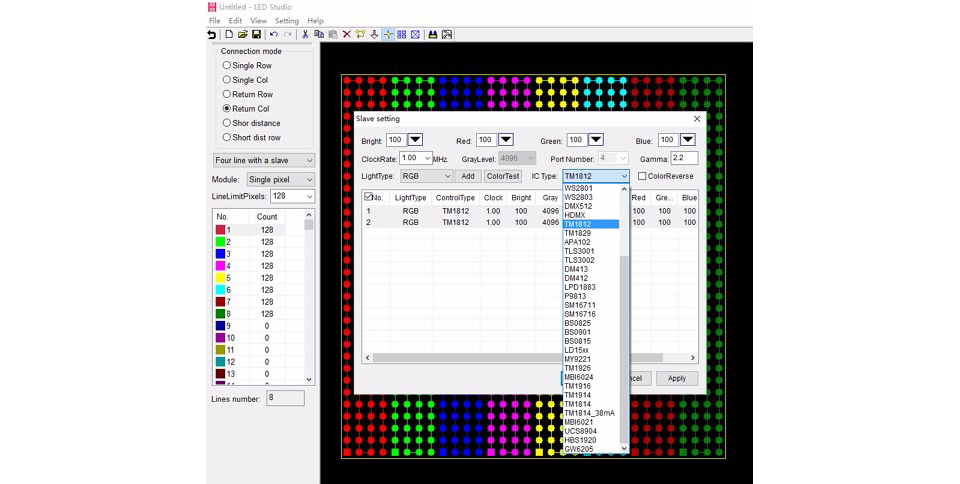

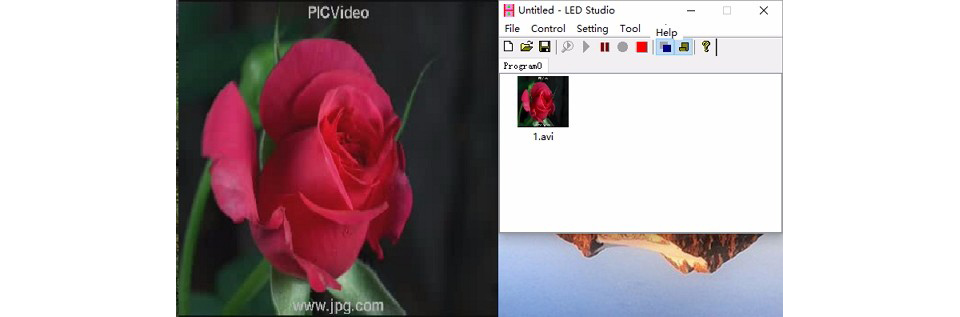

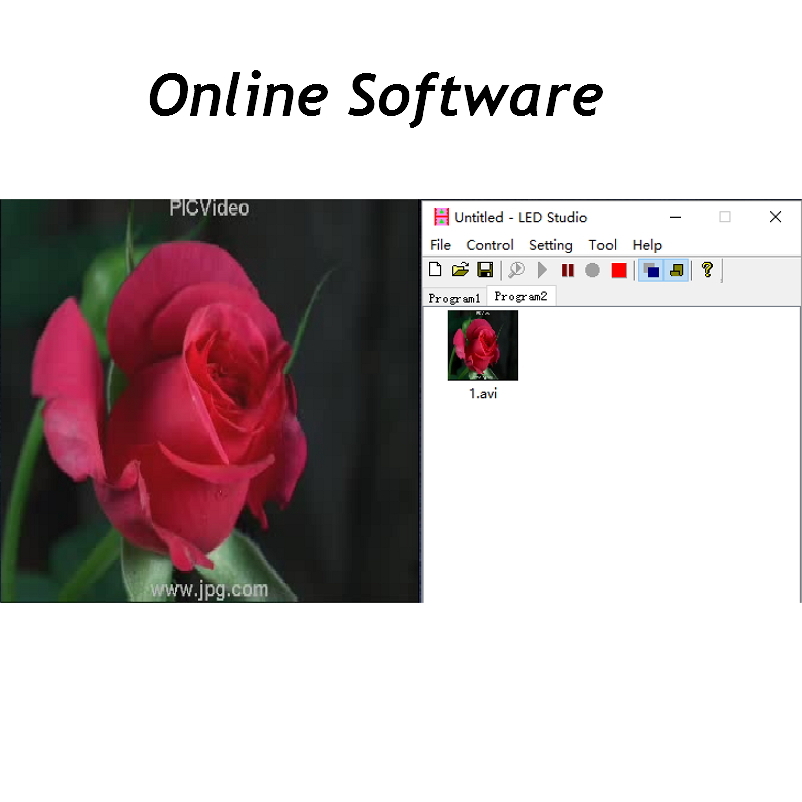

(6). Online software is "LED Studio software" and offline software is “LED Build Software”.
2. Supported Driver Chips
LPD6803, LPD8806, LPD6813, LPD1882, LPD1889, LPD6812, LPD1886; DMX512, HDMX, APA102, P9813, DZ2809, SM16716; UCS6909, UCS6912, UCS1903, UCS1909, UCS1912; WS2801, WS2803, WS2811, WS2812, INK1003; TM1812, TM1809, TM1804, TM1803; BS0901, BS0902, BS0815, LY6620, BS0825; LD1510, LD1512; TLS3001, TLS3002; DM413, DM114, DM115, DM13C, DM134, DM135, DM136; MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595, 6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012 etc.
Note: H801RA supports more than the chips listed above(some chips have the same sequence diagram, for example UCS2903 has the same sequence diagram with UCS1903, H801RA supports them all).
3. Software download link
5. Connection Diagram

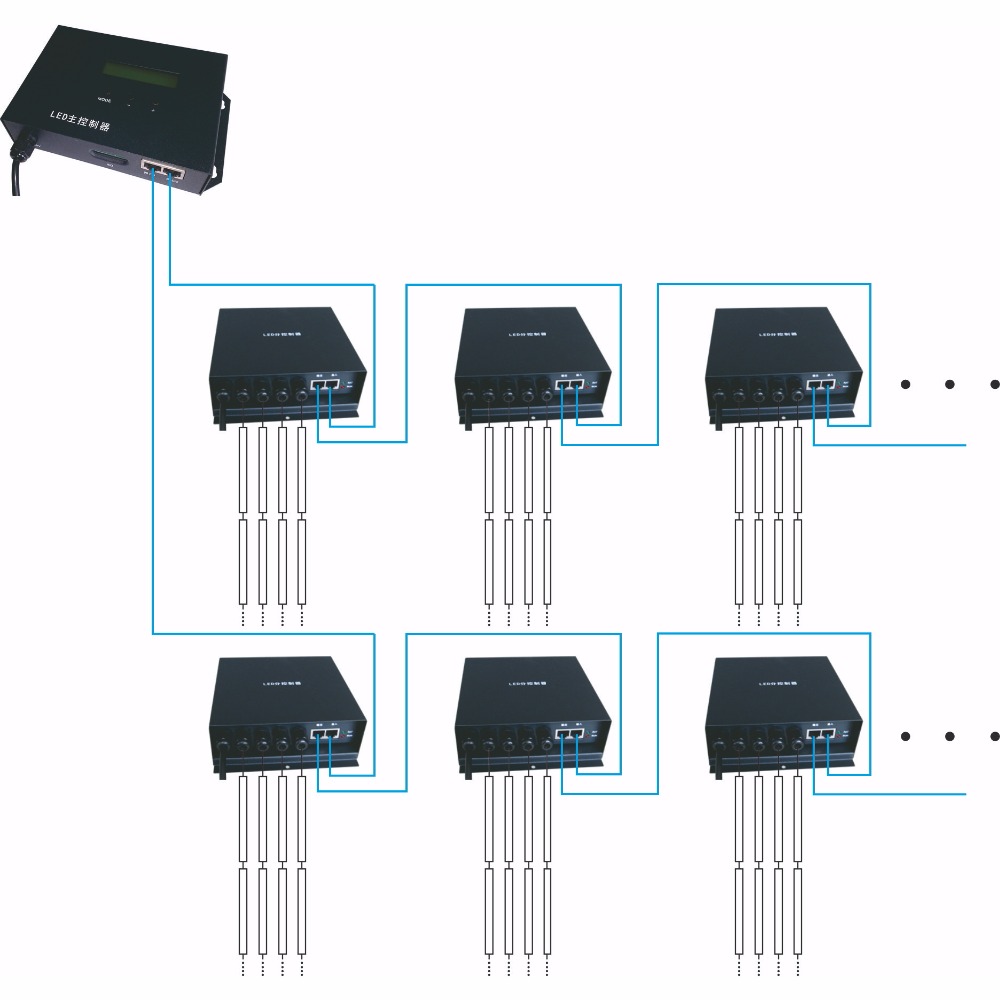

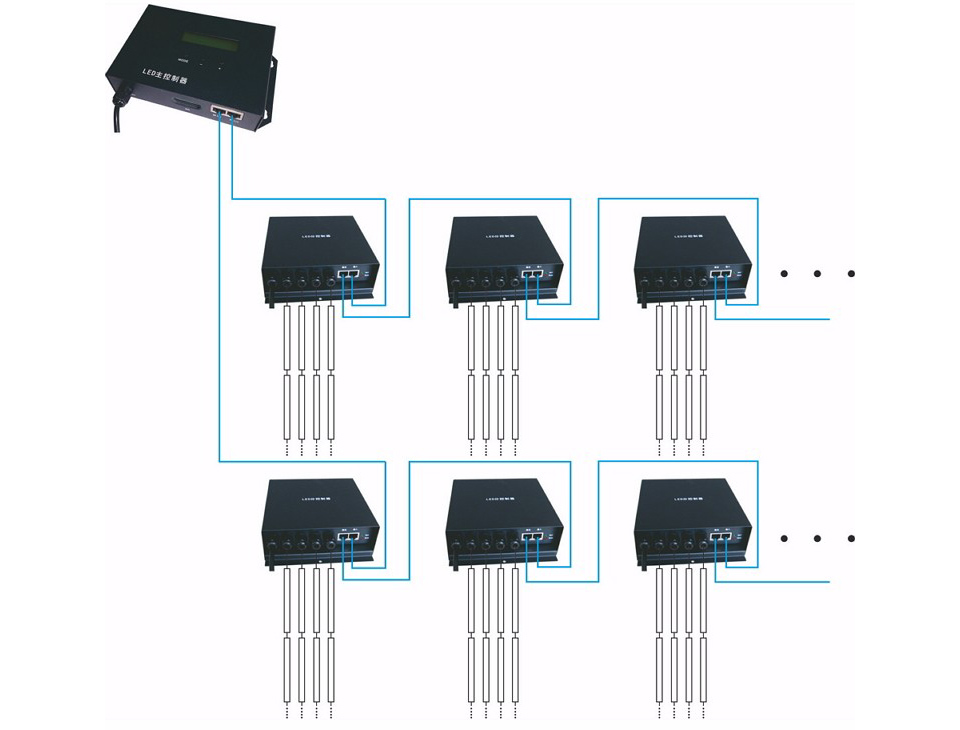

Controlled by Master controller(the blue line is crossover network cable)

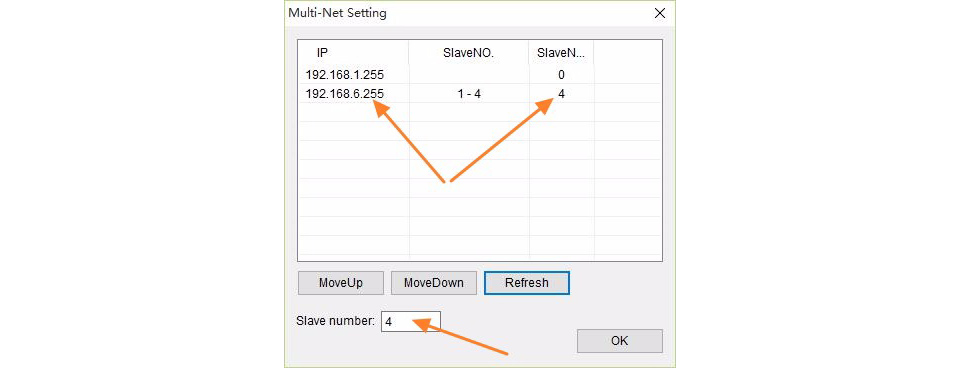

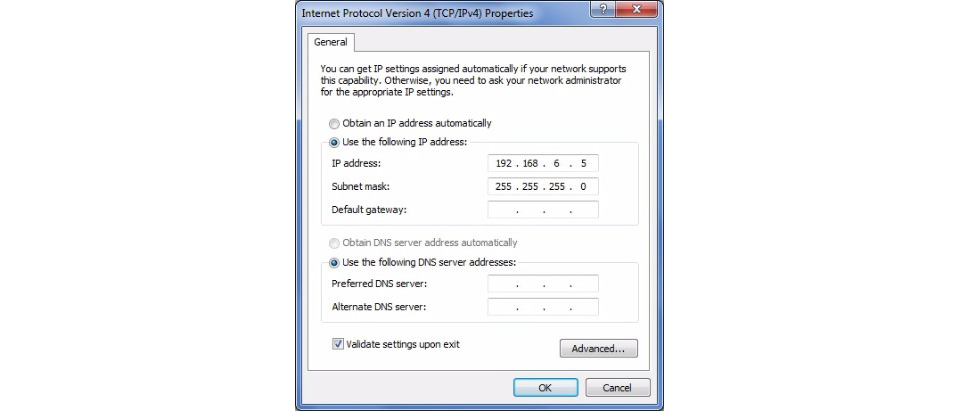

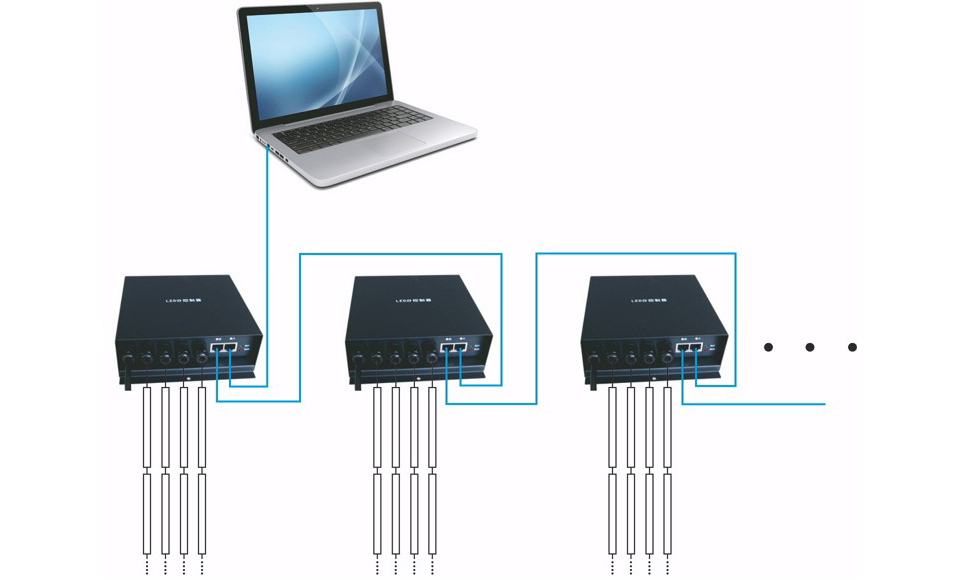

Controlled by PC

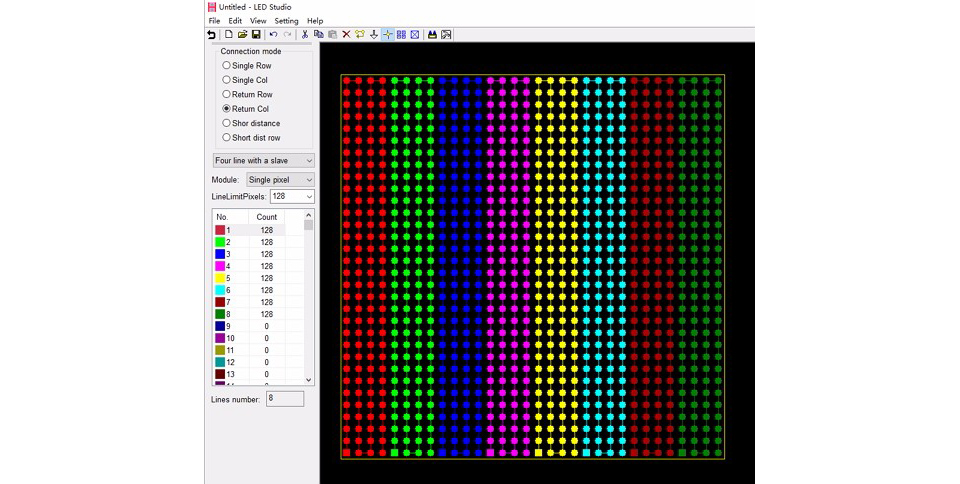

6. Brief Software Introduction

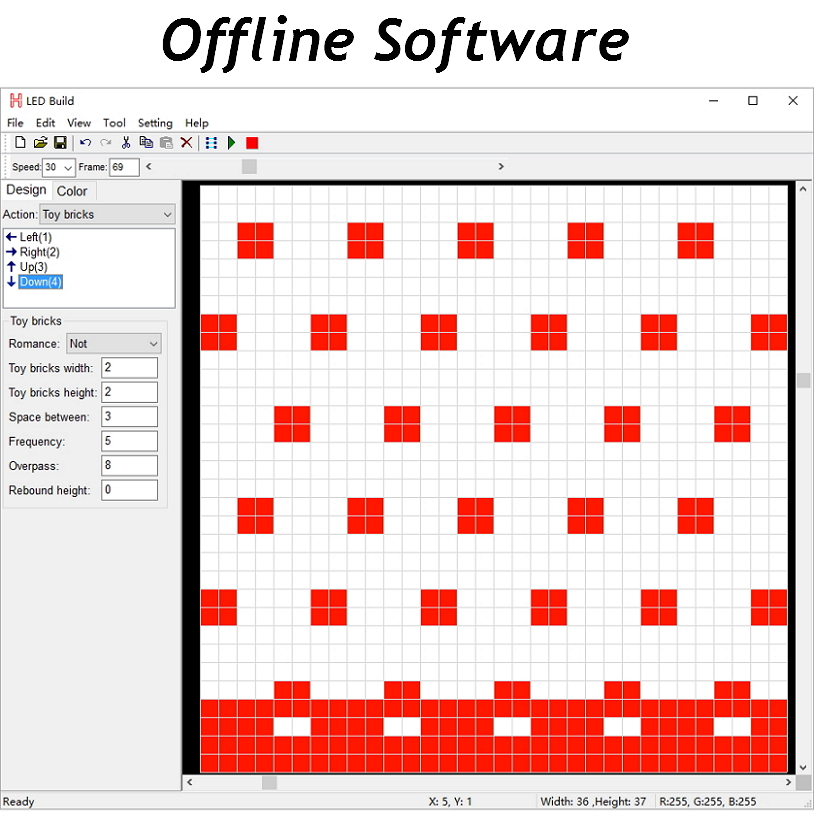

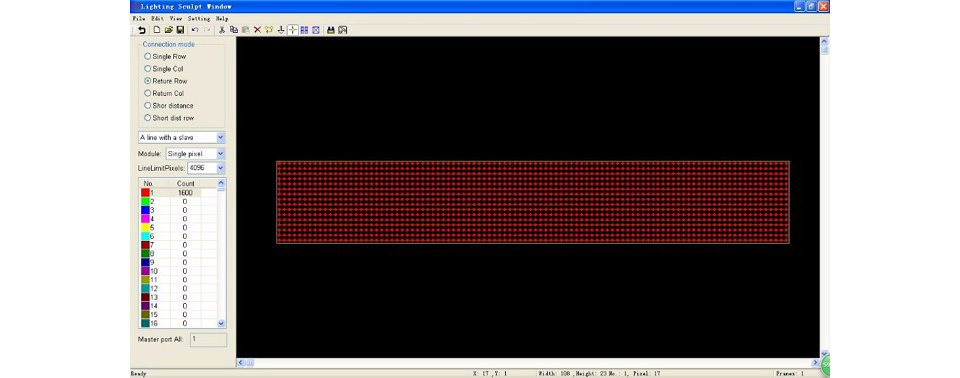

LED Build(when controlled by master controller):
(3). Effect Making

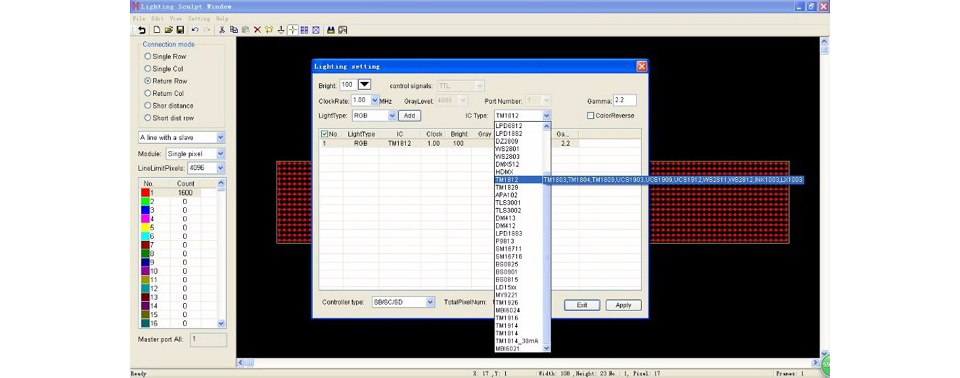

(3). Light Setting

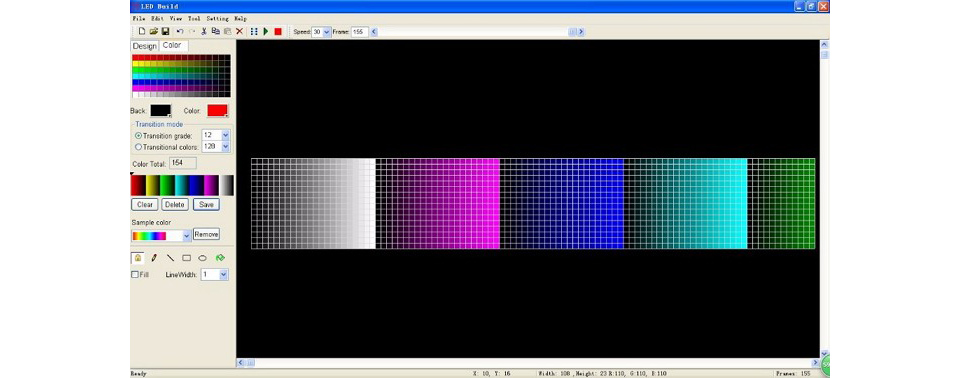

(4). Effect Making
Input Voltage: Customized
Power Consumption: 1W
Drive Pixels Number: 3412
Dimension: L163 x W155 x H54
Carton Size: L205 x W168 X H69
