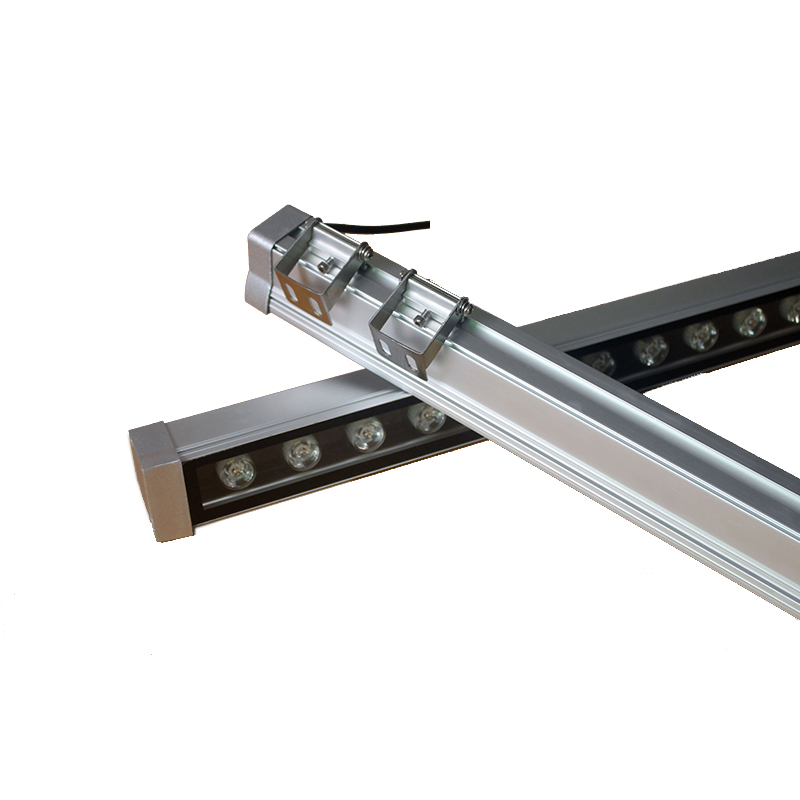

AC85-220V 9/12/15/18/24/30/36W 46X46mm High Power Single/Full color UCS1903 RGB Outdoor Waterproof IP65 Aluminum LED Wall Wash Landscape Lighting
1. Highlight 5050 wafer LED chip: High transmittance PMMA lens, low energy consumption, long life, low light decay.
2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line.
3. Waterproof outlet: The outlet adopts high-quality rubber pad, 705 glue is tightly attached to the pad and rotated to exert pressure, so as to achieve better tightness and higher protection level.
4. Luminous effect of the LED Wall Wash Lighting is single color, single color has Warm White/Daylight White/Yellow, it usually uses for lighting.
5. Stainless steel screw: The LED Wall Wash Lighting uses high-quality stainless steel screw, good stability, long - lasting rust.

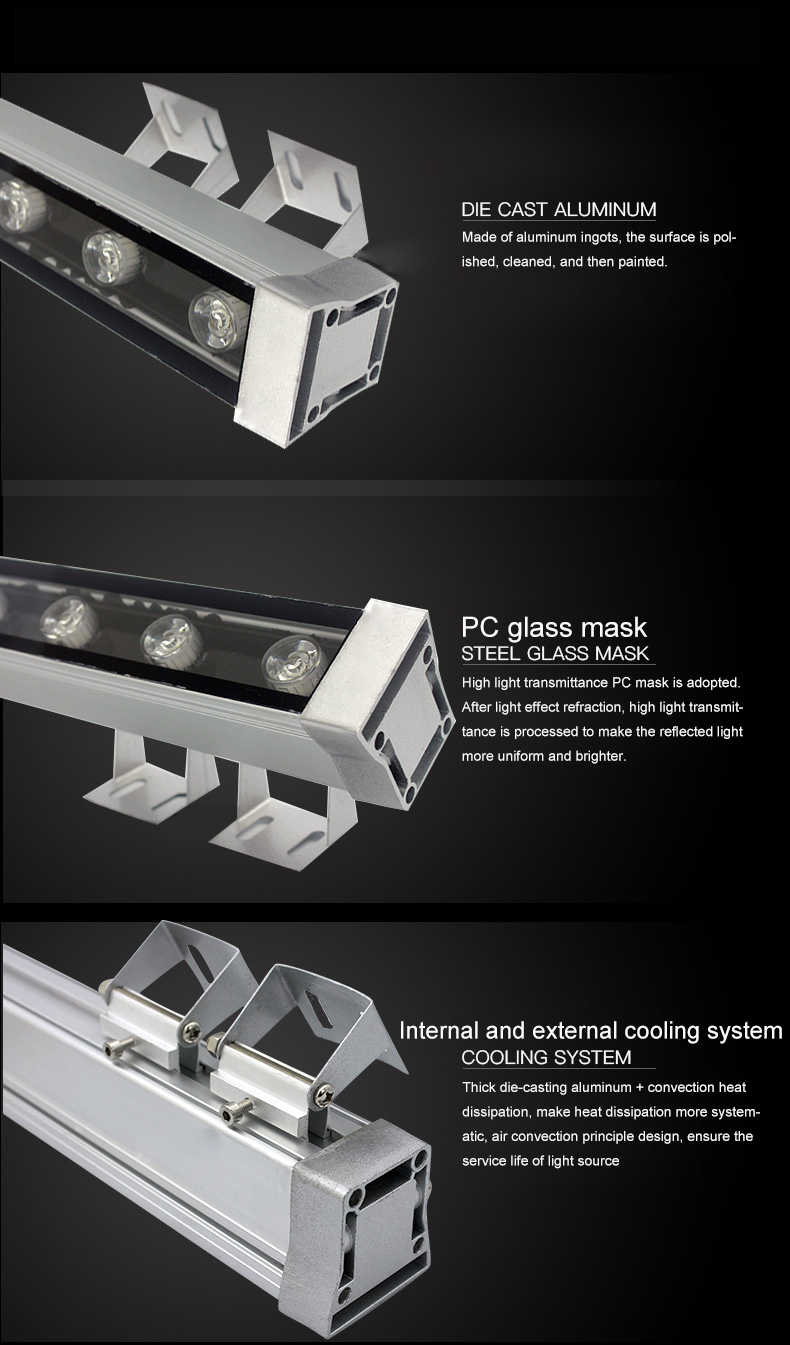

6. PC glass mask: High light transmittance PC mask is adopted by this LED Wall Wash Lighting. After light effect refraction, high light transmittance is processed to make the reflected light more uniform and brighter.

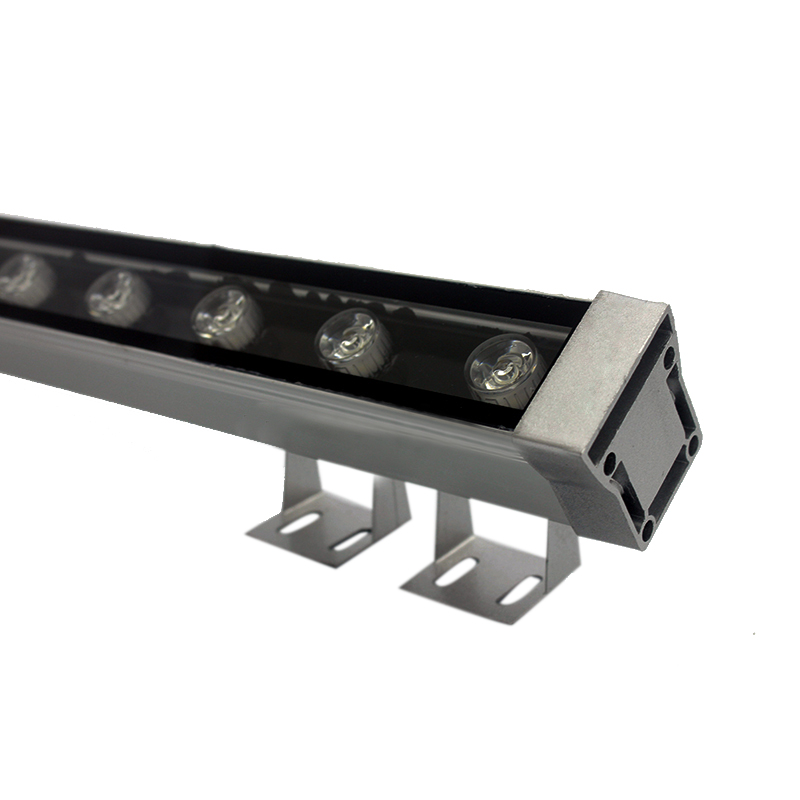

6. Thickened aluminum bracket: Simple installation and easy to use. Made of high purity aluminum material, the bracket is corrosion resistant and crack resistant, which can protect the safety of lamps and has the function of adjustable lighting direction.
7. Internal and external cooling system: Thick die-casting aluminum + convection heat dissipation, make heat dissipation more systematic, air convection principle design, ensure the service life of the light source.
Standards and Certifications
LED Item: 9/12/15/18/24/30/36W Aluminum Lens LED Wall Wash Lighting
LED Model: QCY-XQ-11
LED Type: SMD LED Chips
Size of chip: 5050 SMD
Input voltage: AC85-220V
LED Lighting power: 9/12/15/18/24/30/36 Watt/ piece
Lamp bead quantity: 9/12/15/18/24/30/36 LED

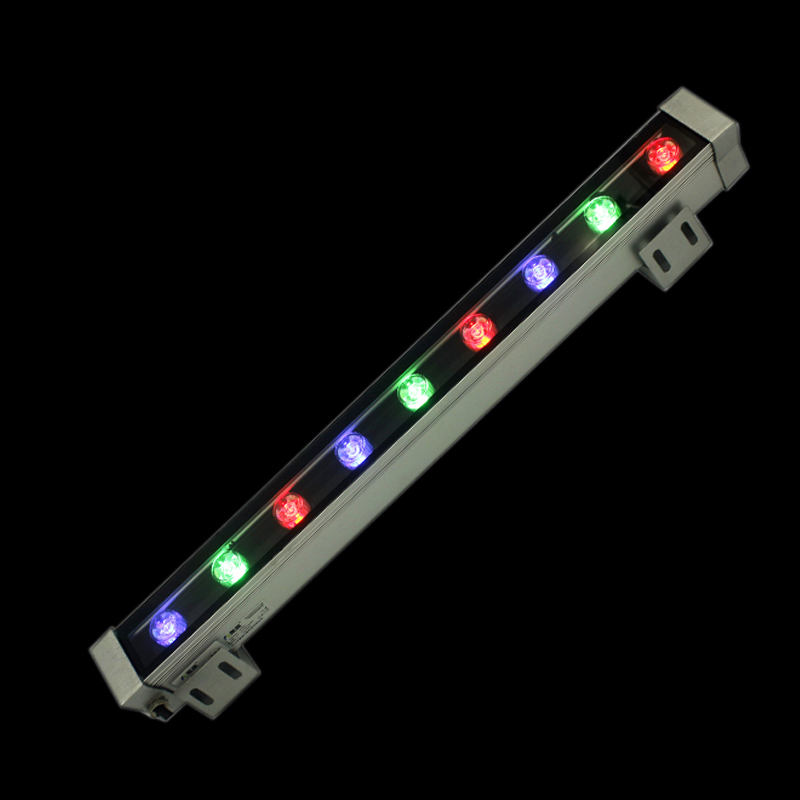

Light Color: Warm White/Daylight White/Yellow/Red/Green/Blue/Purple/UCS1903
Fixture Dimensions: 46x46x1000mm (1.81''x1.81''x39.37'')
Brightness: high brightness
Grey level: 256
Lighting angle: 30
Color temperature: 2700-6500K
Working temperature: -30~40°C

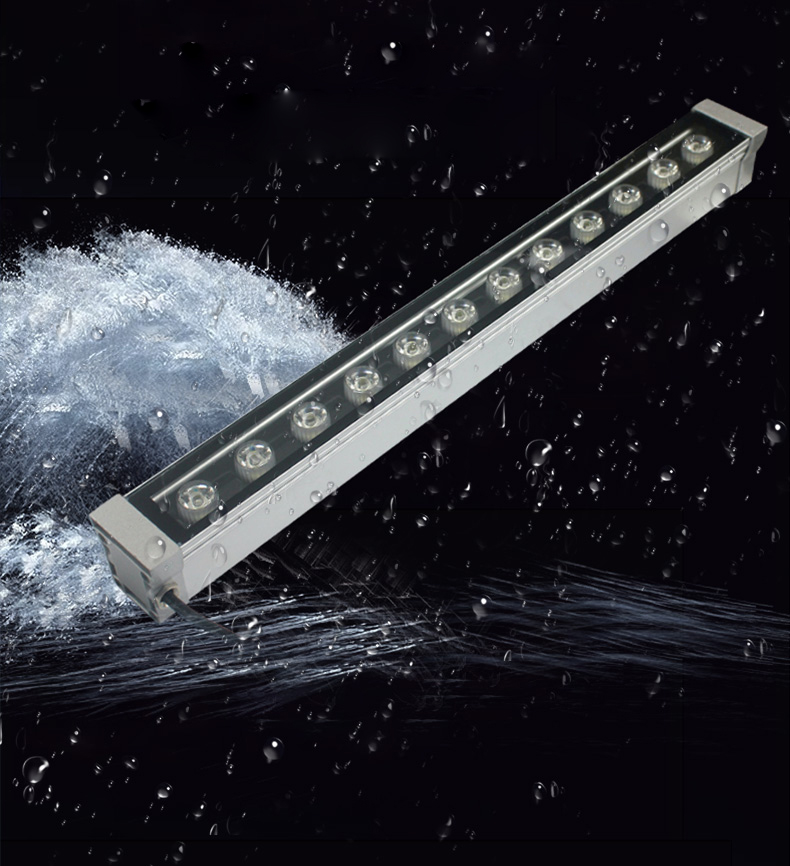

Waterproof Rating: IP65
Control type: External control
Fixture Material: Aluminum
Certifications: RoHS, CE
Power wiring diagram
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
three-dimensional light-emitting word
Channel letters lighting
Light boxes lighting

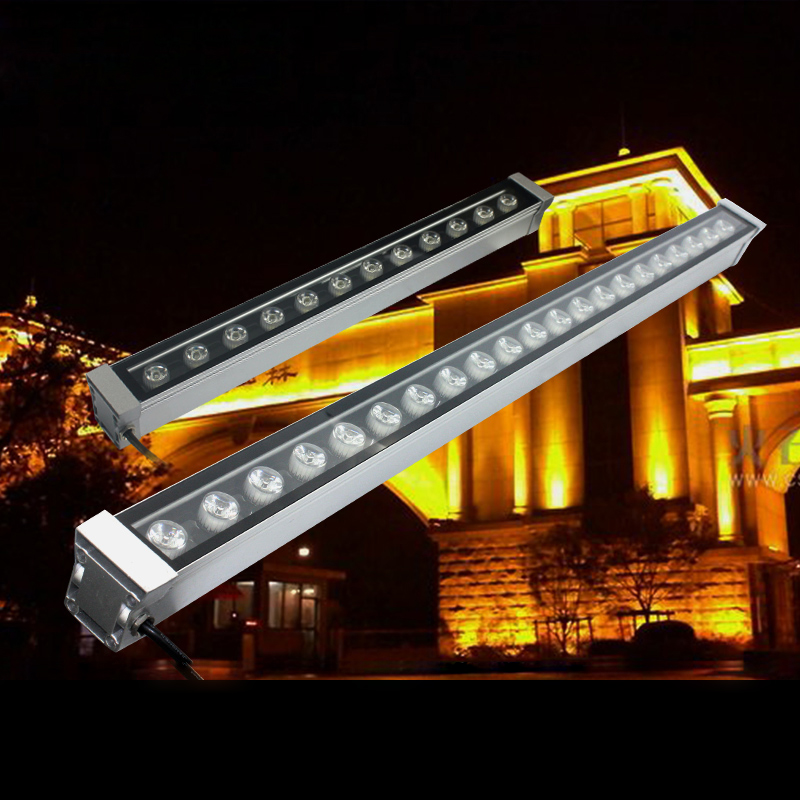

Landscape layout lighting
Stage decoration lighting
Cove LED lighting
Edge lit signs
Off grid lighting
