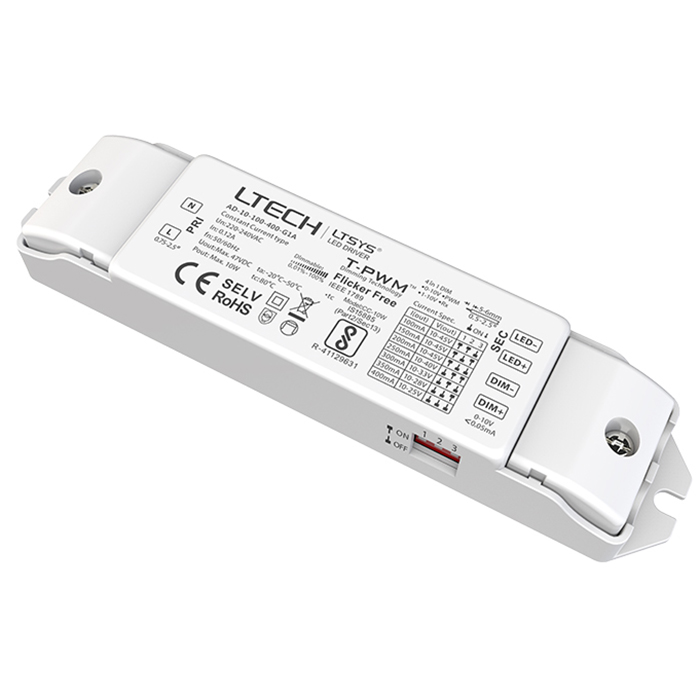

AD-10-100-400-G1A 10W 100-400mA Constant Current Dimmable Driver
Dimming interface:0-10V (1-10V/10VPWM/RX).
Automatic recognition of 0-10V, 1-10V input signal.
T-PWM digital dimming, present a perfect visual experience.
0-100% flicker-free,High frequency exemption level.
Innovative thermal management technology, intelligent power life protection.
Dimming range: 0~100%, LED start at 0.01% possible.
With soft-on and fade in function, visual more comfortable.
Over load / Short circuit / Over-heat protection, recover automatically.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Up to 30000-hour life time
Output Voltage: DC10-42V
Max Output Voltage: DC26V

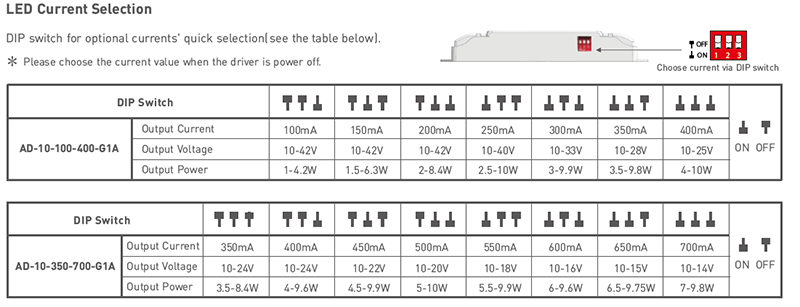

Output Current: 100-400mA
Output Power Range: 1W~10W
Dimming Range: 0~100%, 0.01% dimming depth.
PWM Dimming Frequency: ≤3600Hz
Current Accuracy: ±5%
Dimming Interface: 0-10V(1-10V/10VPWM/RX)
Input Voltage: 220-240Vac
Input Current: 230Vac≤0.12A
Anti Surge: L-N: 1kV
Leakage Current: <0.5mA/230Vac
Working Temperature: ta: -20°C ~ 50°C tc: 80°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temp., Humidity: -40 ~ 80°C, 10~95%RH
Temp. Coefficient: ±0.03%/°C(0-50°C)
