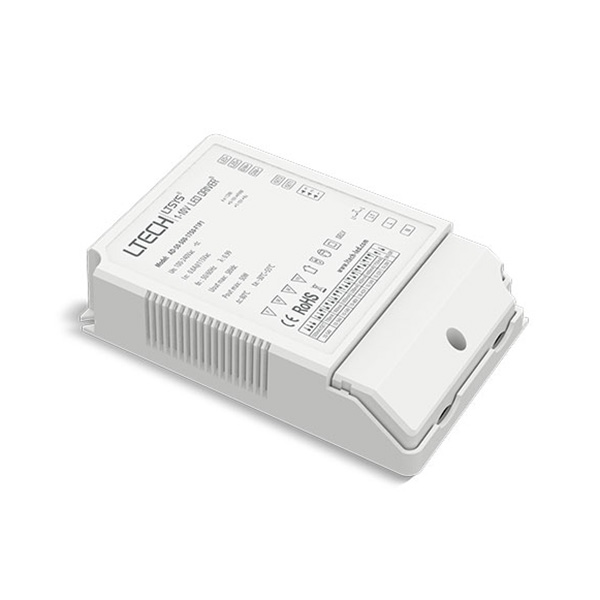

AD-50-500-1750-F1P1 50W 500-1750mA (100-240Vac) LED Intelligent Driver

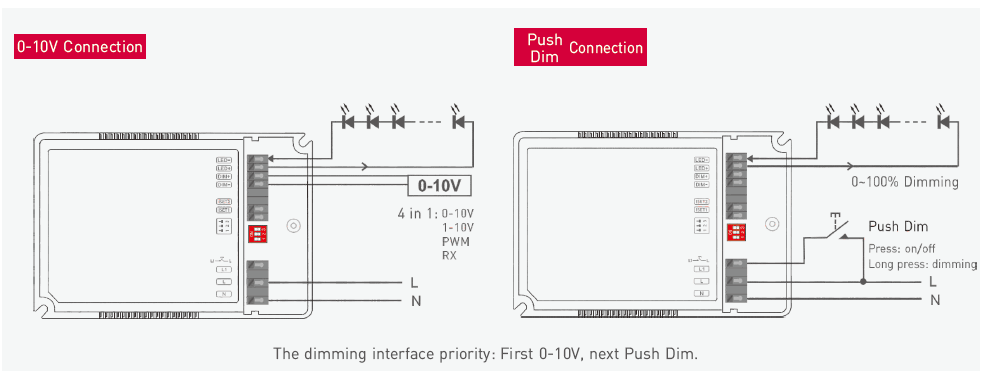

1、Dimming interface:0-10V(1-10V/PWM/RX), Push DIM
2、Built-in high-performance MCU, the dimming curve can be customized.
3、PWM digital dimming, no alter LED color rendering index.
4、Dimming range: 0~100%, LED start at 0.1% possible.
5、Non-load output voltage 0V to prevent damages to LED caused by poor contact.
6、Multi-current & wide voltage, suitable for different power LED.
7、Short circuit / Over-heat / Overload / Non-load protection.
8、Class 2 power supply. Full protective plastic housing.
9、Compliant with Safety Extra Low Voltage standard.
10、Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Dimming interface 0-10V 1-10V 10VPWM OR PUSH DIM
Dimming range: 0~100%, LED start at 0.1% possible.
Input voltage 100-240Vac ±10%
Power factor PF>0.99/115Vac, PF>0.95/230Vac, at full load
Current Accuracy ±3%
Output voltage 10-54VDC
CC output: 500mA-1750mA
Output power 5W-50W
working temperature tc: 80°C ta: -30°C ~ 55°C
Package Size 135×90×35mm(L×W×H)
Weight (G.W) 320g±10g
