CV Power Repeater DIN-AMP-5A
LED power repeater is suitable for all of our company’s power-output style controllers to expand power output, it supports PWM control and can connect one to three times more LEDs by adding one more power repeater, and unlimited power repeaters can be connected together theoretically.

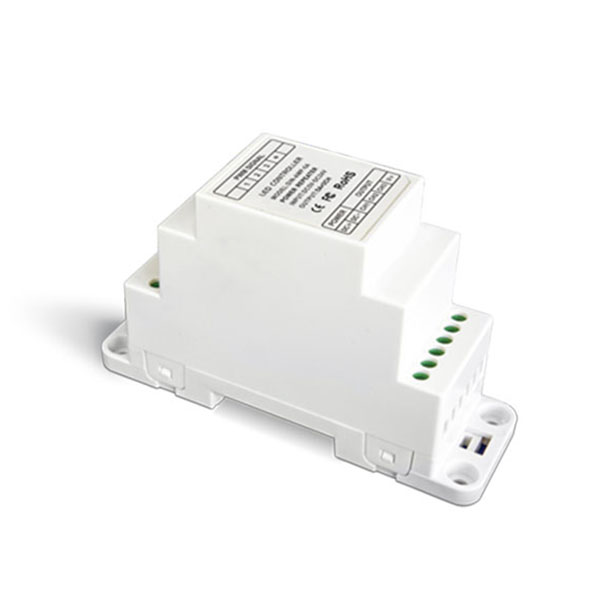

DIN-AMP-5A CV Power Repeater(DIN rail/Screw dual-use)
Input signal: PWM
Input voltage :DC5V~DC24V
Max load current :5A ×3CH Max 15A
Max output power :75W/180W/360W(5V/12V/24V)
Output signal :CV PWM
working temperature :-30℃~55℃

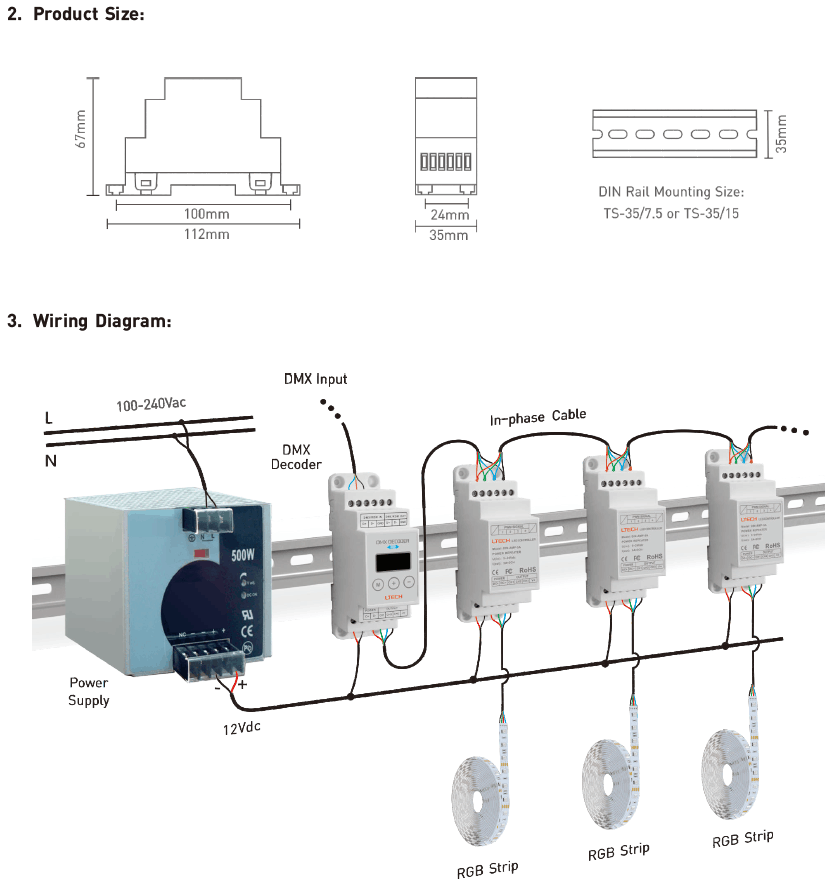

Package Size: L114×W37×H70(mm)
Weight (G.W) :120g
