LT-3060S DC5-24V 5A × 3CH LED Constant Voltage Power Repeater

Model: LT-3060S Review stars 0.0 (0 Reviews) Various options in stock
Price$25.98
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Lights Guide

Product Information

The LT-3060S constant voltage power repeater expands the load capacity of PWM-driven RGB LED strip installations without signal delay or color mismatch. Designed for common-anode low-voltage configurations, this unit accepts a wide DC 5V to 24V input and delivers up to 5A per channel across 3 independent output channels (15A total). When an installation exceeds the output rating of primary RGB LED controllers, adding an LT-3060S allows installers to double the operational run length using an auxiliary LED power supply. The unit supports an input PWM frequency range of 200Hz to 2000Hz, preserving smooth dimming curves and synchronized dynamic color changes across extended runs. Built-in safeguards protect against over-current, output short circuits, and reverse polarity, ensuring dependable operation in architectural cove runs, hospitality accents, and commercial displays.

LT-3060S DC5-24V 5A × 3CH LED Constant Voltage Power Repeater - photo 2

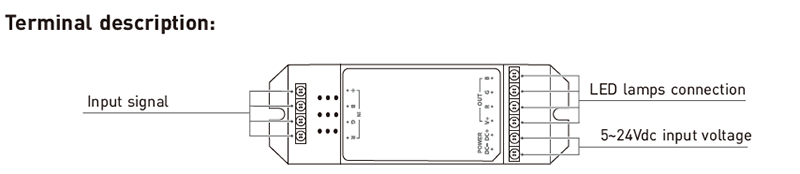

Terminal connection layout showing PWM signal input, DC power feed, and LED load ports
LT-3060S DC5-24V 5A × 3CH LED Constant Voltage Power Repeater - photo 3

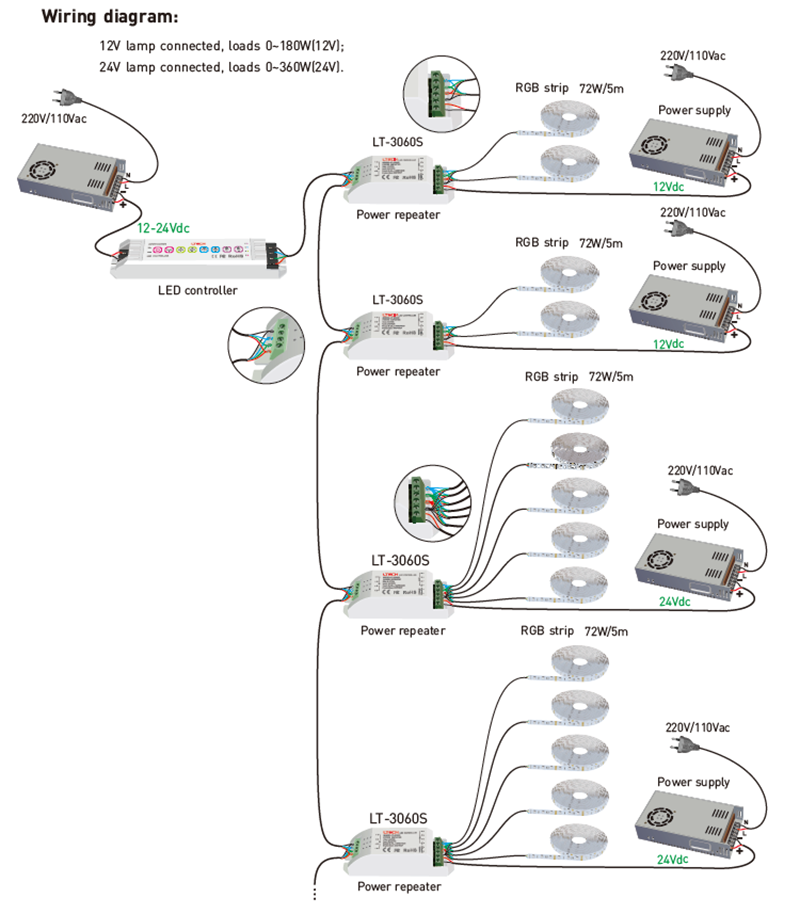

System wiring diagram for synchronous RGB LED strip expansion across multiple power supplies

Key Features

Wide DC5-24V Operating Range

Matches standard DC 5V, 12V, and 24V architectures to accommodate diverse low-voltage LED strip lights.

5A Per Channel Output

Provides 3 individual channels rated at 5A each, yielding up to 15A continuous output and 360W at 24V DC.

High-Speed PWM Reception

Receives PWM control frequencies between 200Hz and 2000Hz to maintain flicker-free, synchronous dimming.

Theoretical Unlimited Expansion

Cascades across multiple auxiliary repeaters in parallel or daisy-chain layouts for large architectural runs.

Triple Circuit Protection

Incorporates auto-recovering over-current protection, short-circuit protection, and input reverse-connection defense.

Solid Metal Housing

Enclosed in a durable metal chassis engineered for passive thermal dissipation between -30°C and 55°C.

Technical Highlights

  • Common anode (+) circuit topology compatible with 4-pin constant-voltage RGB LED strip lights.
  • Delivers 0W to 75W total capacity at 5V, 0W to 180W at 12V, and 0W to 360W at 24V operation.
  • Screw terminal barrier blocks provide secure wire clamping for 20 AWG to 14 AWG conductors.
  • Zero detectable latency across cascaded units ensures seamless dynamic chase and fade effects.
  • Passive convective cooling design eliminates noisy internal cooling fans and moving failure points.
LT-3060S DC5-24V 5A × 3CH LED Constant Voltage Power Repeater - photo 1

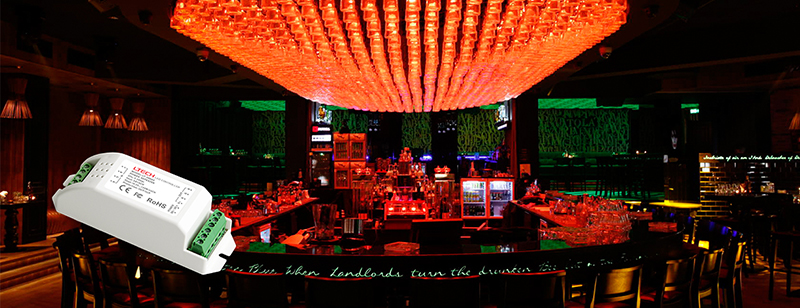

LT-3060S 3-channel constant voltage LED power repeater front perspective

Product Specifications

ParameterDetails
Product ModelLT-3060S
Product TypeConstant Voltage LED Power Repeater
Input Voltage RangeDC 5V – DC 24V
Output Current5A × 3CH (15A Maximum total)
Output Power @ 5V0 – 75W (0 – 25W per channel)
Output Power @ 12V0 – 180W (0 – 60W per channel)
Output Power @ 24V0 – 360W (0 – 120W per channel)
Input Signal TypePWM (Pulse Width Modulation)
PWM Signal Frequency200Hz – 2000Hz
Connection TypeCommon Anode (V+)
Output Channels3 Channels (Red, Green, Blue / V+, CH1, CH2, CH3)
Protection MechanismsOver-current, Short-circuit, Reverse polarity
Operating Temperature-30°C – 55°C (-22°F – 131°F)
Product Dimensions121 × 39 × 39 mm (4.76 × 1.54 × 1.54 in)
Package Dimensions123 × 42 × 42 mm (4.84 × 1.65 × 1.65 in)
Gross Weight210 g (7.41 oz)
Housing MaterialAluminum alloy chassis
LT-3060S DC5-24V 5A × 3CH LED Constant Voltage Power Repeater - photo 4

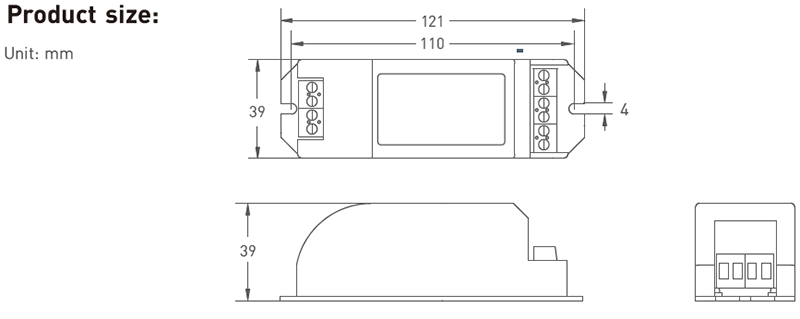

LT-3060S dimensional outline drawing with 121mm mounting length

Application Scenarios

Extended Perimeter Architectural Cove Lighting Allows long runs of constant-voltage RGB LED strip lights to circle entire hotel lobbies or retail perimeters. Adding repeaters prevents dimming and color shift caused by long DC cable distances.
Commercial Restaurant & Hospitality Accents Powers multi-zone under-bar, soffit, and wall-wash lighting fixtures from a single primary master controller. Maintains color matching across high-power installations spanning separate room sections.
Large-Scale Exhibition & Trade Show Displays Enables rapid expansion of temporary and permanent display truss lighting. Operators can distribute separate localized power sources while sharing one central PWM control signal.
Custom Cabinet & Display Case Installations Facilitates clean wire management when lighting arrays of showcases that draw more total current than standard mini controllers can manage on their own.

How to Wire & Install This LED Power Repeater

  1. Disconnect all AC mains power from your LED power supply units before making any wiring connections.
  2. Connect the PWM signal output from your primary RGB master controller (V+, R-, G-, B-) to the INPUT signal terminals on the LT-3060S.
  3. Attach a dedicated DC 5V, 12V, or 24V power source to the POWER INPUT terminals (V+ and V-), verifying that the voltage matches your LED strip.
  4. Connect the downstream RGB LED strip conductors to the LED OUTPUT screw terminals, ensuring the common positive (V+) and individual negative channel wires align accurately.
  5. To expand further, link the signal output of the current section to the input of an additional LT-3060S unit with its own localized power feed.
  6. Inspect all terminal screws for mechanical tightness, verify polarity, and re-energize the AC power to test signal synchronization and dimming response.
⚠ Precautions
  • Ensure the repeater input voltage matches the rated operating voltage of the connected LED strip lights exactly.
  • Do not exceed the maximum current limit of 5A per channel or 15A total across all three channels.
  • Calculate the total led strip light power consumption to ensure your auxiliary power supply has at least a 20% operating safety margin.
  • Keep signal wiring separated from high-voltage AC lines to prevent electromagnetic interference from distorting PWM pulses.
  • Install the unit in a well-ventilated dry indoor location away from moisture and direct heat sources.

What's in the Box

  • ✓1 × LT-3060S 3-Channel LED Power Repeater
  • ✓1 × User Wiring & Installation Manual

⇩ Downloads & Documents

PDFLT-3060S

Frequently Asked Questions

Q: What does an LED power repeater do?

A:An LED power repeater receives the low-voltage PWM output signal from a master dimmer or RGB controller and replicates it using an auxiliary power source. This enables synchronized expansion of longer LED strip runs without overloading the master unit.

Q: What is the primary difference between an amplifier and a repeater?

A:In low-voltage LED installations, the terms 'repeater' and 'amplifier' are used interchangeably. Both receive a control signal and regenerate it using fresh power from an auxiliary power supply to maintain brightness and signal fidelity.

Q: Can I use the LT-3060S with single-color or tunable white LED strips?

A:Yes. While designed with 3 channels for RGB lighting, you can utilize the channels to power up to three single-color runs or split channels for dual-white CCT strips, provided total current per channel stays under 5A.

Q: Can I connect repeaters with different voltages on the same control line?

A:The LT-3060S handles DC 5V to 24V, but each repeater requires an auxiliary power supply matching the exact voltage of the LED strip connected to its output terminals. Never connect 12V strips to a 24V power supply.

Q: How many LT-3060S power repeaters can be connected together?

A:Theoretically, an unlimited quantity of repeaters can be connected in parallel or daisy-chained, provided each repeater receives a clean PWM signal and is paired with an adequately sized power supply.
