Product Information
The Ltech LT-3010-8A is a high-performance, single-channel Constant Voltage (CV) power repeater designed to solve the common challenges of large-scale LED lighting installations. When your project exceeds the power capacity of your primary controller or involves long LED strip runs susceptible to voltage drop, the LT-3010-8A acts as a crucial signal and power booster. It receives the PWM (Pulse-Width Modulation) signal from your controller and regenerates it with fresh power from a secondary power supply. This ensures all sections of your lighting maintain uniform brightness and respond perfectly to dimming and color commands, preserving signal integrity across your entire system. With a robust 8A output, it's the ideal solution for expanding single-color, CCT, or RGB lighting systems without compromise.
Key Features
High 8A Current Capacity
Provides a powerful 8A single-channel output, capable of driving up to 96W at 12V or 192W at 24V.
Broad Voltage Compatibility
Operates on a wide input voltage range of DC 12V to 24V, making it suitable for most standard constant voltage LED strips.
Perfect Signal Synchronization
Receives and re-transmits PWM control signals flawlessly, ensuring all connected LEDs are perfectly synchronized with the master controller.
Reliable and Safe Operation
Engineered for stability with a wide working temperature range of -30℃ to 55℃, ensuring consistent performance in various environments.
Compact and Easy to Install
Features a slim, lightweight design with secure screw-down terminals for straightforward integration into any lighting setup.
Product Specifications
| Parameter | Details |
|---|---|
| Model | LT-3010-8A |
| Product Type | Constant Voltage (CV) Power Repeater |
| Input Signal | PWM (Pulse-Width Modulation) |
| Input Voltage | DC 12V ~ 24V |
| Max Load Current | 8A × 1 Channel |
| Max Output Power | 96W (12V) / 192W (24V) |
| Output Signal | Constant Voltage PWM |
| Working Temperature | -30℃ ~ 55℃ |
| Dimensions (L×W×H) | 135 × 30 × 20 mm |
| Package Size (L×W×H) | 140 × 34 × 23 mm |
| Gross Weight | 75g |
Application Scenarios

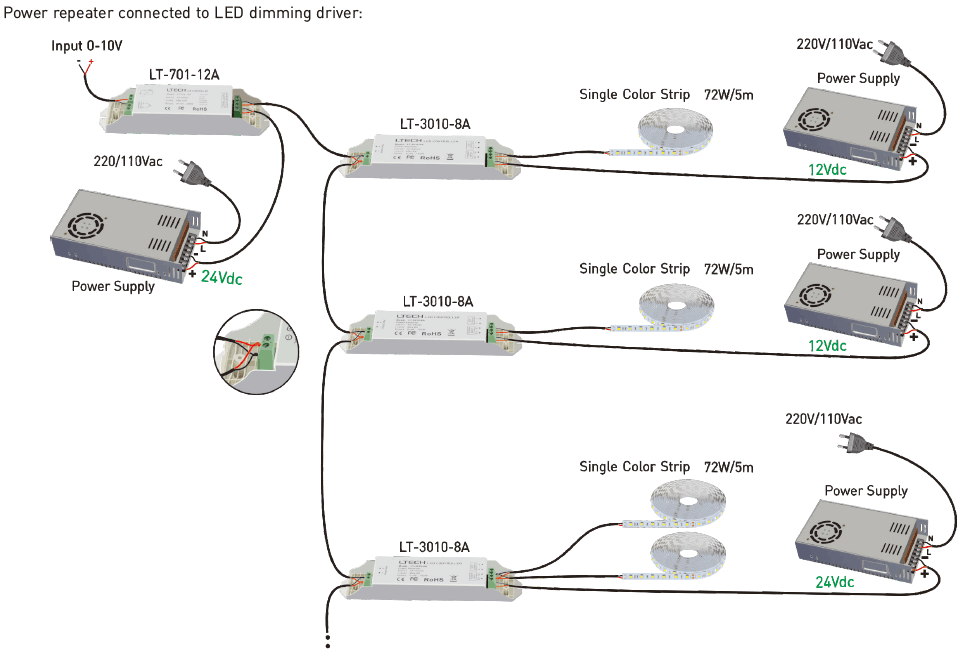

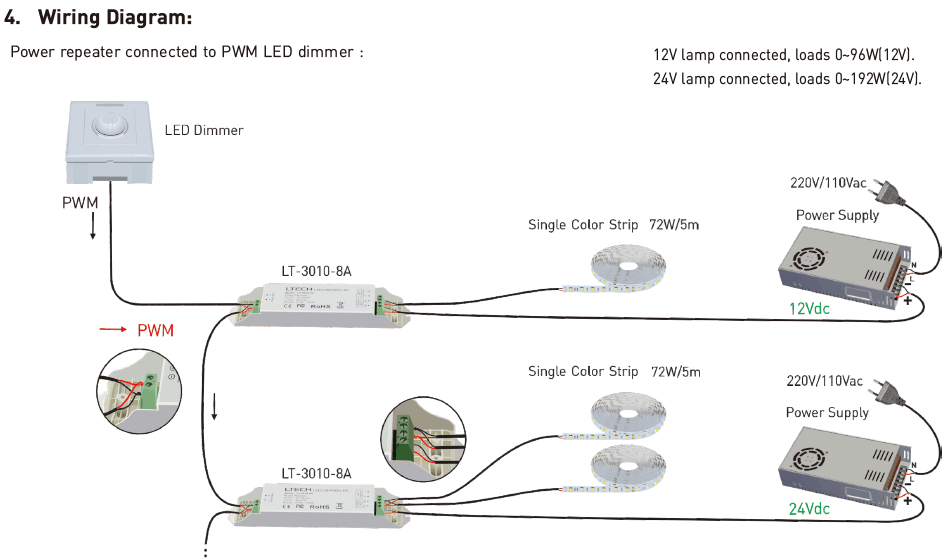

How to Control & Use This Repeater
- Ensure all power is disconnected before beginning installation.
- Connect the PWM signal output from your main LED controller to the 'Signal INPUT' terminals on the repeater.
- Connect a secondary DC 12V or 24V power supply to the 'Power INPUT' V+ and V- terminals. The voltage must match your LED strips.
- Connect the additional LED strips you wish to power to the 'OUTPUT' V+ and V- terminals on the repeater.
- Double-check that all connections are secure and that polarity (+ to +, - to -) is correct for all power and signal lines at each power terminal.
- Restore power to the main controller and the secondary power supply. Test the system to confirm that all strips dim and change color in sync.
- Always use a power supply with a voltage that matches your LED strips (12V or 24V).
- Do not exceed the maximum load of 8A for the repeater. If your load is higher, use multiple repeaters.
- This is a Constant Voltage (CV) repeater. Do not use it with Constant Current (CC) LED products.
- Ensure adequate ventilation around the repeater to prevent overheating.
- For detailed specifications and diagrams, refer to the datasheet in the Downloads section.
What's in the Box
- ✓1x Ltech LT-3010-8A CV Power Repeater
⇩ Downloads & Documents
PDFLT-3010-8A
Frequently Asked Questions
Q: What is the main purpose of an LED power repeater?
A:An LED power repeater, or signal amplifier, is used to extend the control capability of a single LED controller over a larger quantity of LED strips or longer distances than the controller could handle on its own.
Q: Can I use the LT-3010-8A with RGB or CCT LED strips?
A:This is a single-channel repeater. For multi-channel strips like RGB, you would need a separate LT-3010-8A for each color channel (e.g., three units for one RGB strip) or choose a multi-channel repeater model.
Q: Does this repeater work with DMX controllers?
A:Yes, it works with any controller system that outputs a PWM signal. If your DMX decoder provides a PWM output for your LED strips, this repeater can successfully amplify that signal.
Q: How do I calculate the power supply needed for the repeater?
A:The power supply connected to the repeater should be sized to handle the total wattage of the LED strips connected to the repeater's output, with a 20% overhead for safety and efficiency.
Q: Will adding this repeater cause a delay in the lighting response?
A:No, the LT-3010-8A is designed for high-speed signal regeneration and will not introduce any noticeable delay or lag. All connected strips will respond instantly and in sync.
