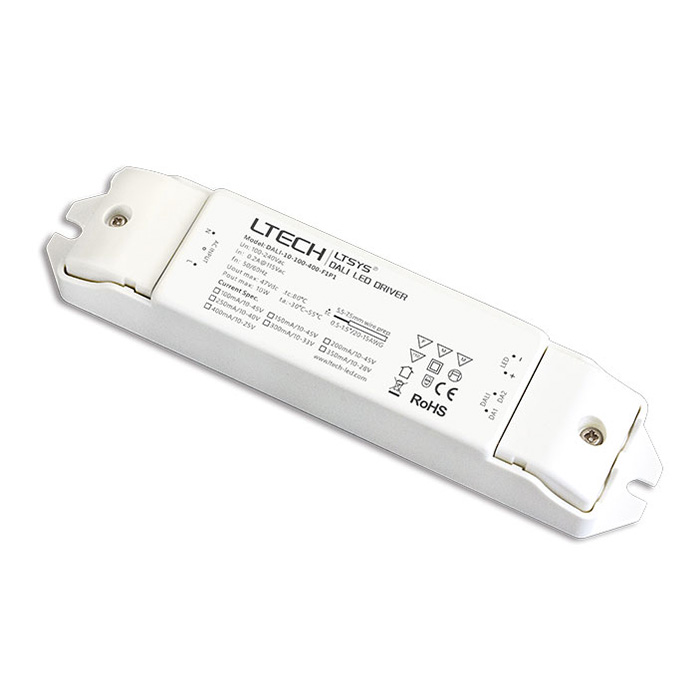

DALI-10-100-400-F1P1 10W 100-400mA (100-240Vac)
1、Dimming interface: DALI
2、PWM digital dimming, no alters LED rendering index.
3、Dimming range: 0~100%, LED start at 0.1% possible.
4、DALI dimming curve: Liner curve or logarithmic curve.
5、Short circuit / Over-heat / Overload protection.
6、Class 2 power supply. Full protective plastic housing.
7、DALI bus standard: IEC62386-101, 102, 207.
8、Compliant with Safety Extra Low Voltage standard.

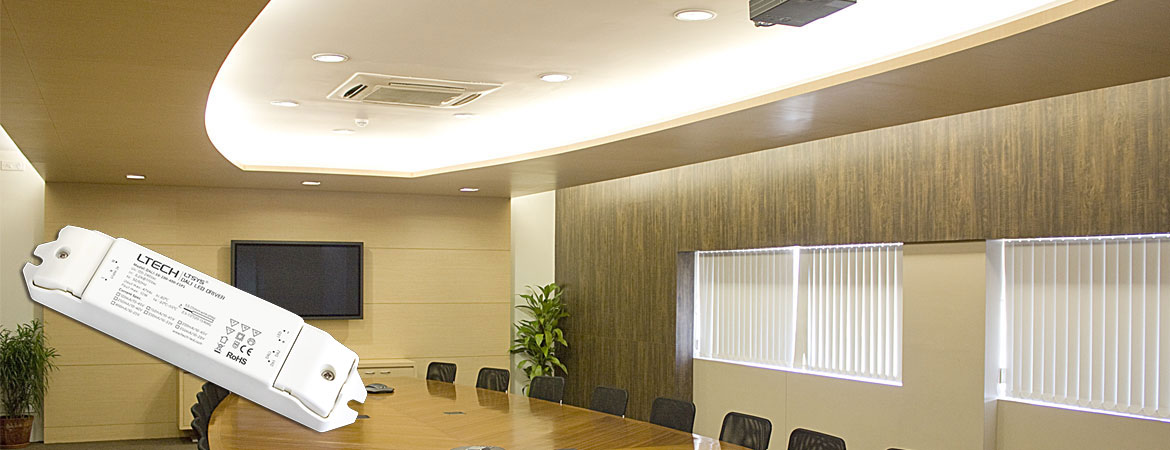

9、Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Dimming interface: DALI
Dimming range: 0-100%, LED Startup Current<0.1%
Input voltage: 100-240Vac
Output voltage: 10-45Vdc
Current Accuracy: ±3%
working temperature: tc: 80°C ta: -30°C ~ 55°C
Package Size: 140x24x23mm(LxWxH)
Weight (G.W): 80g±10g
Pout(Max.) Vout(DC) Constant(DC)
1-4.5W 10-45V 100mA
1.5-6.75W 10-45V 150mA
2-9W 10-45V 200mA
2.5-10W 10-40V 250mA
3-9.9W 10-33V 300mA
3.5-9.8W 10-28V 350mA
4-10W 10-25V 400mA
