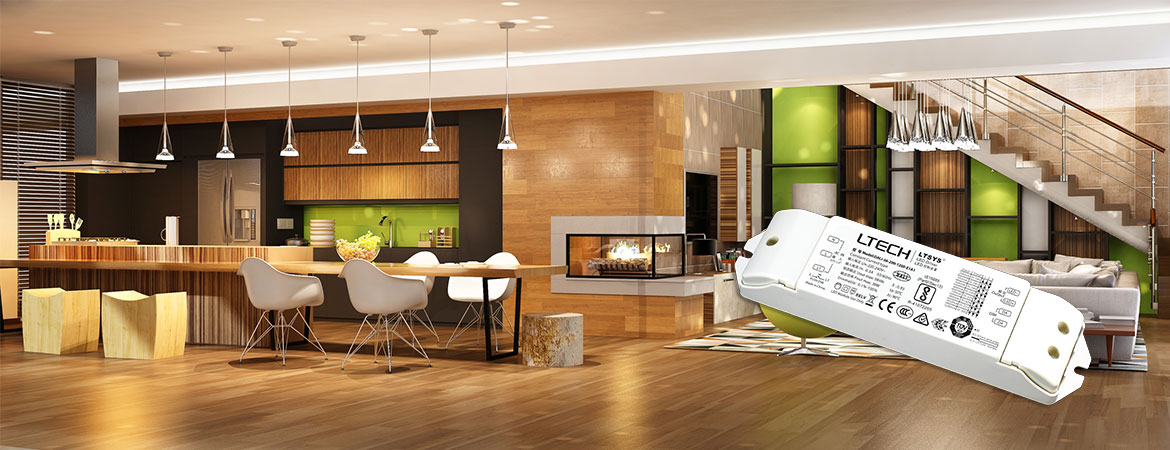

DALI-36-200-1200-E1A1 36W 200-1200mA (200-240Vac)
1、Dimming interface: DALI, Push DIM
2、PWM digital dimming, no alter LED color rendering index.
3、Dimming range: 0~100%, LED start at 0.1% possible.
4、Support lamp current state and fault feedback function.
5、DALI dimming curve can be either linear or logarithmic.
6、Non-load output voltage 0V to prevent damages to LED caused by poor contact.
7、Multi-current & wide voltage, suitable for different power LED.
8、Short circuit / Over-heat / Overload / Non-load protection.
9、Class 2 power supply. Full protective plastic housing.
10、DALI bus standard: IEC62386-101, 102, 207.
11、Compliant with Safety Extra Low Voltage standard.
12、Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.

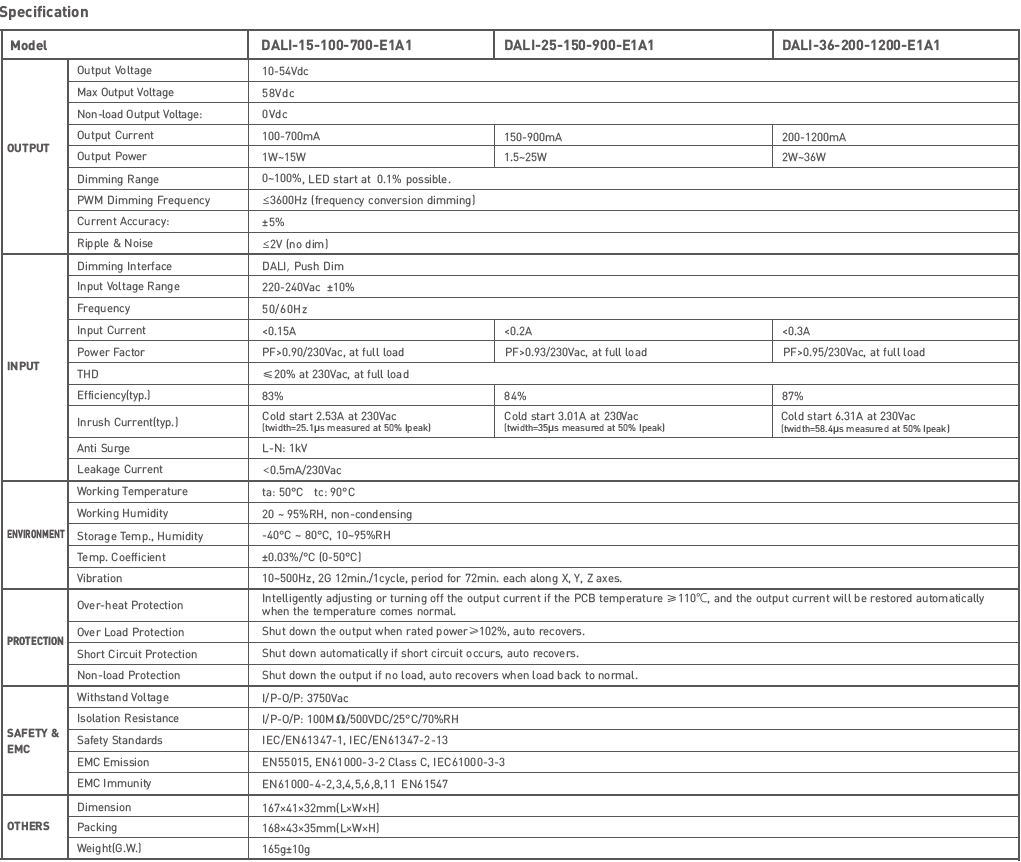

Dimming interface: DALI (IEC62386), Push DIM
Dimming range: 0~100%, LED start at 0.1% possible.
Input voltage: 200-240Vac
Current Accuracy: ±3%
Output voltage: 10-54VDC
CC output: 200mA-1200mA
Output power: 2W-36W
working temperature: ta: -30 ~ 50℃ tc: 90℃
Package Size: 168×41×32mm(L×W×H)
Weight (G.W): 165g±10g

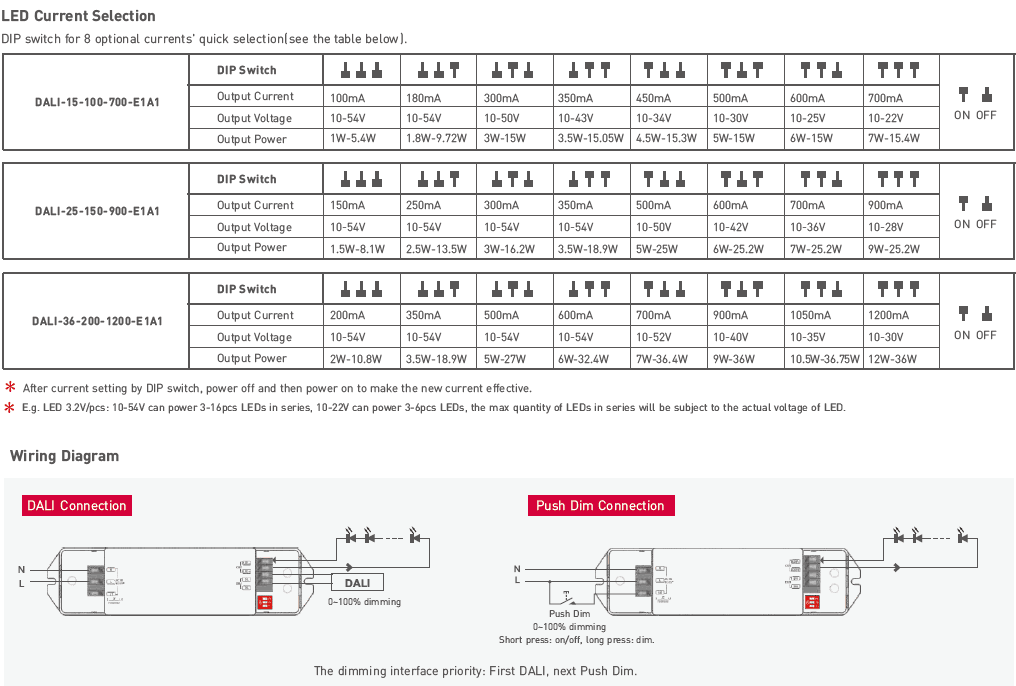

Pout(Max.) Vout(DC) Constant(DC)
2W-10.8W 10-54V 200mA
3.5W-18.9W 10-54V 350mA
5W-27W 10-54V 500mA
6W-32.4W 10-54V 600mA
7W-36.4W 10-52V 700mA
9W-36W 10-40V 900mA
10.5W-36.75W 10-35V 1050mA
12W-36W 10-30V 1200mA
