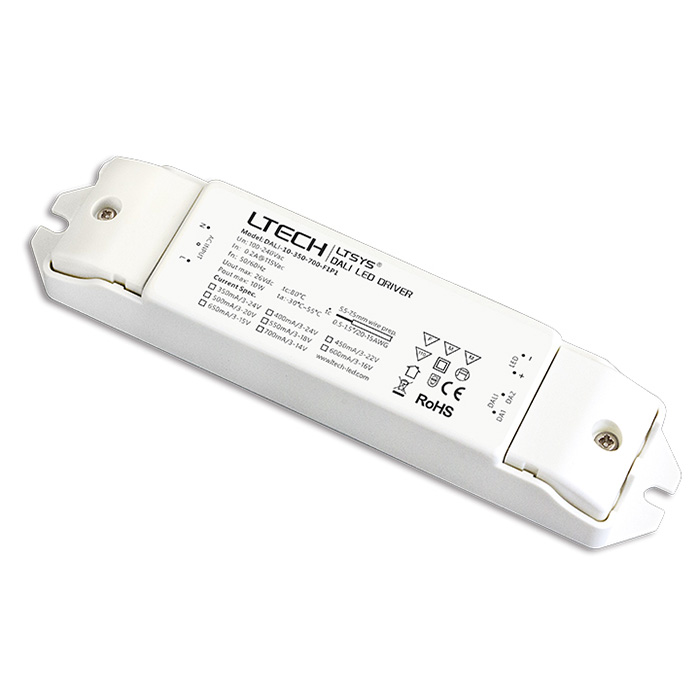

DALI-10-350-700-F1P1 10W 350-700mA (100-240Vac)
1、Dimming interface: DALI
2、PWM digital dimming, no alters LED rendering color.
3、Standard DALI logarithmic dimming curve.
4、Dimming range: 0~100%, LED start at 0.1% possible.
5、Short circuit / Over-heat / Overload protection.
6、Class 2 power supply. Full protective plastic housing.
7、DALI bus standard: IEC62386-101, 102, 207.
8、Compliant with Safety Extra Low Voltage standard.
9、Suitable for indoor environments.

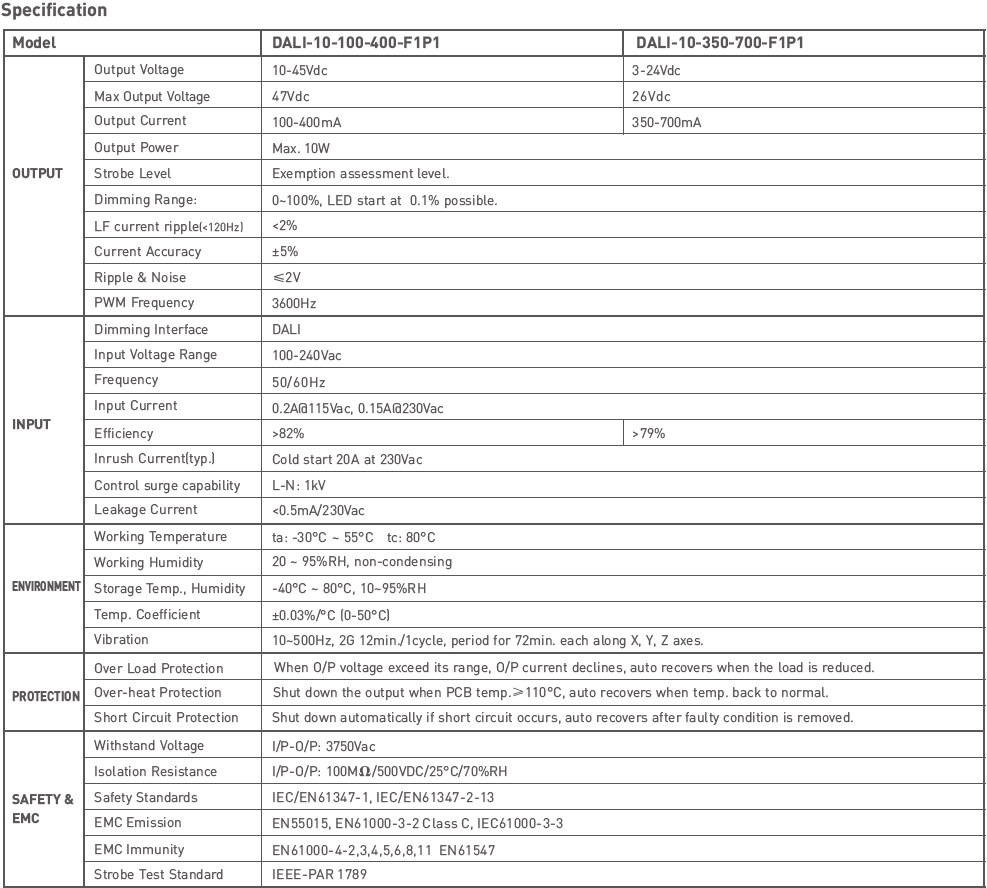

Dimming interface: DALI
Dimming range: 0-100%, LED Startup Current<0.1%
Input voltage: 100-240Vac
Output voltage: 3-24Vdc
Current Accuracy: ±3%
working temperature: tc: 80°C ta: -30°C ~ 55°C

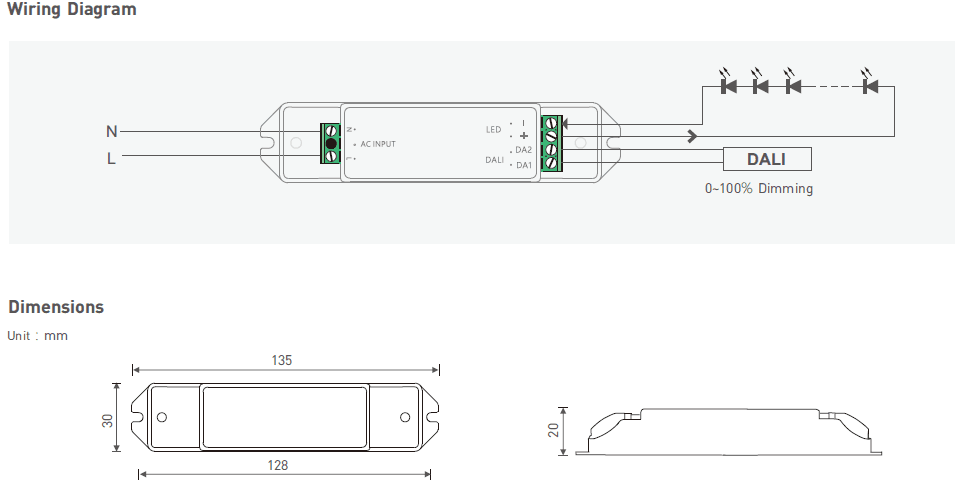

Package Size: 140×34×23mm(L×W×H)
Weight (G.W): 80g±10g
Pout(Max.) Vout(DC) Constant(DC)
1.05-8.4W 3-24V 350mA
1.2-9.6W 3-24V 400mA
1.35-9.9W 3-22V 450mA
1.5-10W 3-20V 500mA
1.65-9.9W 3-18V 550mA
1.8-9.6W 3-16V 600mA
1.95-9.75W 3-15V 650mA
2.1-9.8W 3-14V 700mA
