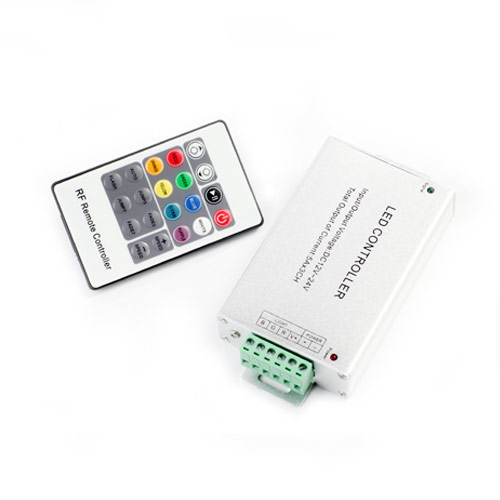

DC12/24V Max 15A 5A3CH, LED RGB Wireless RF Infrared 20keys Controller For RGB LED Light Strips or Modules
The model is a RGB controller with handheld Infrared Remote that can be used to program custom colors, control and dim any of our Red/Green/Blue (RGB) LED Light Bars and Light Strips. Several different static colors (including pure white) and dynamic color changing modes are directly selectable and adjustable on the IR remote. Up to six different custom colors can be programmed and saved on the six DIY buttons for direct selection. Specific color selection, custom color programming, or color change with speed control modes and dimming capabilities for accent lighting. Program and save custom colors, dynamic color changing, dim and control 3 channel RGB LED products from 0~100% using PWM with remote.

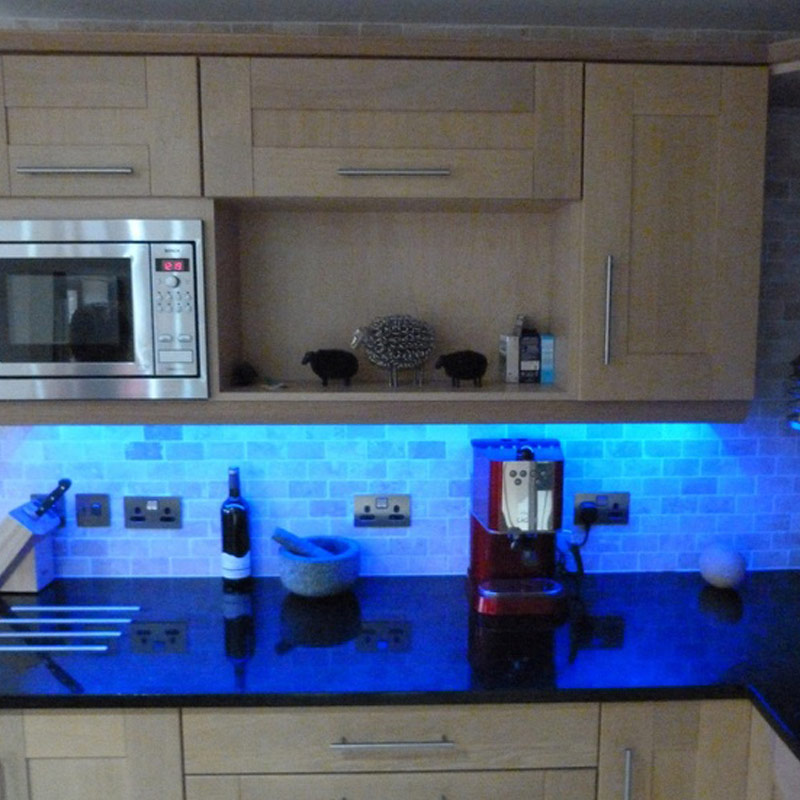

Interior Decoration: Club, bar, corridor, room, hotel, museum, christmas, holiday etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, etc

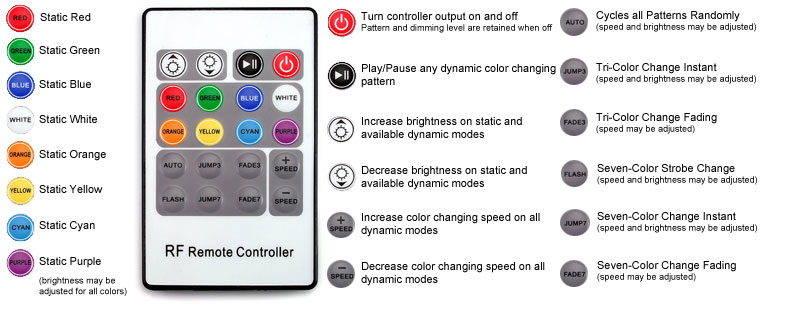

IR Remote Control
Supply voltage of this product is 5/12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
Only power with 5~24VDC power supply.
Wireless controller uses one CR2025 battery.

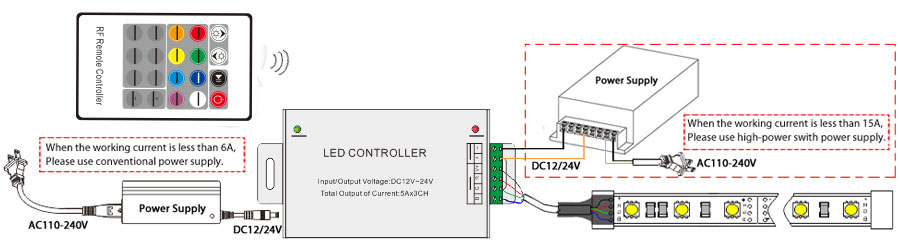

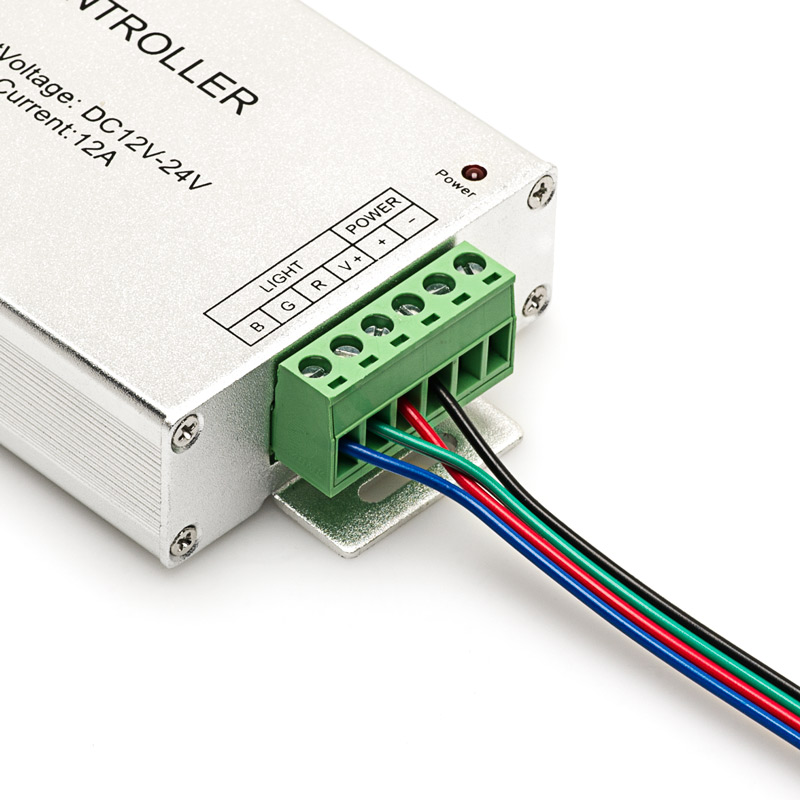

Connect according to the drawing below.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Controller can control a maximum of 48 meters of our Flexible RGB LED Strip. Over 48 meters, the strips have to connect with an amplifier to reinforce the transmission of signal. Use one RGB Amplifier for every 30 meters of additional LED Strips.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.

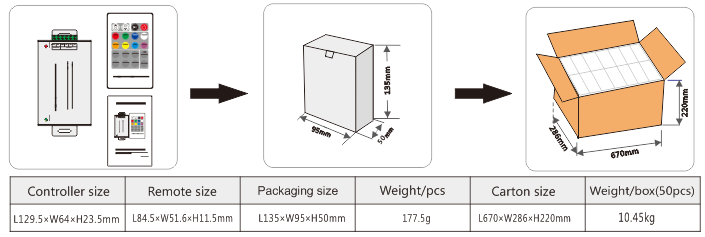

1 X RGB Controller
1 X User Manual
