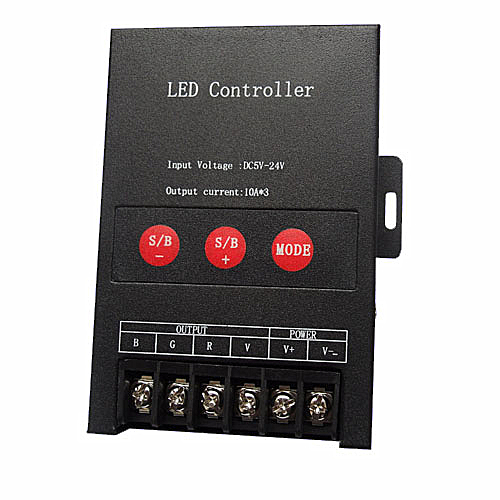

DC5/12/24V Max 30A 10A3CH, Super High Voltage LED RGB Controller Used With RGB Amplifier For RGB Longer Lighting or Advertising module Lighting

Model: CONRGB-RF-05
DC5/12/24V Max 30A 10A3CH, Super High Voltage LED RGB Controller Used With RGB Amplifier For RGB Longer Lighting or Advertising module Lighting
  • DC5/12/24V Max 30A 10A3CH, Super High Voltage LED RGB Controller Used With RGB Amplifier For RGB Longer Lighting or Advertising module Lighting
  • DC5/12/24V Max 30A 10A3CH, Super High Voltage LED RGB Controller Used With RGB Amplifier For RGB Longer Lighting or Advertising module Lighting
  • DC5/12/24V Max 30A 10A3CH, Super High Voltage LED RGB Controller Used With RGB Amplifier For RGB Longer Lighting or Advertising module Lighting
  • DC5/12/24V Max 30A 10A3CH, Super High Voltage LED RGB Controller Used With RGB Amplifier For RGB Longer Lighting or Advertising module Lighting
  • DC5/12/24V Max 30A 10A3CH, Super High Voltage LED RGB Controller Used With RGB Amplifier For RGB Longer Lighting or Advertising module Lighting
  • DC5/12/24V Max 30A 10A3CH, Super High Voltage LED RGB Controller Used With RGB Amplifier For RGB Longer Lighting or Advertising module Lighting

Select Specifications:

Select Operating Voltage :

Select Applied to:

$28.99

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$28.99
5-9
$28.41
10-14
$27.54
15+
$26.38
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Universal DC5/12/24V 30A Red / Green / Blue ( RGB ) LED Compatible Controller with hand held 6keys RF Remote Control. Can control any 12/24V DC RGB color change LED tape light products. Up to fifteen different custom colors can be programmed and saved on the six DIY buttons for direct selection. Specific color selection, custom color programming, or color change with speed control modes and dimming capabilities for accent lighting. for long led light strips.



    Standards and Certifications





    Product Specification

    Controller:

    Operating temperature:   -20-60 ° C

    Supply voltage:   DC 5V-24V

    Output current:   ≤10A(each channel)

    Output power:   5V / 150W, 12V / 360W, 24V / 720W

    Output:   3-channel

    Weight:   270g

    Product size:   110mm x 90mm x 25mm

    Material:   Aluminum alloy

    Color:   Black

    Connection method:   common anode

    Control distance:   30 meters

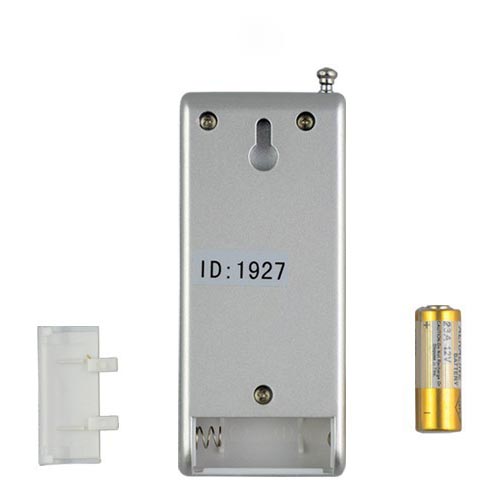

    IR Remote Control:

    Power:   23A12V batteries



    Control Method

    1.Connect the load wire at first, then the power wire; Never connect two wires directly in case of short circuit;

    2.According to mode key to choose the different changing mode every time.when the key is pressed the effect is changed, functional changes have been listed as follows.;

    3.Press speed key can changed every effect's speed changing progression. "S / B +" add one. When you press the button every time. But "S / B-" will subtract one. Totally 10 progressions to change the speed

    4 Standard functional changes have been listed as follows

    Mode





    Mode





    1

    Static red

       Brightness adjustable

    9

    Seven color jumpy changing

      Speed is adjustable

    2

    Static green

      Brightness adjustable

    10

    Three color gradual changing

      Speed is adjustable

    3

    Static blue

      Brightness adjustable

    11

    Seven color jumpy changing

      Speed is adjustable

    4

    Static red and green

      Brightness adjustable

    12

    RGB quickly chang

      Speed is adjustable

    5

    Static red and blue

      Brightness adjustable

    13

    Mode 9 and mode 11

      Speed is adjustable

    6

    Static green and green

      Brightness adjustable

    14

      RGB gradual changing at the same

      Speed is adjustable

    7

      Static red and green and blue

        Brightness adjustable

    15

    RGB changing like running water

      Speed is adjustable

    8

    Three color jumpy changing

    Speed is adjustable

    Adopt wireless control method, function of each button as below:

    Button "A": is the style / color function key, could choose different color changes

    Button "B": each press changing speed + 1

    Button "B": each press changing speed-1

    Button "D": the output switch.



    Applications

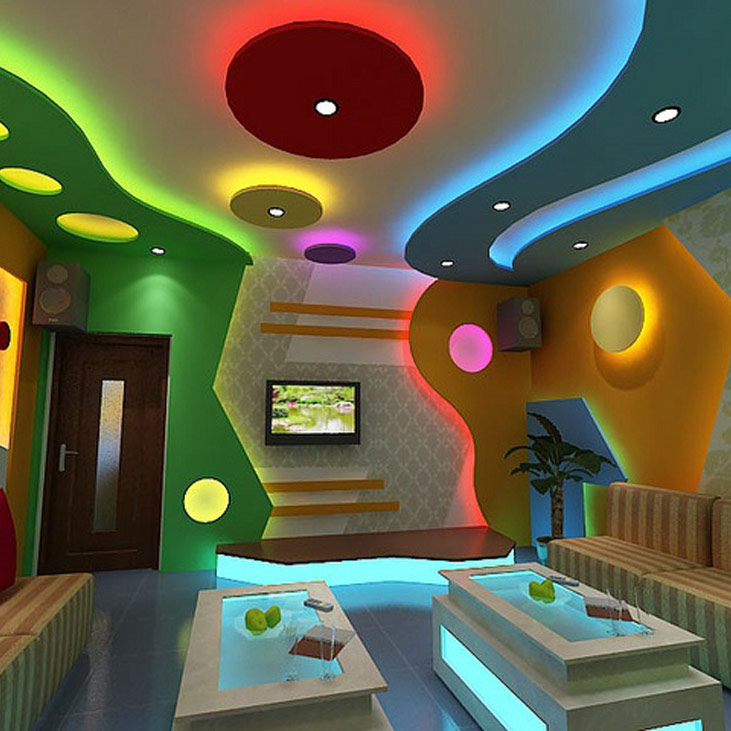

    Interior Decoration: Club, bar, corridor, room, hotel, museum, christmas, holiday etc.

    Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, etc

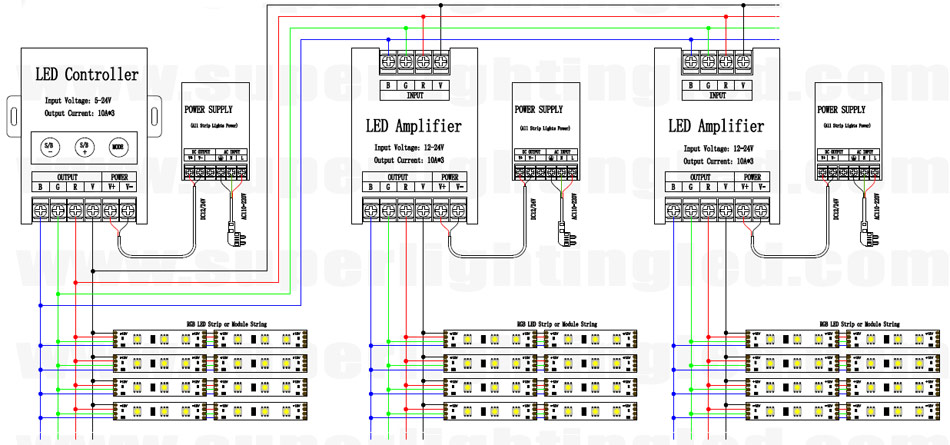

    Connection Diagram



    Safety

    Supply voltage of this product is 5/12/24 Volts DC, do not exceed.

    Shorting output wires my cause damage to dimmer.

    Always observe proper polarity when connecting power and load.

    For indoor use only - this product is not waterproof or weatherproof.



    Note

    QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

    Controller can control a maximum of 20 meters of our Flexible RGB LED Strip. Over 20 meters, the strips have to connect with an amplifier to reinforce the transmission of signal. Use one RGB Amplifier for every 30 meters of additional LED Strips.

    Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.



    Package including

    1 x 30A RGB LED Remote Controller

    1 x User Manual
