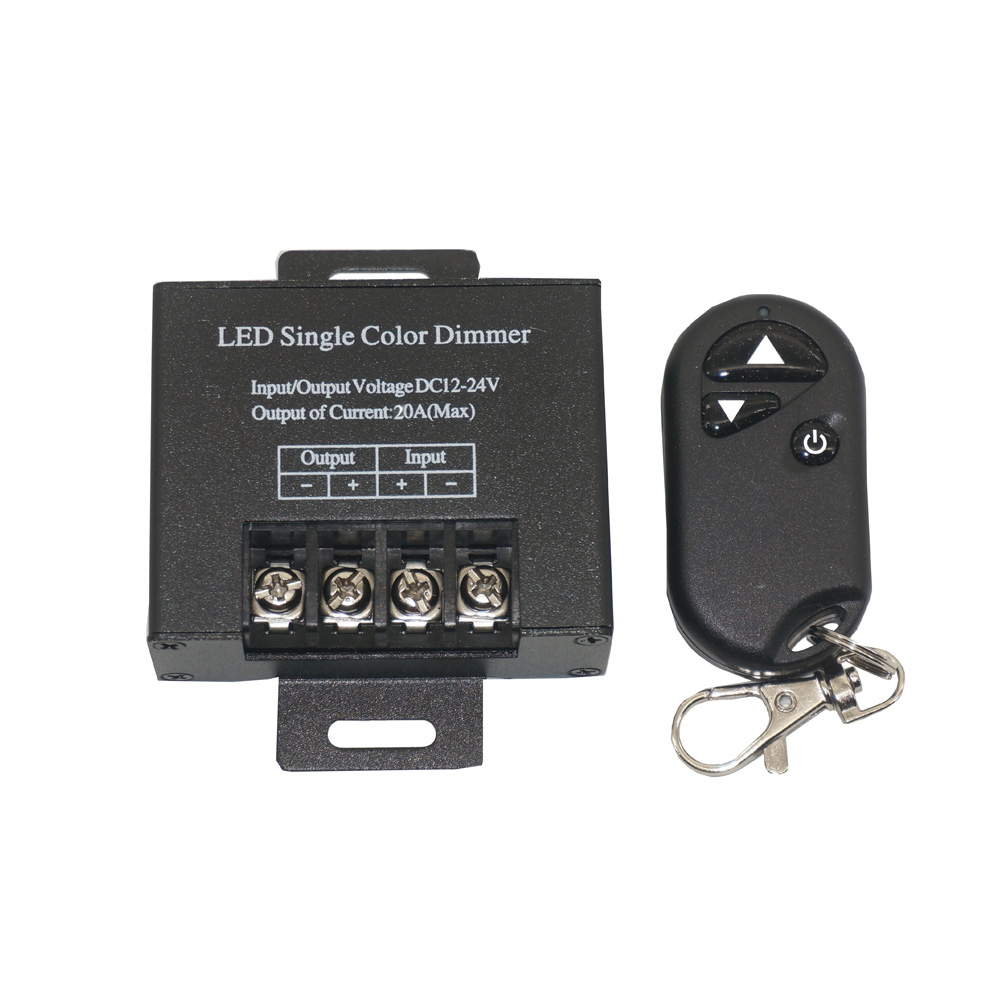

DC12-24V Max 20A, PWM Digital Brightness Dimmer With 3 Keys Wireless RF RemotePotentiometer Controller Apply For Single Color 5050/3528/2835SMD LED Strip Lights
Mechanically turn the dimmer button, you can turn the knob on the dimmer to adjust the brightness of the lamp from 0% to 100%, the frequency of the dimmer is around 1,000, so it is only used for home lighting, if you use For photography lighting, please choose a dimmer with a frequency higher than 20000, such as model V1-K
How to Use: Firstly connect the load wire, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power. When detected someone comes, the light turns on, after people left 10 seconds later, the light turns off automatically. And the right control signal output line and input line should connect correctly.
Static power consumption: <1W
Output current: 20A Max
Output power: 12V 20A<240W, 24V 20A<480W
Working temperature: -20~60 °C
Supply voltage: DC 12-24V
Output: 1 channel
Size: 62 x 80 x 25mm(L* W* H)
Certification: CoHS, CE
1 x 20A LED Dimmer
1 X RF Remote
1 X user manual
