Silicone LED Strip Profile For 5mm Narrow LED Strip - 10*10mm 180° Top Emitting

Model: FLNLT-1-T1010-L
Silicone LED Strip Profile For 5mm Narrow LED Strip - 10*10mm 180° Top Emitting
  • Silicone LED Strip Profile For 5mm Narrow LED Strip - 10*10mm 180° Top Emitting
  • Silicone LED Strip Profile For 5mm Narrow LED Strip - 10*10mm 180° Top Emitting
  • Silicone LED Strip Profile For 5mm Narrow LED Strip - 10*10mm 180° Top Emitting
  • Silicone LED Strip Profile For 5mm Narrow LED Strip - 10*10mm 180° Top Emitting
  • Silicone LED Strip Profile For 5mm Narrow LED Strip - 10*10mm 180° Top Emitting

Select Specifications:

Starting at: $3.99

Free worldwide shipping on orders over $199

Various options in stock
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Silicone led strip profile for 5mm narrow led light strip, large illumination area. Made of high quality food grade silicone material, it is flexible and waterproof, does not change yellow or crack.



    And the silicone channel has good light transmittance, the light refracted from the light source through the conduction of silicone diffuser to produce the ultimate lighting effect which is more artistic and practical. The combination of high-density or medium-density LED light strips and the flexible led silicone tube can almost achieve the effect without light spots. Widely used in decorative lighting and neon sign lighting.





    Model:  FLNLT-1-T1010-L
    Tube Material:  Food-grade Silicone
    Lighting Direction:  Top emitting

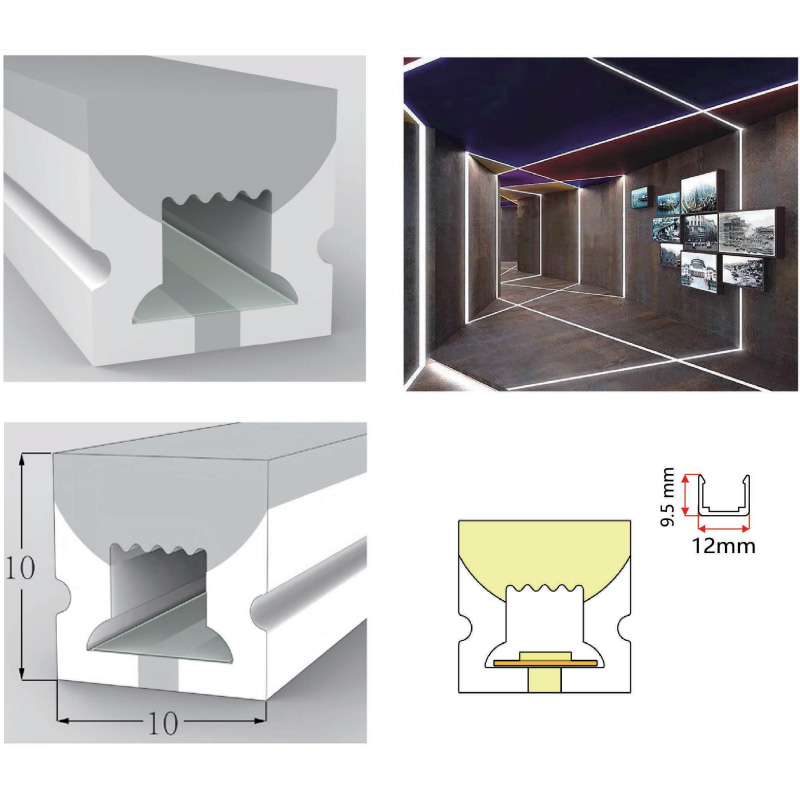

    Tube Size:  10mm/0.4" X 10mm/0.4"
    Color:  White
    Suitable LED Strip Width:  5mm/0.2"
    Available LED Strip Type:  Single color led strip, COB led strip, CCT led strip, RGB led strip, RGBW led strip, RGBCCT led strip, Addressable led strip with 5mm PCB width
    Features:  Soft, Flexible, Waterproof
    Length:  1m/3.28ft, 2m/6.56ft, 5m/16.4ft
    Beam Angle:  180°
    Accessories:  End Caps (come with)Mounting Clips (Please choose in the "Kit" option)
    Waterproof Rating:  IP67
    UV Resistant:  Yes
    Working Temperature:  -50°C to 200°C
    Knowledge Source:

    What Are LED Neon Lights?

    Flexible LED Neon Lights: Silicone Tube VS PVC Tube



    warm tips Note:

    The product does not include led light strips.

    If you buy our LED strip lights at the same time, we can make LED neon lights for you for free. You only need to make a note when ordering.

    If you insist on completing the production by yourself, you can read: How To Put  A Flexible LED Strip Light Into A Silicoen Diffuser Tube?

    We are not responsible for any damage caused by your own operation!

    how to make led neon lights by yourself

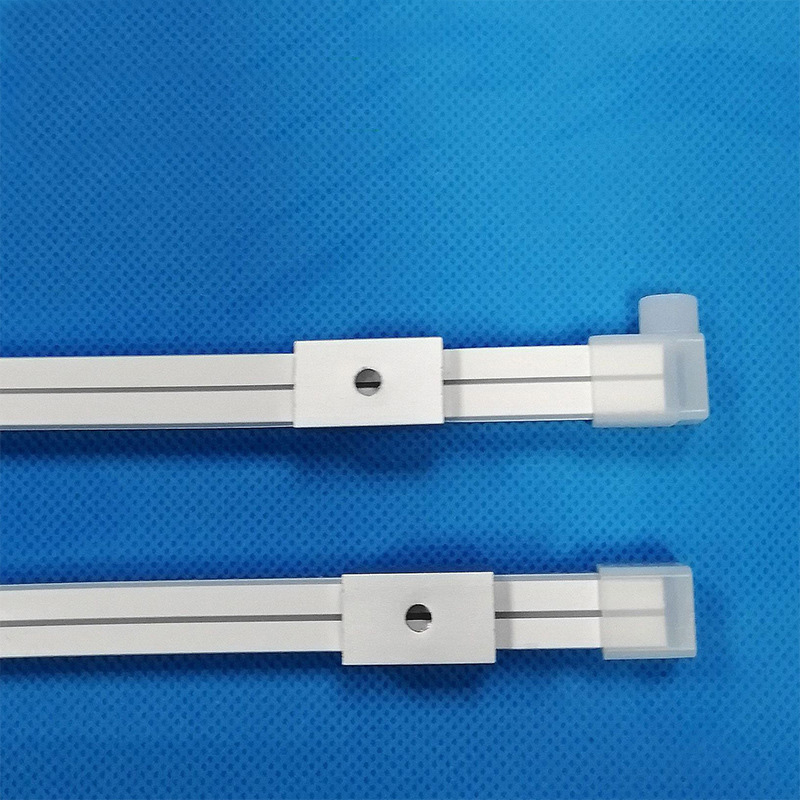

    Flex LED Silicone Tube Installation:

    There are three installation methods for the silicone led profile:

    One is to install with mounting clips (this link include 10 pcs, if you need extra led mounting brackets, please purchase them by yourself), easy operation. 1m silicone tube for led strip lights has two mounting clips, 2m has four, and 5m has ten.

    The second is to put the soft silicone tube into the aluminum channel, this installation method is suitable for linear lighting projects.

    And the third is to use flexible profiles for curved path lighting, which has great bending freedom.

    Three Ways to Fix LED Neon Tube Lights





    Using Application:

    The Flexible Silicone LED Channel is availlable in All LED Strip Lights with Single color/CCT/RGB/RGBW/RGBCCT/Addressable Dream Color, which has wide applicability.

    It can be applied to the following scenes:

    1. Neon signs, Advertising, Signboard, Festival atmosphere decoration project

    2. Home decor, Wall decor, Hotel lighting project

    3. Outdoor decorations: Building outline lighting, Bridge lighting project, Cultural tourism town lighting project, City park lighting project, Airport lighting project, etc.

    bending neon strip lights

    rgb neon led strip







    neon rope lights for your outdoor lighting

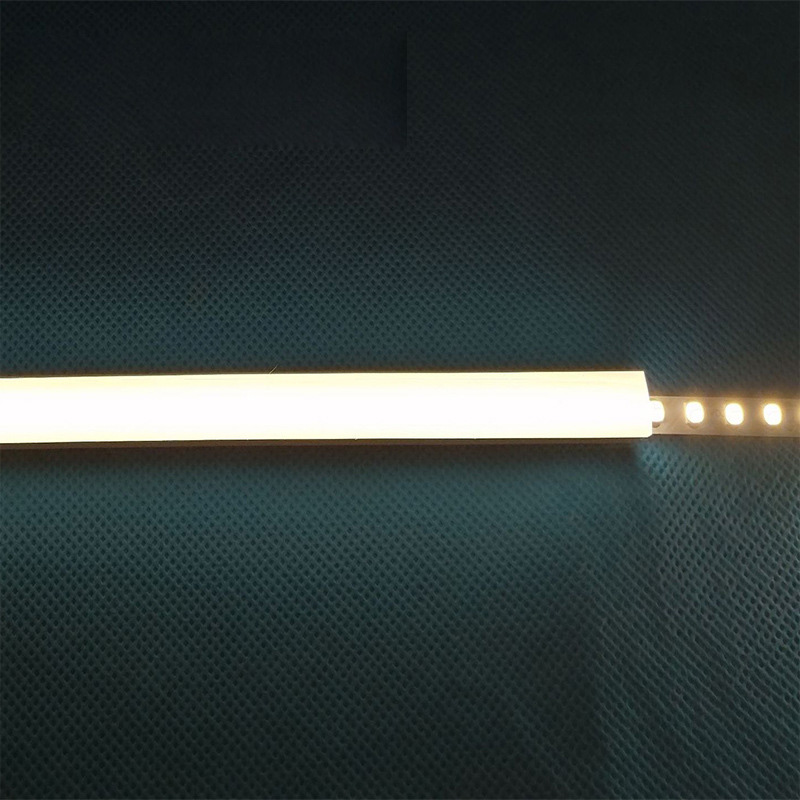

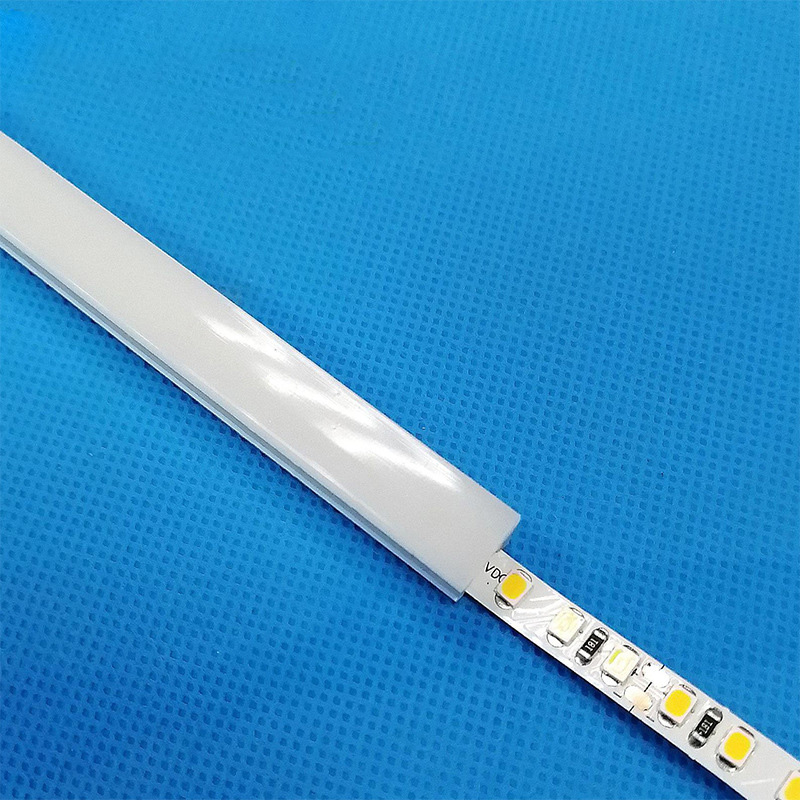

    Silicone LED Strip Profile For 5mm Narrow LED Strip - 10*10mm 180° Top Emitting

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    Silicone LED Strip Profile For 5mm Narrow LED Strip - 10*10mm 180° Top EmittingSilicone LED Strip Profile For 5mm Narrow LED Strip - 10*10mm 180° Top EmittingSilicone LED Strip Profile For 5mm Narrow LED Strip - 10*10mm 180° Top EmittingSilicone LED Strip Profile For 5mm Narrow LED Strip - 10*10mm 180° Top EmittingSilicone LED Strip Profile For 5mm Narrow LED Strip - 10*10mm 180° Top Emitting
