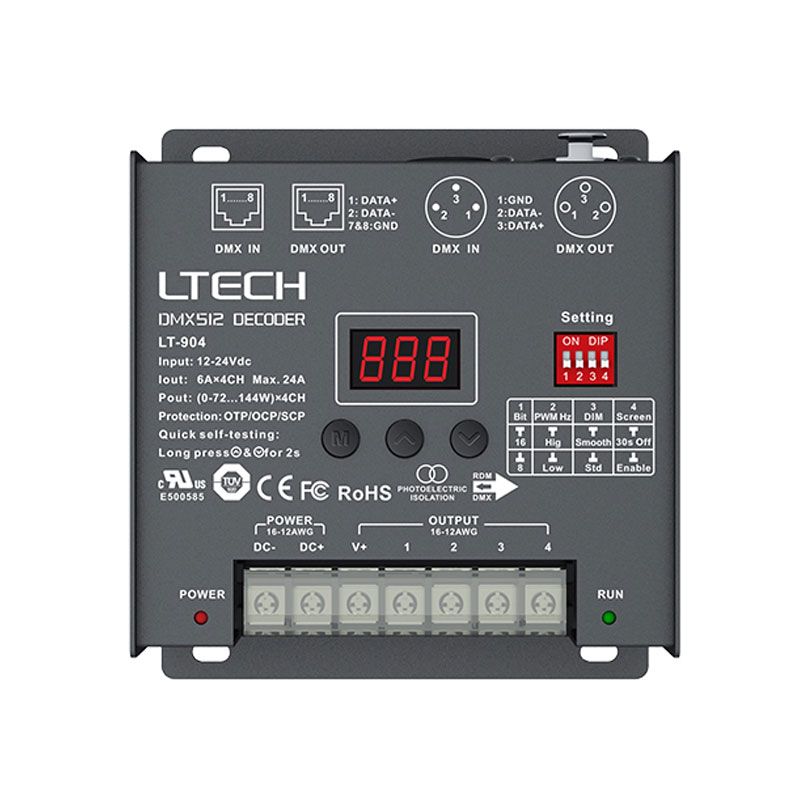

Max.576W,4CH CV DMX Decoder LT-904

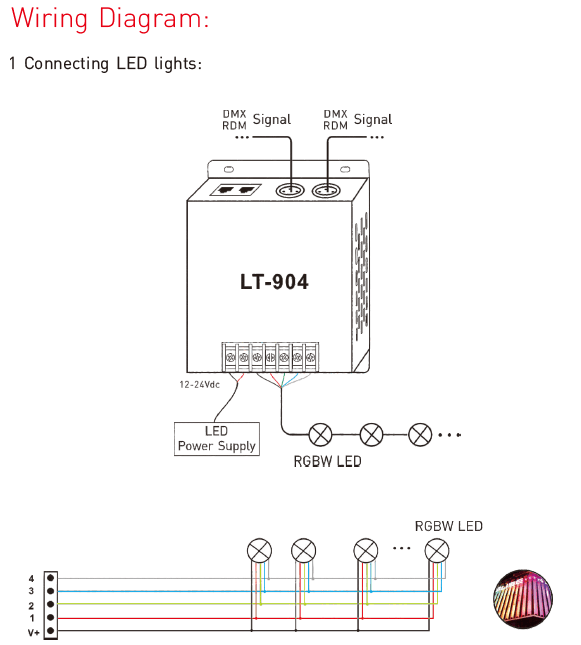

1. Designed with 4 channels output, and Max. 6A current per channel, up to 576W output power.
2. Easy operation with OLED screen and the touch buttons.
3. Support 2 kinds of DMX ports with signal isolation function: 4-pin XLR, RJ45.
4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
5. With shortcut protection and overload protection, as well as warning function when fault.
6. With fast self-testing function.
7. High/low PWM frequency for optional.
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
Input signal : DMX512/RDM
Input voltage : DC12V～DC24V
Max load current: 6A x 4CH Max. 24A
Max output power : (0~72W...144W) x4CH Max.576W

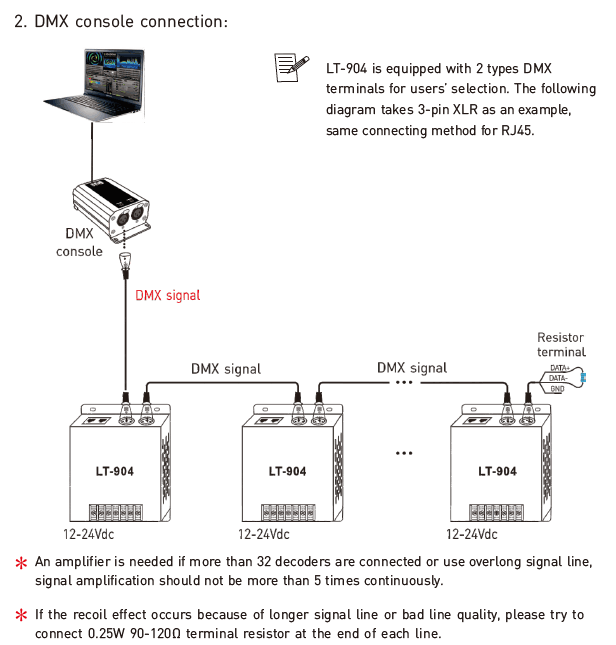

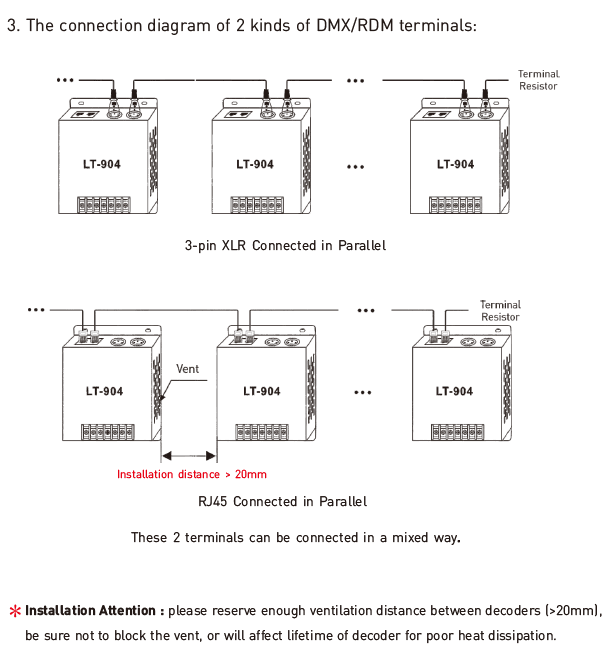

DMX512 socket: 3-pin XLR, RJ45
Gray scale level: 8bit (256 levels) / 16bit (65536 levels)
Working temperature : -30℃～65℃
Dimension : L122×W110×H37(mm)
Package Size: L127×W123×H41mm
Weight (G.W): 550g
