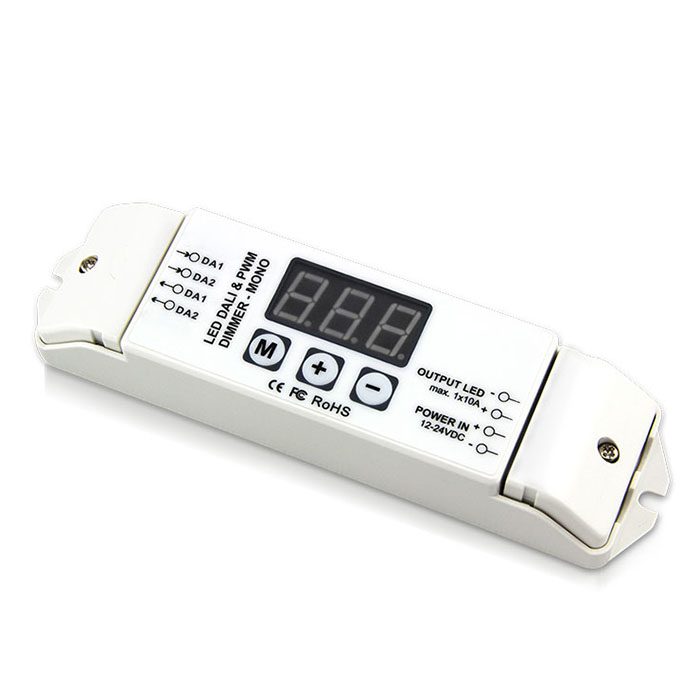

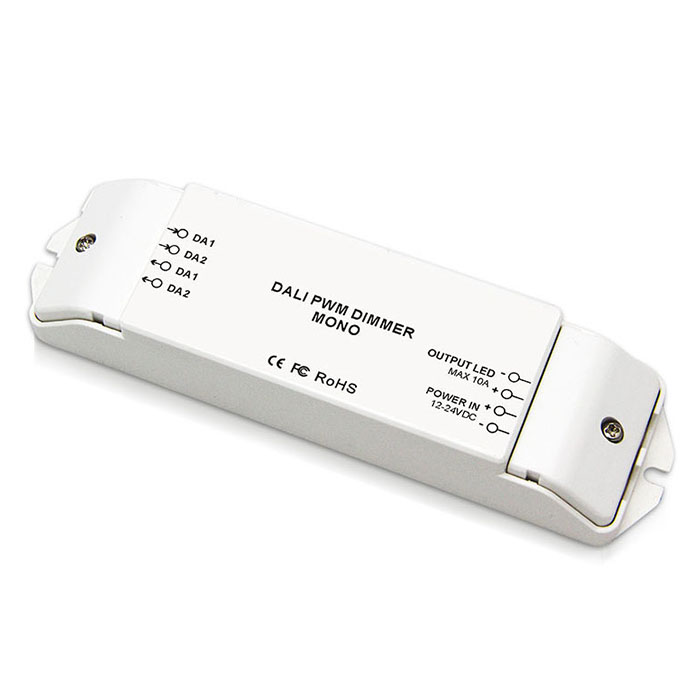

DC12V-24V 1CH DALI Dimming Driver BC-341
DALI dimming driver, which input standard DALI signal and adopted the most advanced DALI standard IEC62386. It can meet with any equipment in line with the DALI protocol on a bus control, and realize the LED lighting products and traditional lighting integrate within the same set of the lighting system. We also add short circuit protection and over-current protection in the driver, which avoid the LED lamp from being damaged.
1. Automatically adapts input voltage DC12V-24V.
2. Can meet with any equipment in line with the DALI protocol on a bus control.
3. 4096 grey levels, lamplight soft and stable, without flickers.
4. With the DALI signal input optical isolation protection.
5. Overcurrent protection and short circuit protection.
Standards and Certifications
Input voltage: DC12V-DC24V
Output current: 10A/CH×1
Output Power: 120W(12V)/240W(24V)
Input Signal: DALI Dimming signal
Grey Scale: 4096 levels
Weight (G.W): 125g
