DC12V-24V 0/1-10V Dimming Driver BC-331-DIN
Welcome to use this 0/1-10V dimming driver. It is to solve the compatible problem of fluorescent dimming and LED illumination, this controller can dim both fluorescent and LED lamps at the same time.
1. Automatically adapts input voltage DC12V-24V.
2. 1 output channel, Max output 18A.
3. PUSH DIM input voltage AC/DC12V-230V.
4. 0/1-10V to PWM dimming signal conversion, linear or log.
5. Support linear dimming or logarithmic dimming.
6. Support optional output frequency 0.5K,1K,2K,4KHz.
7. Compatible with many brand dimming systems.

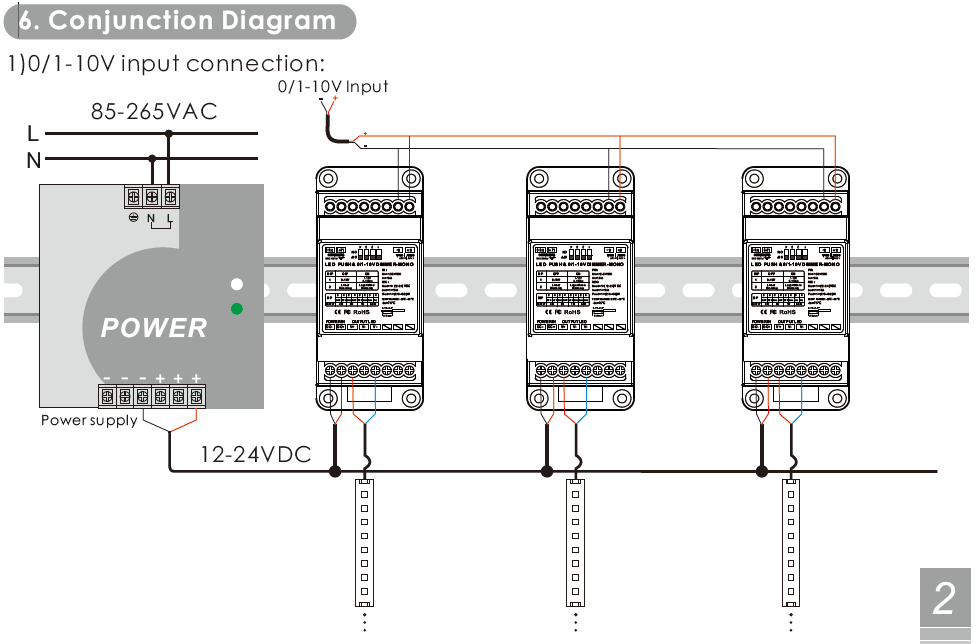

8. Multi units can be worked together or use our power repeaters to control more lamps.
9. Power loss memory function. Overcurrent protection, short circuit protection.
10. The DIN rail style facilitates the installation of large-scale projects.
Standards and Certifications
Input Voltage: DC12V-24V
Input Signal: 0/1-10V or PUSH DIM
Output Signal: Constant Voltage PWM
Max Output Power: 216W(12V)/432W(24V)
Output Frequency: 0.5K、1K、2K、4KHz selectable

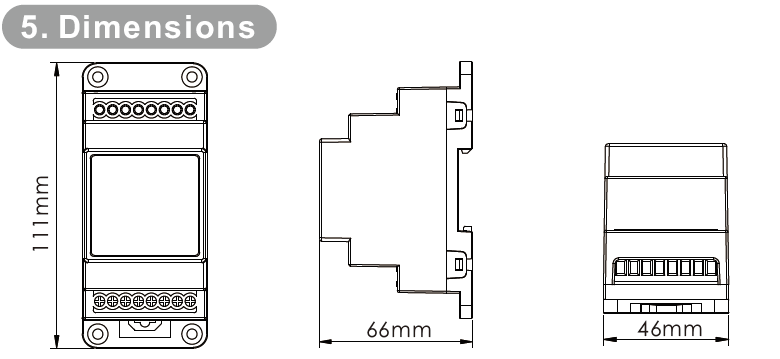

Package Dimension: L111×W46×H66(mm)

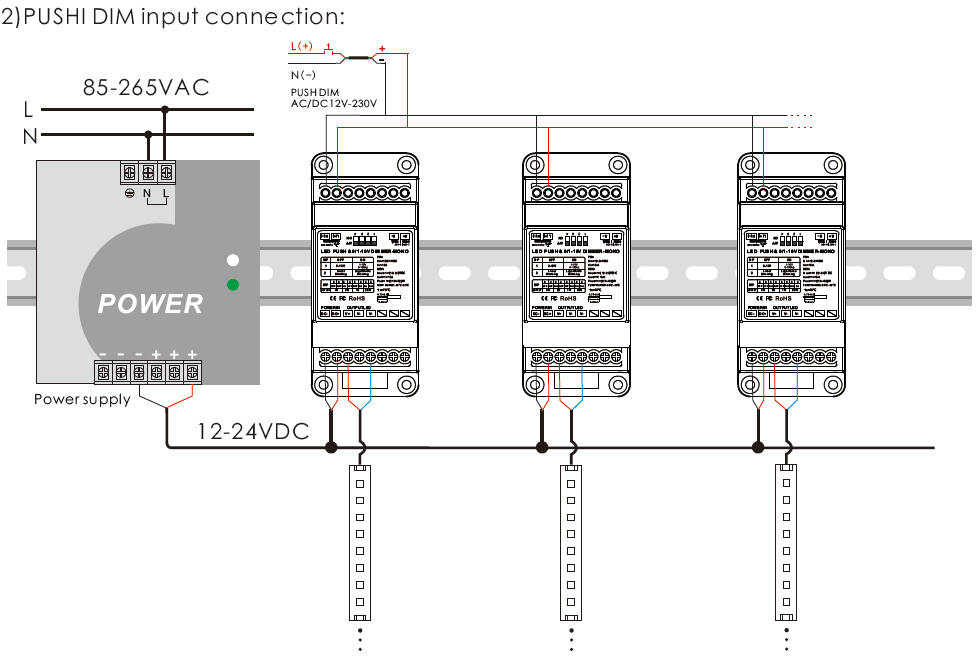

PUSH DIM Description:
1)Short press PUSH DIM button(less than 0.5S), to control the light ON/OFF.
2)Long press PUSH DIM button(more than 0.5S), adjust the light brightness; After each adjustment, the changing goes opposite.
3)When the light is OFF, long press PUSH DIMbutton, the light turn ON and dim.
4)When long press PUSH DIM to adjust the brightness, dimming range is 1%-100%, short press it to turn OFF the light.
5)Power down function available ,it keeps same status when power up again.

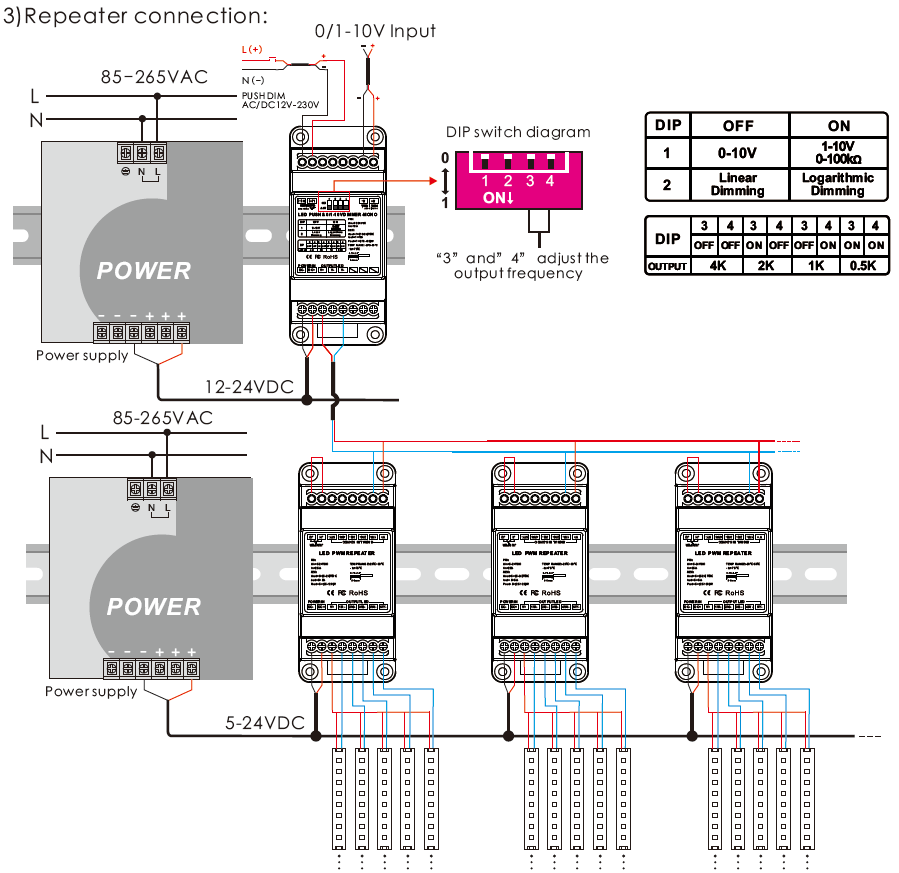

It can connect to our power amplifier to extend power unlimitedly.
1. To ensure your safety and product properly usage, please read the user manual carefully.
2. To avoid installed the product in minefield, strong magnetic field and high voltage area.
3. To ensure the wiring is correct and firm avoiding short circuit damages to components and cause fire.
4. Please install the product in a well ventilated area to ensure appropriate temperature environment.
5. The product must be worked with DC constant voltage power supply. Please check the consistence of input power with the product, if the output voltage of the power comply wit h that of the product.
6. Connect the wire with the power on is forbidden. Ensure proper wiring first then check to ensure no short- circuit, then power on！
7.Don't repair it by yourself whenever an error occur. Contact the supplier for any inquiry.
