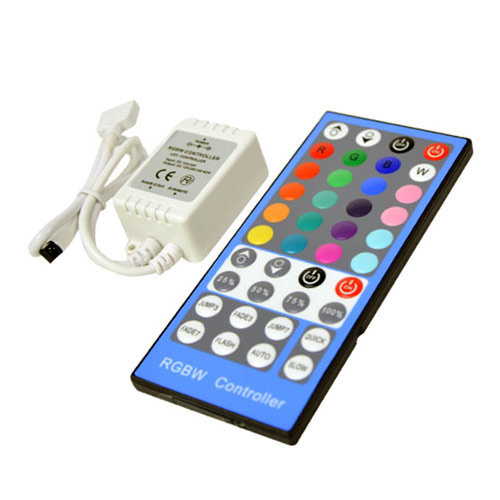

DC12/24V Max 8A 4Ax2CH, Universal mini LED RGBW Controller With 40key RF Infrared remote Control For RGBW Strips or Bulbs
This RGB+white 40keys controller is divided into RGB and W two parts, it can be turned on/OFF RGB part and W part independently, and can control their brightness and their color independently, such as, when turn on RGB part, it can change RGB part's color and brightness; and can turn on W part at the same time, and can turn on/OFF W part or adjust its brightness. When at 3/7 color Fade model, can adjust their changing speed; when at 3/7 color Jump mode, can adjust their brightness and adjust changing speed.
Through connecting with this controller, it will be able to control the LED RGB strips bu the accompanied RF controller,achieving different modes and colors. Brightness adjustable, Adjust the light soft and stable, no flickering. Easy to install and simple to use. Use for single color strip and LED lamps, such as wash wall lamp, glass curtain wall light. Constant voltage and constant current output. The RF wireless remote signal can pass through barrier, it gets a longer control distance(about 15 meters at open area) so it is not necessary to aim at the main unit when operating.

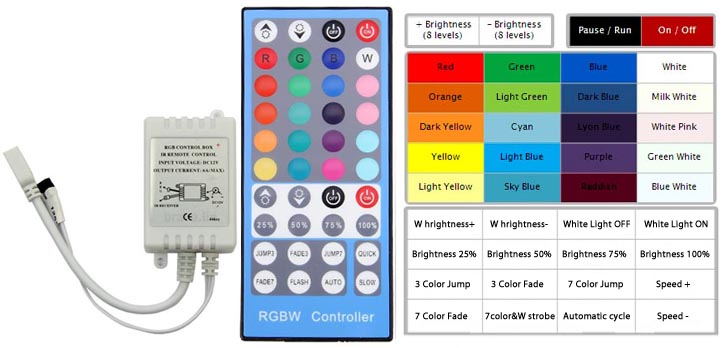

RF Remote Control
Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

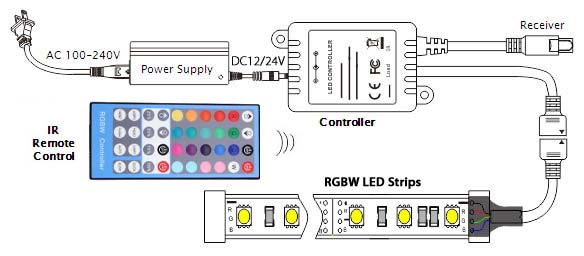

Connect according to the Wiring Schematic drawing.
Controller can control a maximum of 30 meters of our Flexible RGBW LED Strip. Over 30 meters, the strips have to connect with an amplifier to reinforce the transmission of signal. Use one RGBW Amplifier for every 15 meters of additional LED Strips.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Not suitable for automobile applications.

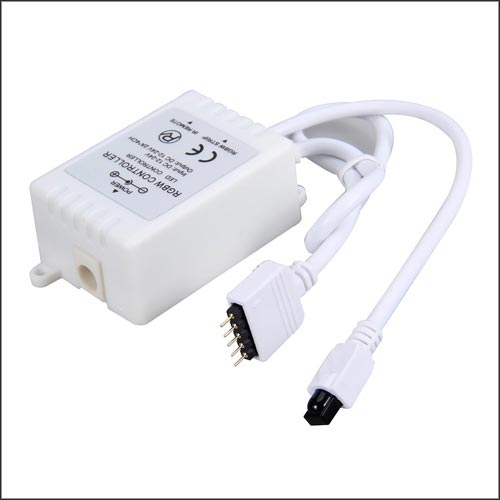

1 x 8A RGBW LED Controller

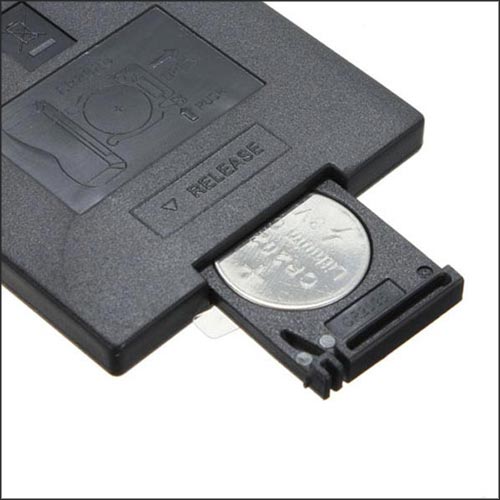

1 x RF 40keys Remote Control
