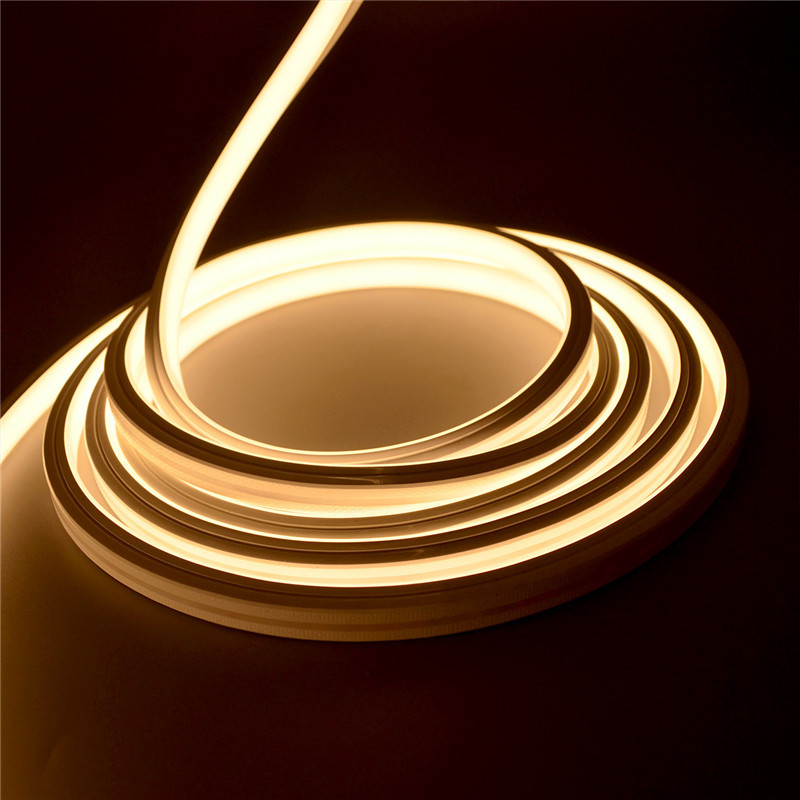

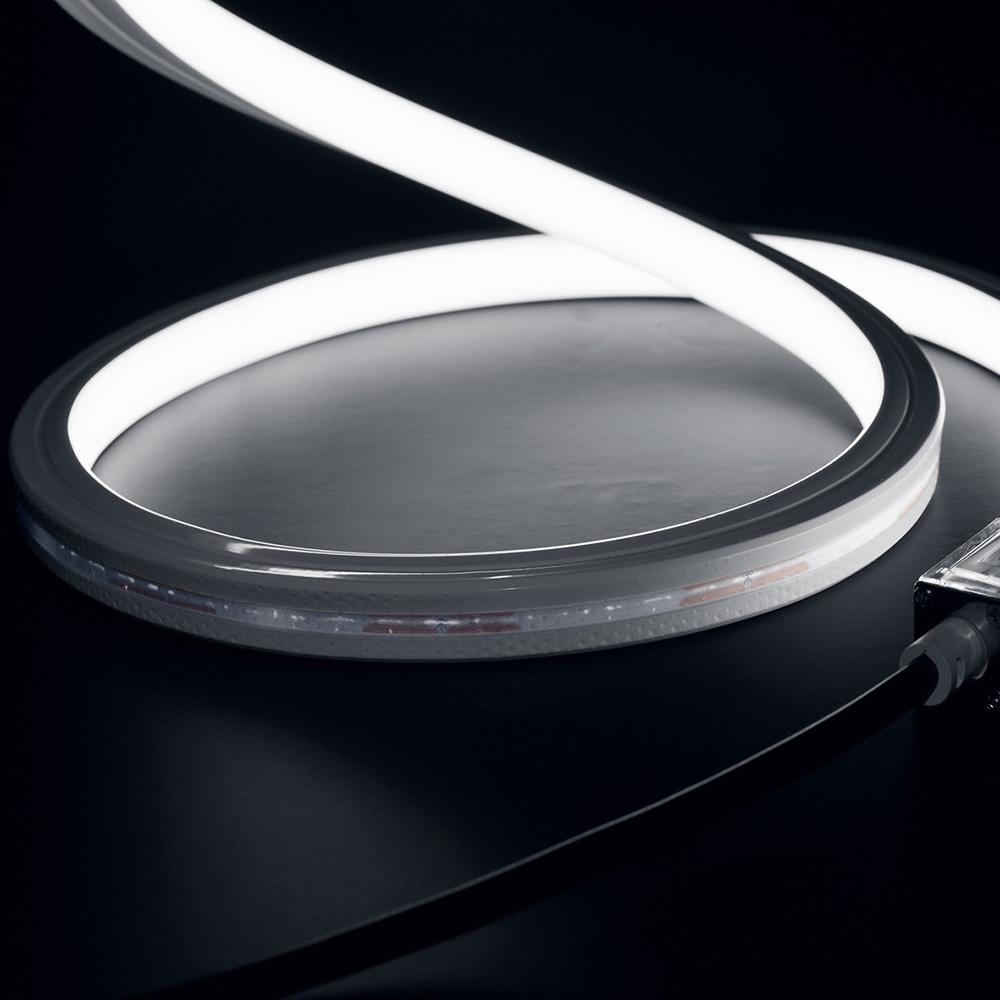

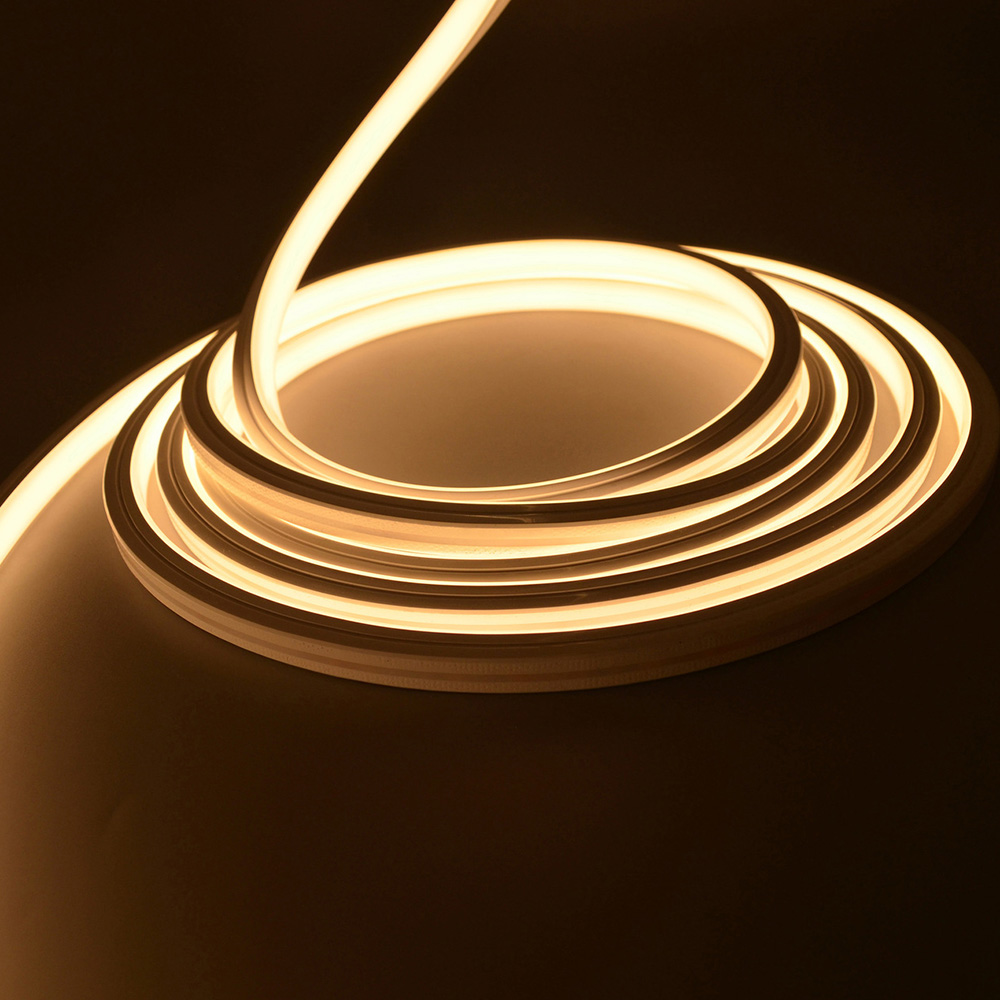

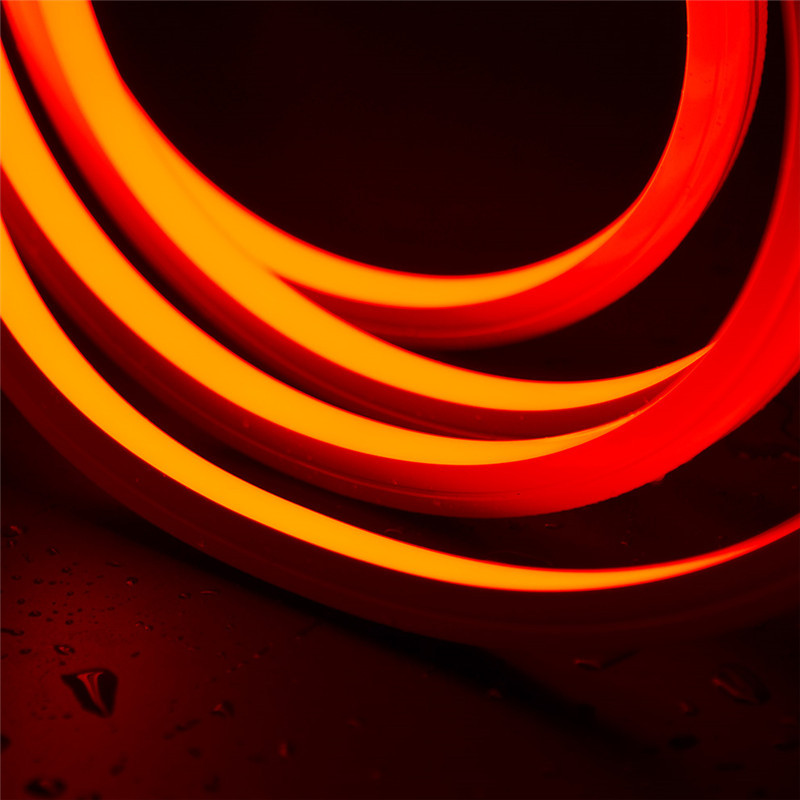

DC24V 16.4Ft 12*12mm Top Lighting Waterproof Multi-Color Optional Flexible LED Neon Light for Outdoor Lighting
Here is the led neon sign light with various color temperatures and light colors (white, red, green, blue, pink, yellow, CCT dimmable white, color changing RGB), low power consumption than traditional glass neon lights. Using food grade silicone material, soft linear light and no light spot. This neon light is IP67 waterproof, suitable for advertising lighting, decorative lighting, and outdoor lighting. IP20 non-waterproof and IP67 waterproof neon lighting kit are available.
Neon Sign Light Kit:
If you choose the LED power supply in the kit, we will send you PSPS-24V-72W
If you choose the LED strip + IP67(controller+power supply), we will send you a WL5-WP led controller for single color/CCT/RGB/RGBW/RGBCCT led strip light and PSWP-24V-60W (DC24V including an AC plug) waterproof led power supply.
Standards and Certifications

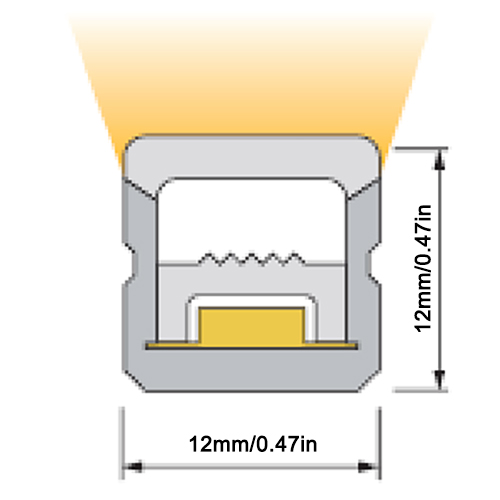

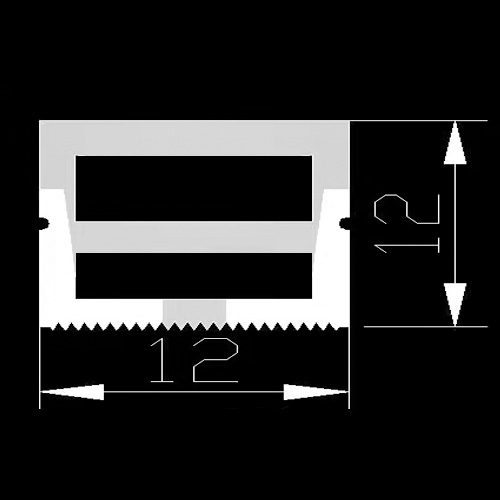

|LED Product Type:||Neon Signs Lights 12*12mm|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Colors:||2700K/3000K warm white, 4000K natural white, 6000K daylight white, red, green, blue, pink, yellow, CCT, multi color RGB|
|Lumen Per LED:||20-22Lumen 402lm Max /ft|
|LED Quantity:||120 LEDs per meter, 37LEDs/Ft (single color and CCT); 29LEDs/Ft (RGB)|
|Input Voltage(V):||24 VDC|
|Working Power:||10W/m, 50W /16.4ft Max → Informations About LED Power Supply|
|Material:||Food grade silicone|

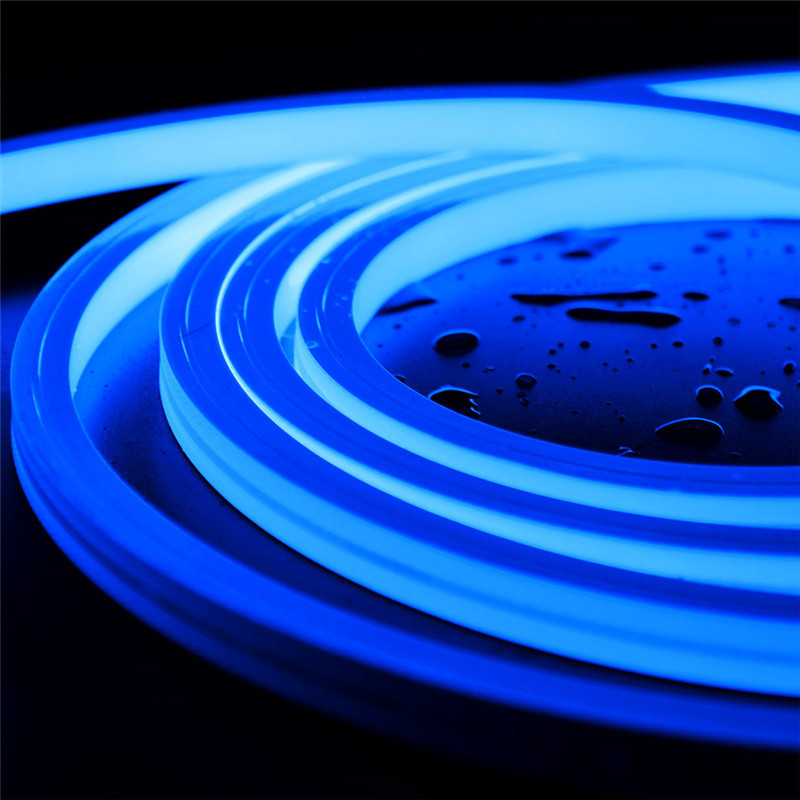

|Waterproof Rating:||Waterproof IP67|
|Beam Pattern:||120 degree|
How To Install LED Neon Lights?
1. cut and install led neon sign light:

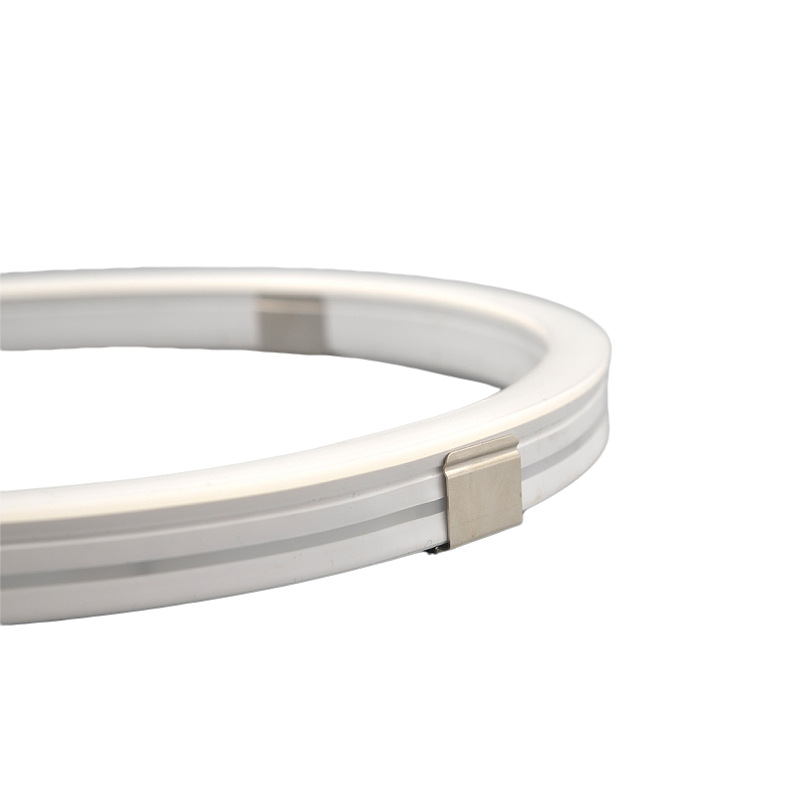

There are three installation methods for the led neon strip lights. One is to install with mounting clips, per meter 2 PCS. The second is to put the flex led neon tube light into the aluminum channel for linear lighting projects. And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
3. How to Repair LED Neon Strip Lights?
a. Single color LED neon light signs wiring diagram:
b. CCT adjustable white neon light signs wiring diagram:
c. Multi-color RGB neon lights wiring diagram:
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
