DC24V 16*15mm Side Lighting Waterproof 16.4Ft 600LEDs Multiple Single Color Optional Flexible LED Neon Light for Outdoor Lighting

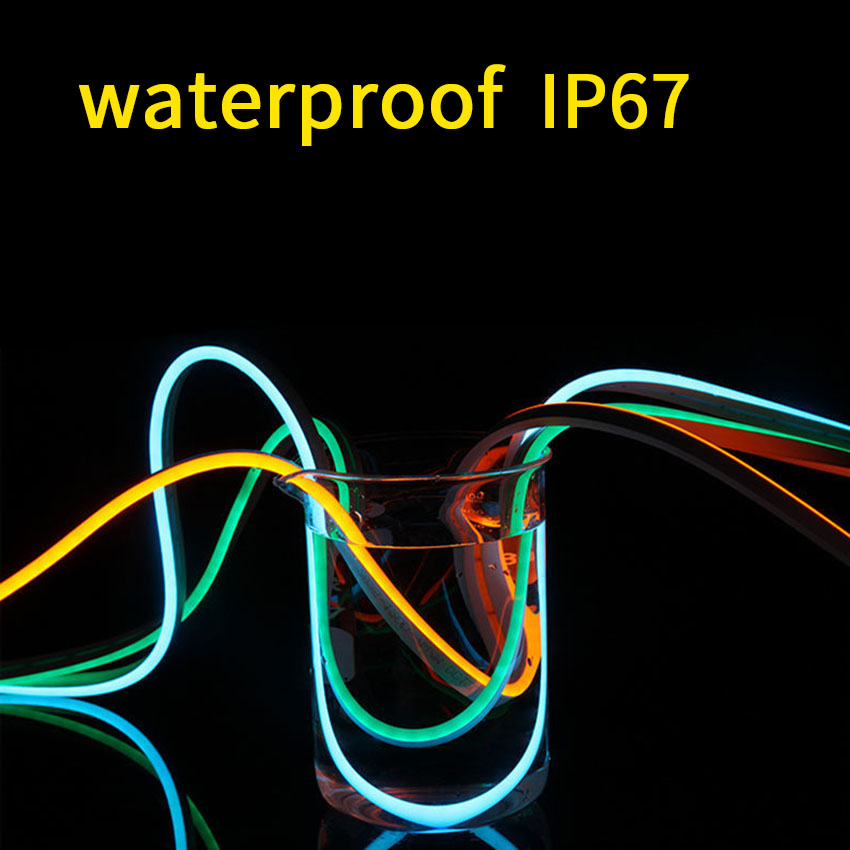

Here is the 16*15mm/0.63*0.59inLED neon sign lights with various white light color temperatures and other solid light colors, warpped 2835 LED light strips in the flexible silicone diffuser tube, soft linear light, no light spot. Using food grade silicone material, the led neon lights are IP67 waterproof, suitable for advertising lighting, making neon signs (you can use this soft silicone neon tube light to diy neon name signs, neon sign font, etc.), and apply for outdoor lighting.
Here you can purchase the led neon white light sign, red neon sign, green neon sign, blue neon sign, pink neon sign, and yellow neon sign. IP20 and IP67 neon light kit are available.
Neon Light Kit:
If you have requirements for other single color LED controller, you can visit our single color dimmer series.
Standards and Certifications

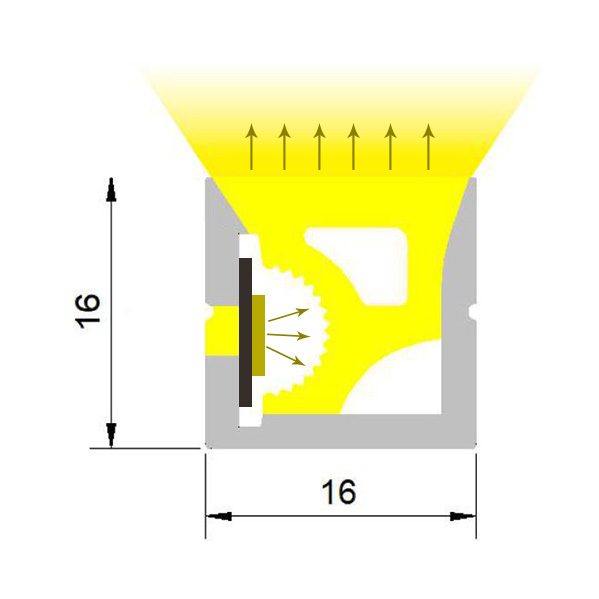

|LED Product Type:||Neon Signs Lights 16*15mm Size Side Emitting|
|LED Chip:||2835 SMD LED|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Colors:||2700K/3000K warm white, 4000K natural white, 6000K daylight white, red, green, blue, pink, yellow|
|Max Bending Length:||200mm/7.87in|
|LED Quantity:||120LEDs/m; 37LEDs/Ft|
|Input Voltage(V):||24 VDC|
|Working Power:||10W/m, 50W /16.4ft Max → Informations About LED Power Supply|
|Material:||Food grade silicone|
|Waterproof Rating:||Waterproof IP67|
|Beam Pattern:||120 degree|
How To Install LED Neon Lights?
1. cut and install led neon sign light:

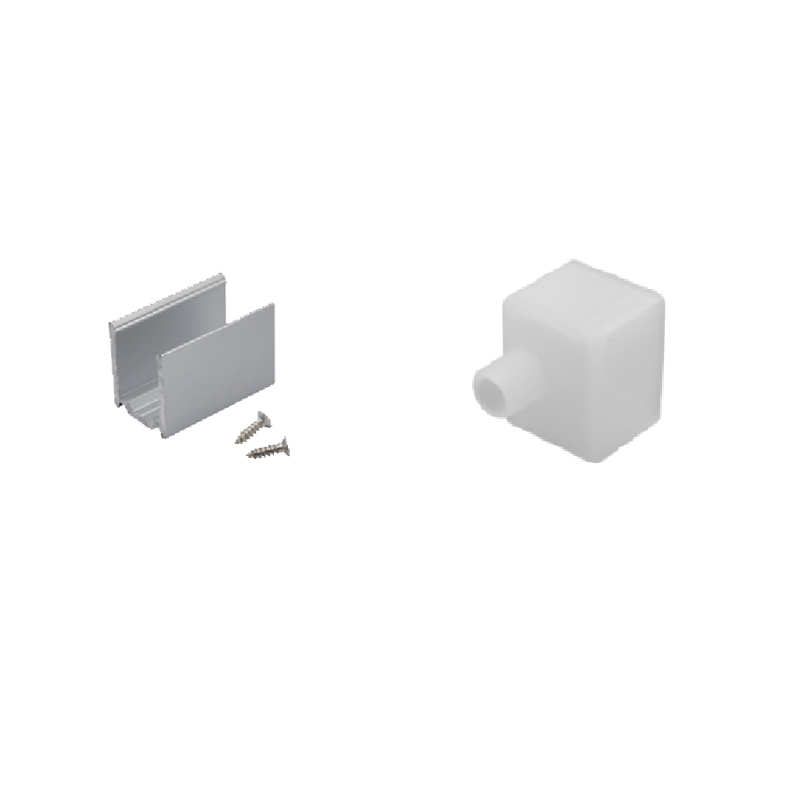

There are three installation methods for the led neon strip lights. One is to install with mounting clips, per meter 2 PCS. The second is to put the flex led neon tube light into the aluminum channel for linear lighting projects. And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
3. How to Repair LED Neon Strip Lights?
4. How to Make Neon Signs? LED neon light signs wiring diagram:
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
