Special Price: $17.98

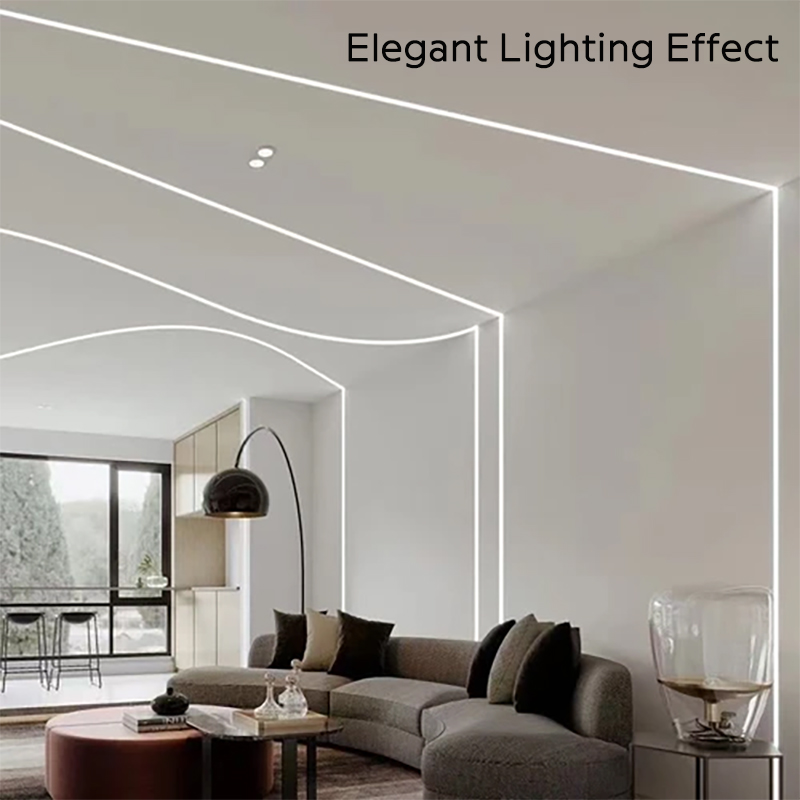

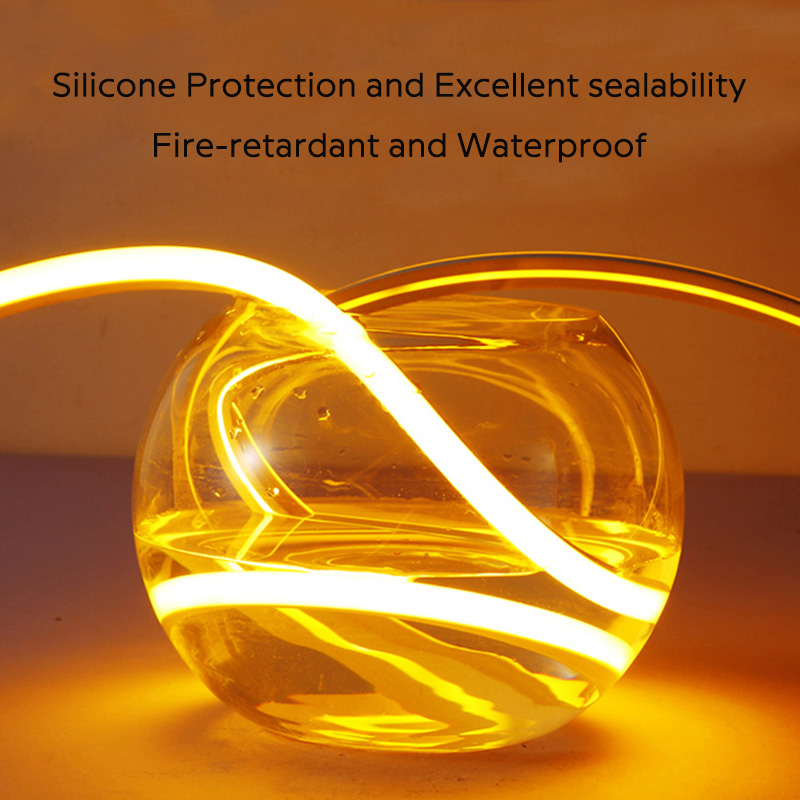

Check this top emitting neon flex led strip light with multiple sizes and various colors to choose, suitable for recessed mounting design. These bendable neon lights can be cut to custom length, effuse uniform spotless soft light line and form any shape you like. Made of silicone material, our led neon light tube is low voltage, fire-retardant, IP67 waterproof and safe to touch when powered on, ideal for outdoor use and recommended in concealed slots, showrooms, offices, living rooms and occasions without main light plan. Please note that the endcaps need to be sealed with silicon glue to make sure whole waterproof.
If select kit, will send SPS12-48V400W as power supply, PSPS-24V-120W as power adapter and PSWP-24V-120W for outdoor power supply use. We will match kit items according to the selected neon LED lights. For further information, please click on the blue font to check.

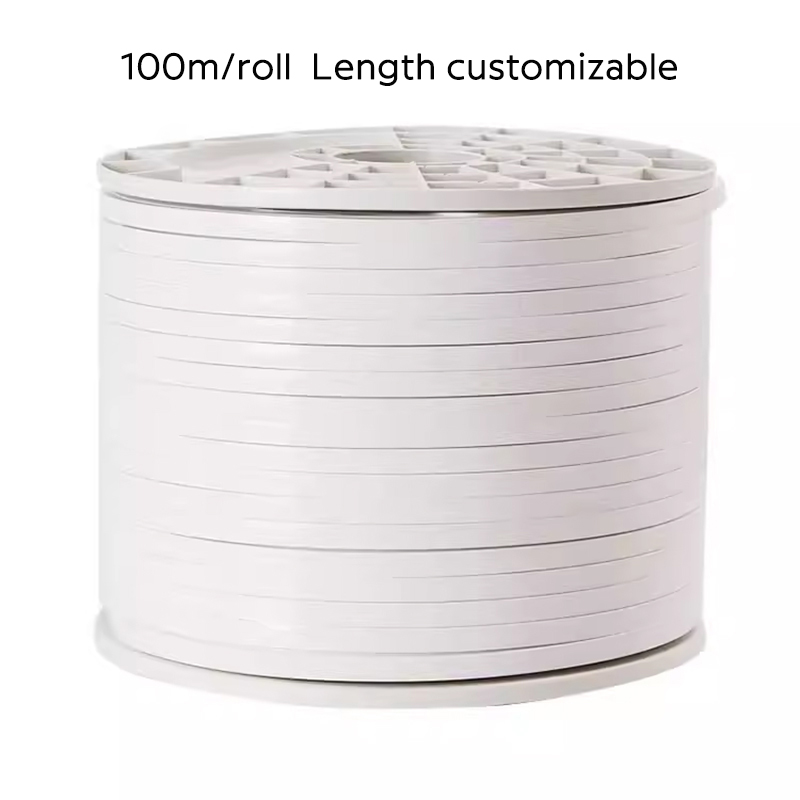

For customised lengths, please add 5 metre pieces accordingly to reach the cumulative length and leave your requirement in reminder.
12V light can run 5 meters with single-sided power supply, and 10 meters with dual-sided power supply. 24V light can run 10 meters with single-sided power supply, and 20 meters with dual-sided power supply.
Note: Three ways to mount neon lights
1) With mounting clips, easy operation
2) With aluminum channel, for linear lighting
3) With flexible profiles, great bending freedom
Product Specifications
Product Type:
|
Top lighting Neon Led Strip Lights
|
Light Source:
|
LED
|
Working Temperature:
|
-25°C ~ 50°C
|
Light Colors:
|
White, Red, Blue, Ice blue, Yellow
|
Input Voltage:
|
DC 12V/24V
|
Lumen:
|
800lm
|
Material:
|
Food grade silicone
|
Waterproof Rating:
|
IP67
|
Beam Angle:
|
180 degree
|
Specification for different sizes
Dimension
|
W8mm*H7mm
|
W10mm*H10mm
|
W12mm*H12mm
|
W14mm*H14mm
|
W16mm*H16mm
|
W20mm*H10mm
|
W20mm*H14mm
|
Working Power
|
8W/m
|
10W/m
|
10W/m
|
10W/m
|
10W/m
|
14.5W/m
|
14.5W/m
|
CRI(Ra>)
|
≥80
|
≥90
|
≥95
|
||||
Input Voltage and Cutting Length
|
DC 12V cut every 2.5cm / DC 24V cut every 1cm
|
DC 12V cut every 1.5cm / DC 24V cut every 3.5cm
|
Dimension
|
W20mm*H20mm
|
W30mm*H20mm
|
W40mm*H25mm
|
W50mm*H25mm
|
W40mm*H20mm
|
W50mm*H20mm
|
W50mm*H15mm
|
Working Power
|
14.5W/m
|
17.5W/m
|
17.5W/m
|
20.5W/m
|
20.5W/m
|
20.5W/m
|
20.5W/m
|
CRI(Ra>)
|
≥95
|
||||||
Input Voltage and Cutting Length
|
DC 12V / DC24V cut every 2.5cm
|
