Special Price: $79.98

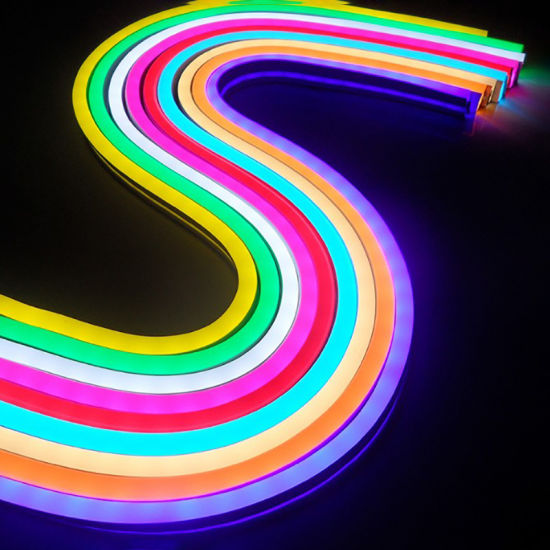

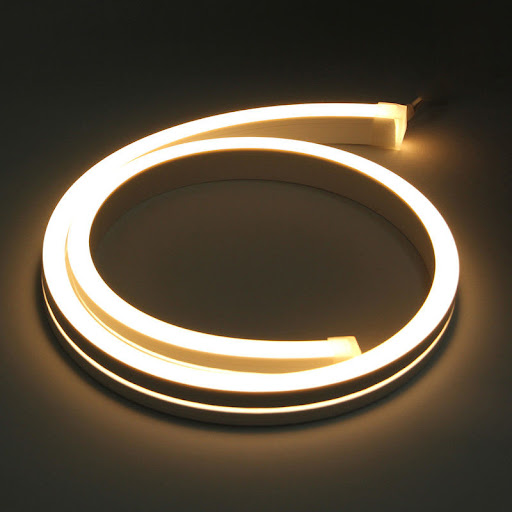

Here is the 30*20mm top-emitting flex led neon tube light with various solid colors and dynamic light colors (white, red, green, blue, pink, yellow, CCT, RGB, RGBW), low power consumption than traditional glass neon lights. This led neon strip lights warp 2835 double row led strip lights in the flexible silicone neon tube, energy-saving, using food grade silicone material, with soft linear light and no light spot. And the white silicone channel is flexible and IP67 waterproof, suitable for decorative lighting and outdoor lighting. IP20 non-waterproof and IP67 waterproof neon light kit are available.
|
LED Neon Lighting Kit:
1. How to choose LED controller?
If you purchase the single color LED strip light, you can choose V1 + RT1 LED controller.
If you purchase the CCT LED strip light, you can choose V2+RT2 LED controller.
If you purchase the RGB/RGBW LED strip light, you can choose YL5/WL5 or VP+RT4 LED controller.
If you choose the LED strip light for outdoor environment, you can WL5-WP LED controller.
2. How to choose LED power supply?
To avoid the power load, the power of the LED power supply is 1.2 times the power of the LED strip light, for the 80W LED strip light, we recommend that you use the power of the LED power supply is above 96W. Otherwise, it will affect the brightness of the LEDs and the service life of the power supply.
| Power | Indoor | Outdoor |
| 80W LED strip | LRS-100-24 | PSWP-24V-100W |
| 100W LED strip | LRS-150-24 | PSWP-24V-120W |
| 120W LED strip | LRS-150-24 | PSWP-24V-150W |
Standards and Certifications
| LED Product Type: | DC24V 30*20mm Wide Flexible LED Neon Strip Light |
| Light Source: | 2835 SMD LED |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| Light Colors: | 2700K/3000K warm white, 4000K natural white, 6500K daylight white, red, green, blue, pink, yellow, CCT, multi color RGB, RGBW |

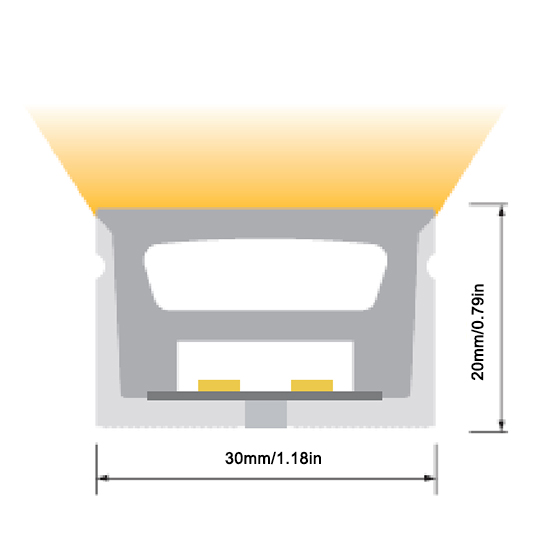

| Size: | 5000*30*20mm, 50mm/1.97in Min cut length |
| LED Quantity: | 144/240 LEDs per meter, 73LEDs/Ft double row (single color); 88LEDs/Ft double row (CCT/RGB/RGBW) |
| Lifespan: | 30,000+hours |

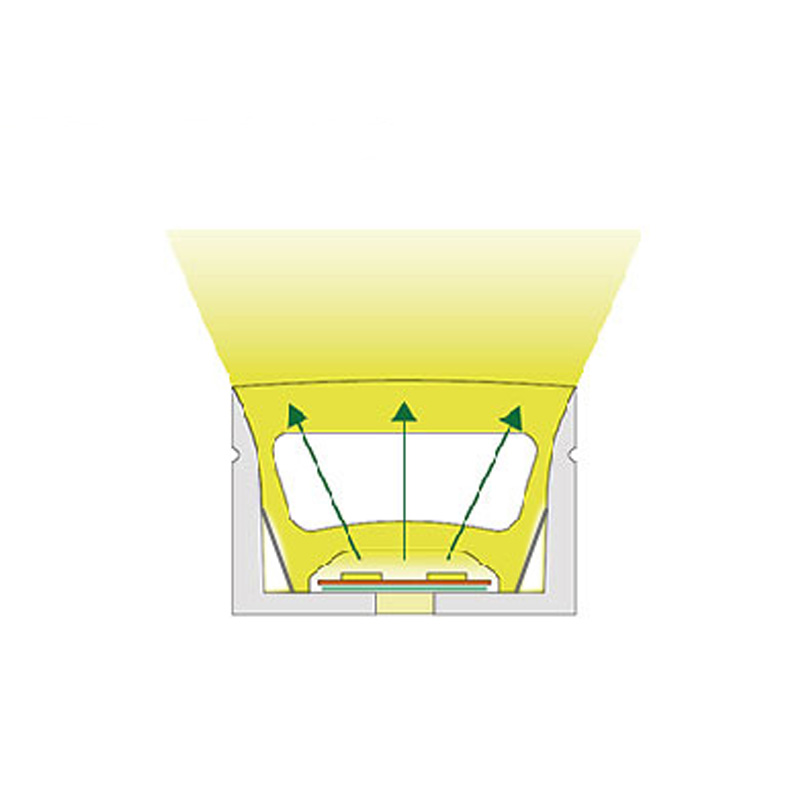

| Luminous Way: | Top emitting |
| Input Voltage(V): | 24 VDC |
| Working Power: | 16/20/24W per 3.28Ft, 80/100/120W per roll |
| Material: | Food grade silicone |
| Waterproof Rating: | Waterproof IP67 |
| CRI(Ra>): | 95 (single color/CCT) |
| Beam Pattern: | 120 degree |
How To Install LED Neon Lights?
1. Cut and install led neon sign light:

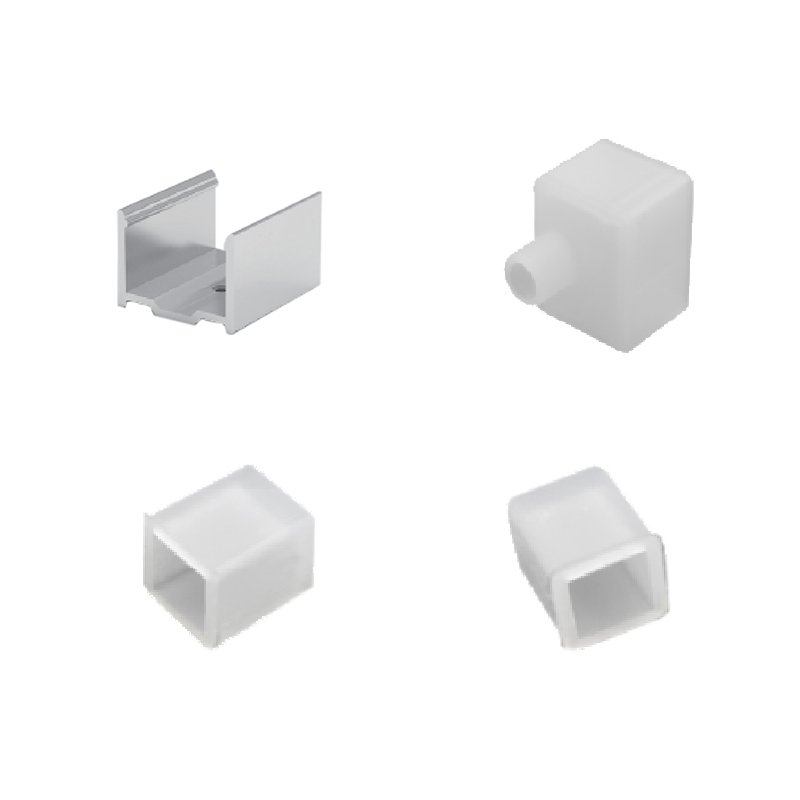

There are three installation methods for the led neon strip lights. One is to install with mounting clips (not inlcuded). The second is to put the flex led neon tube light into the aluminum channel for linear lighting projects. And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
3. How to Repair LED Neon Strip Lights?
a. Single color LED neon light wiring diagram:
b. CCT adjustable white neon light wiring diagram:
c. Multi-color RGB neon lights wiring diagram:
d. Color changing RGBW neon light wiring diagram:
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
