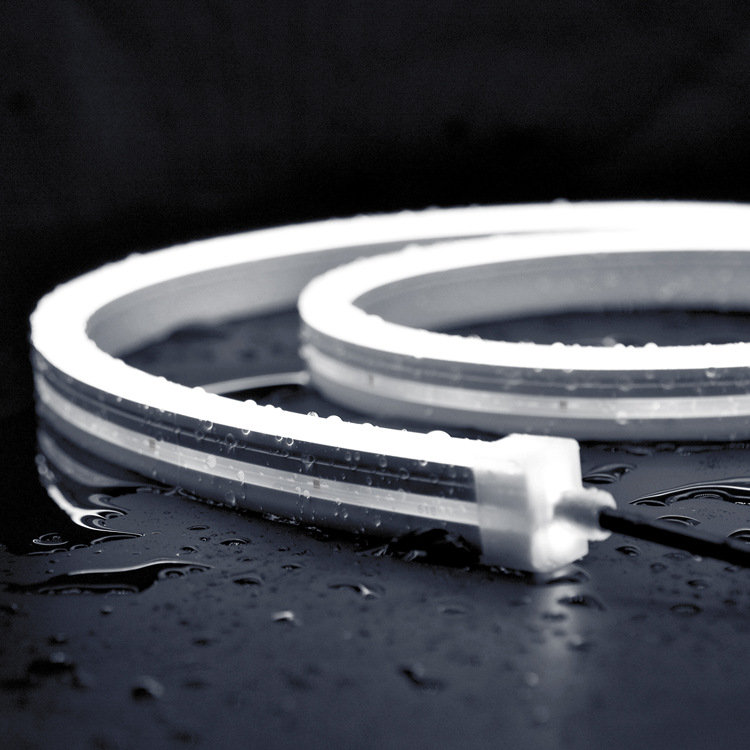

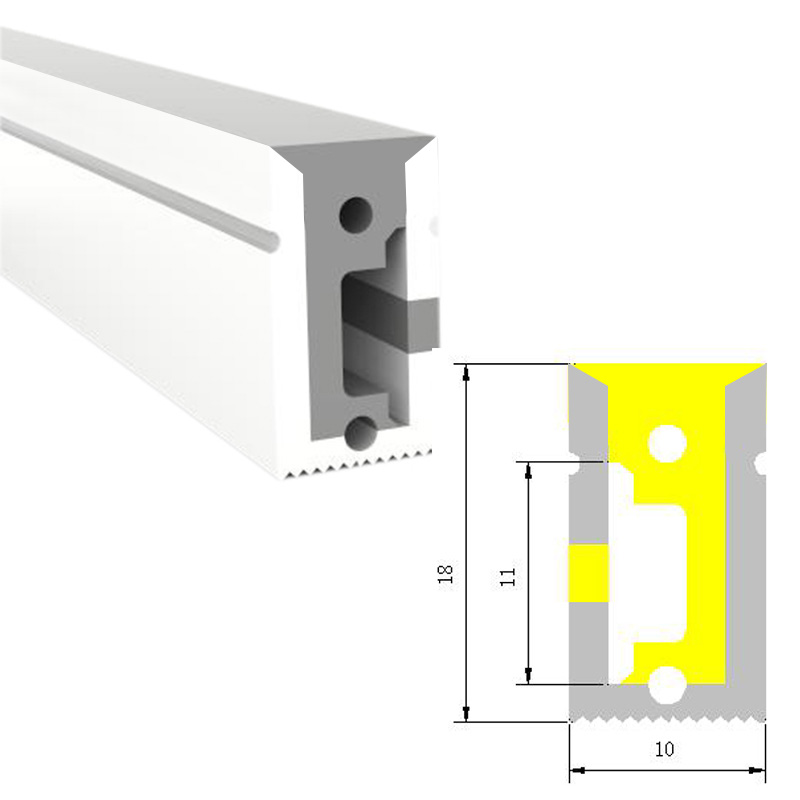

DC24V 16.4Ft 10*18mm Side Lighting Waterproof Multi-Color Optional Flexible LED Neon Light for Outdoor Lighting
Here is the 10*18mm side-emitting led neon signs light with various solid and color changing light colors, low power consumption than traditonal glass neon lights. This neon sign light adapt LED light source, energy-saving, using food grade silicone material, with soft linear light and no light spot. And the white silicone diffuser channel is flexible and IP67 waterproof, suitable for advertising lighting, making neon signs (you can use this flex neon tube light to diy neon name signs, neon sign font, etc.), and apply for outdoor lighting.
Here you can purchase the neon white light /CCT tunable white neon sign light, red neon sign light, green neon sign light, blue neon sign light, pink neon sign light, yellow neon sign light, and multi-color RGB neon sign light. IP20 non-waterproof and IP67 waterproof neon light kit are available.
LED Neon Lighting Kit:
If you choose the LED power supply in the kit, we will send you PSPS-24V-96W.
Standards and Certifications
|LED Product Type:||Neon Signs Lights 16.4ft Side Emitting|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Colors:||2700K/3000K warm white, 4000K natural white, 6000K daylight white, red, green, blue, pink, yellow, CCT, multi color RGB|
|LED Quantity:||96/120 LEDs per meter, 37LEDs/Ft(single color and CCT, RGB); 29LEDs/Ft(RGBW)|
|Luminous Way:||Side emitting|
|Input Voltage(V):||24 VDC|
|Working Power:||15W/m, 75W /16.4ft Max → Informations About LED Power Supply|
|Material:||Food grade silicone|
|Waterproof Rating:||Waterproof IP67|
|CRI(Ra>):||95 (single color/CCT)|
|Beam Pattern:||120 degree|
How To Install LED Neon Lights?
1. Cut and install led neon sign light:

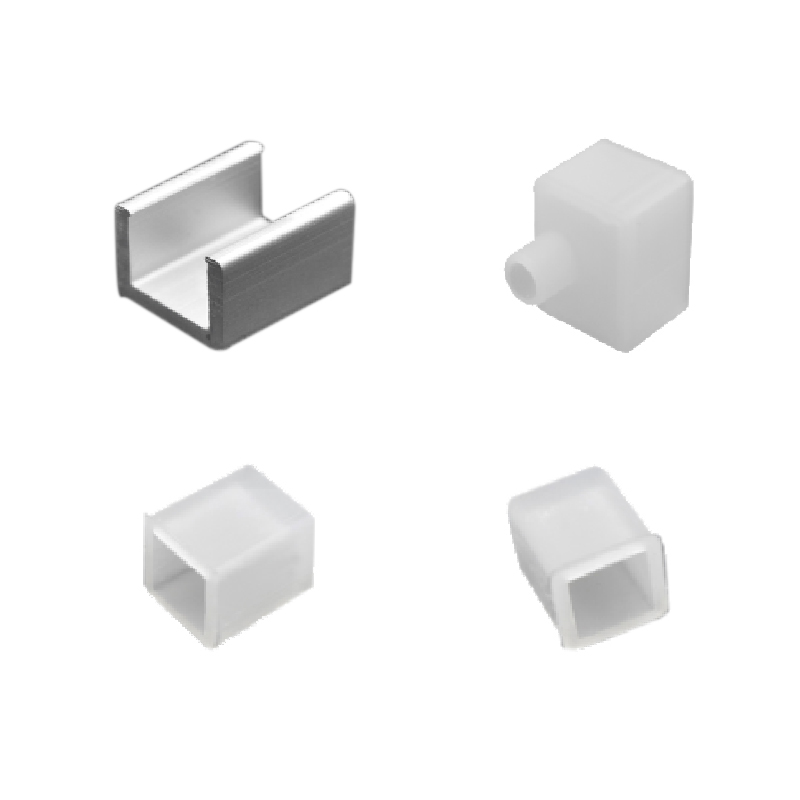

There are three installation methods for the led neon strip lights. One is to install with mounting clips, per meter 2 PCS. The second is to put the flex led neon tube light into the aluminum channel for linear lighting projects. And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
3. How to Repair LED Neon Strip Lights?
a. Single color LED neon light signs wiring diagram:
b. CCT adjustable white neon light signs wiring diagram:
c. Multi-color RGB neon lights wiring diagram:
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
