DC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube Light

Model: DCFLS-SCNEON-1023X600
DC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube Light
  • DC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube Light
  • DC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube Light
  • DC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube Light
  • DC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube Light
  • DC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube Light
  • DC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube Light

Select Specifications:

Starting at: $69.98 $54.9821% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$54.98
5-19
$68.58
20-49
$66.48
50+
$64.38
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

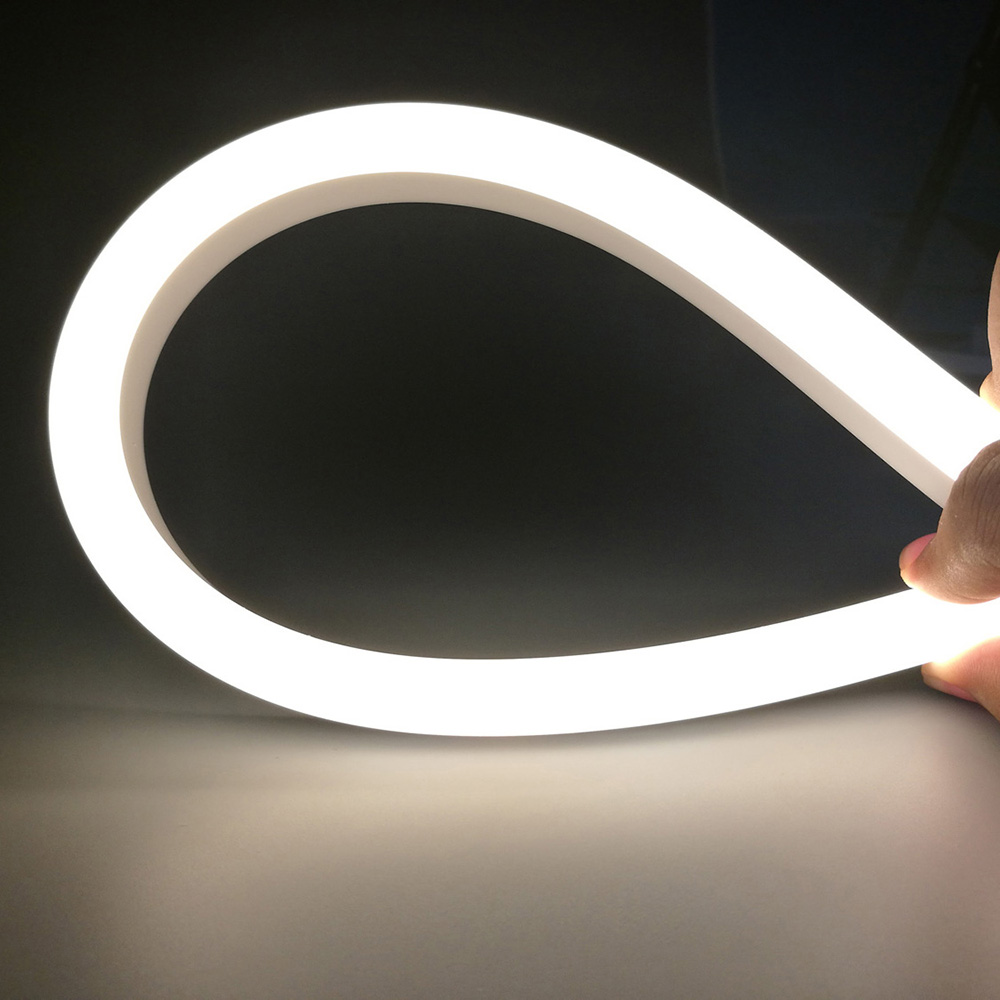

    Here is the 10*23mm side-emitting dome top led neon flex tube light with various solid colors and color changing dynamic light colors. This neon flex tube light adapts LED light source, energy-saving, using food grade silicone material, with soft no spot light.

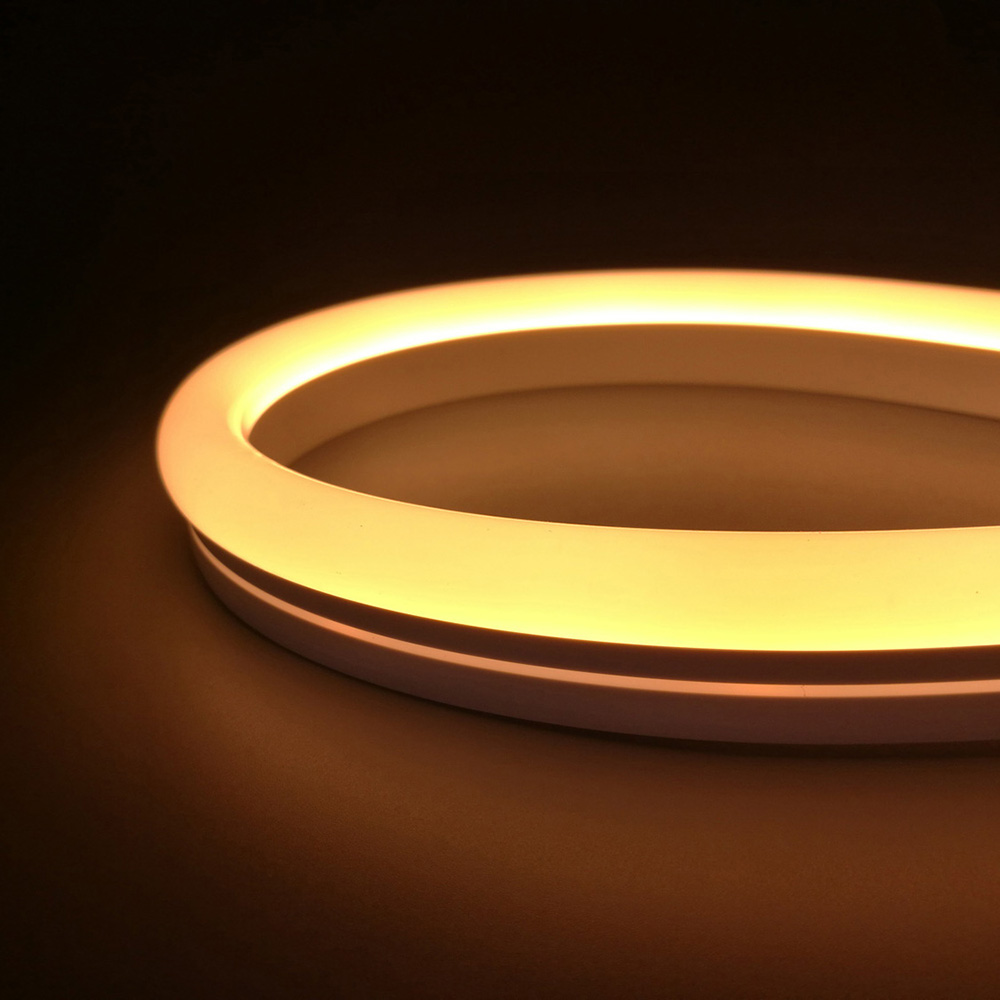

    The side-illuminated dome neon tube light has a dome shape, which provides a greater light range than flat neon lighting fixtures. The dome design of this led neon flex tube allows the light to emanate evenly into the surrounding area, enhancing uniformity and comprehensiveness of illumination.

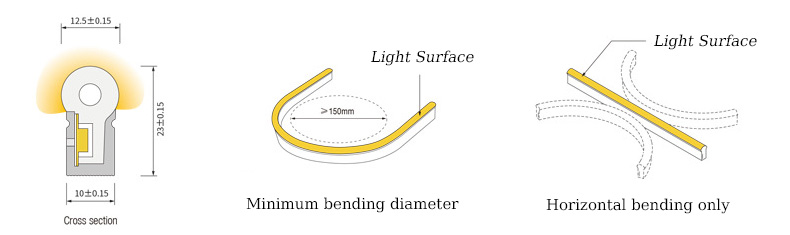

    • 1. 10*23mm flexible LED neon tube, the bending diameter is 150mm, suitable for making various forms and billboard signs.

    • 2. 480/600LEDs 16.4Ft high density, high light brightness without light spot

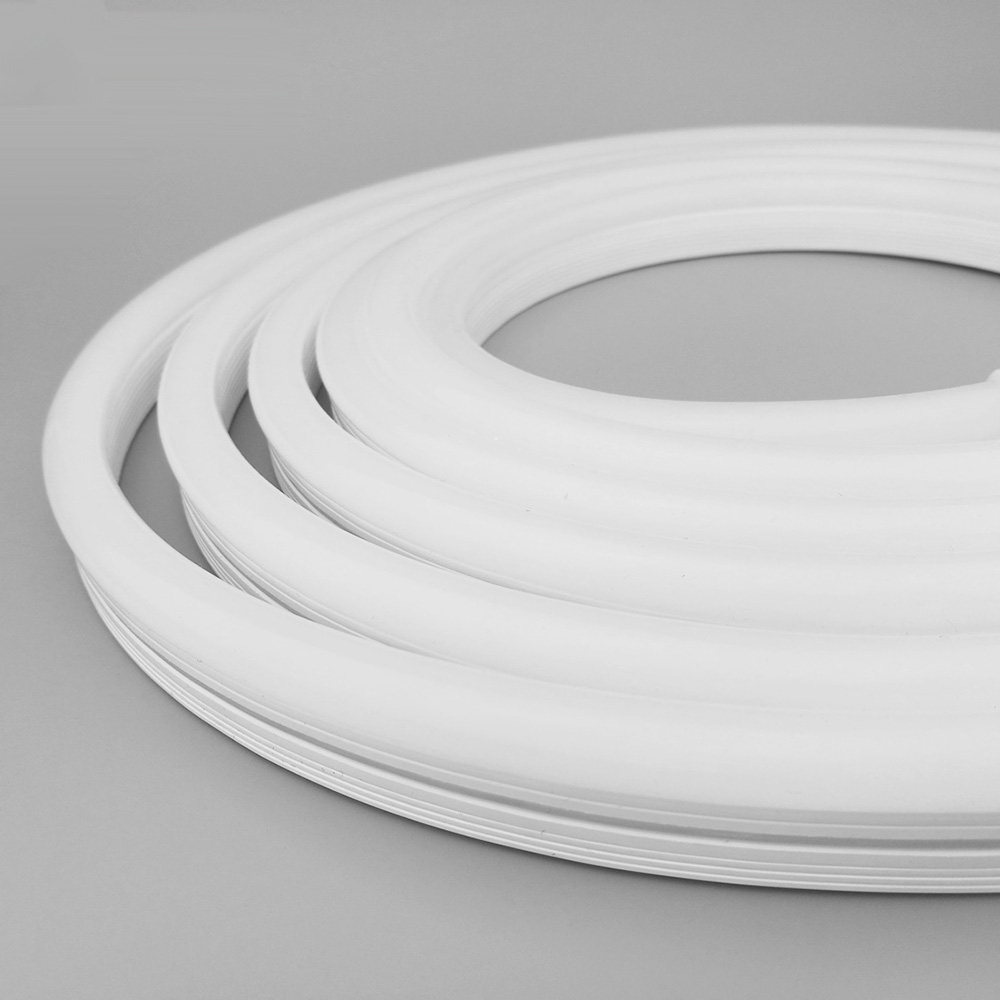

    • 3. Food grade silicone housing, weather resistance, anti-UV, soft and easy bent for installation.

    • 4. Multiple white light color temperatures and led light colors optional

    • 5. DC24V operation, 10m without voltage drop, good light effects.

    • 6. 95+ high CRI can restore the color and color temperature of the real environment.

    • 7. Achieve IP67 waterproof, arbitrary bending, tear and pull resistance, widely used in complex environments.

    1023 neon strip lights



    LED Neon Lighting Kit:

    If you choose the LED controller in the kit, we will send you V1 + RT1 for single color LED strip light or V2+RT2 for CCT led strip light or VP+RT4 for RGB/RGBW led strip light.

    If you choose the LED power supply in the kit, we will send you PSPS-24V-96W.

    If you choose the LED strip + IP67(controller+power supply), we will send you a WL5-WP 5in1 led controller and PSWP-24V-100W (including an AC plug) waterproof led power supply.





    Standards and Certifications

    24VDC CE FCC RoHS ISA SGS ISO LIFETIME warranty waterproof

    LED Product Type: Side Emitting Dome LED Neon Flex Tube Light
    Light Source: 2835 SMD LED for single color, 5050/4040SMD LED for RGB
    Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
    Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
    Light Colors: 2700K/3000K warm white, 4000K natural white, 6000K daylight white, red, green, blue, pink, yellow, CCT, multi color RGB

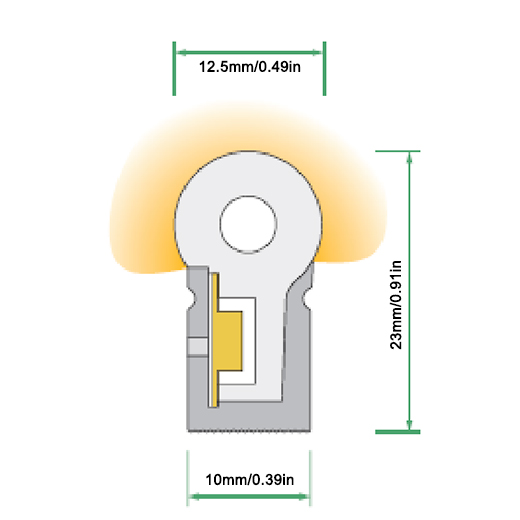

    Size:  5000*10*23mm
    LED Quantity: 120 LEDs per meter, 37LEDs/Ft
    Lifespan: 30,000+hours
    Luminous Way: Side emitting
    Input Voltage(V): 24 VDC
    Working Power: 15W/m, 75W /16.4ft  Max
    Material: Food grade silicone
    Waterproof Rating: Waterproof IP67
    CRI(Ra>): 95 (single color/CCT)
    Beam Pattern: 120 degree
    Lumen:  12lm/LED for 2835SMD, 20-22lm/LED for 5050/4040





    How To Install LED Neon Lights?

    1. cut led neon sign light:

    cut led neon strip lights

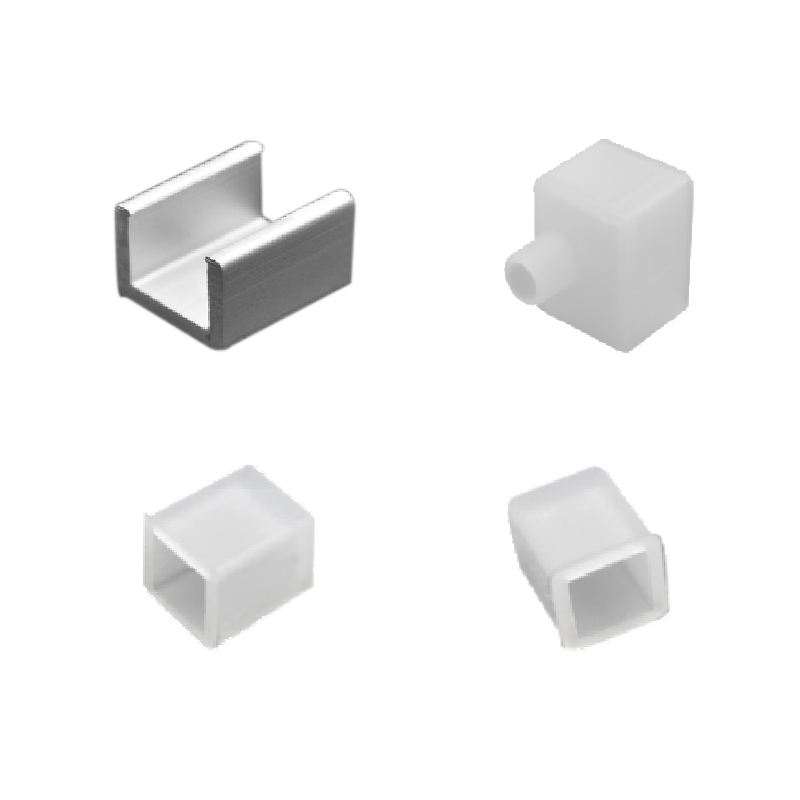

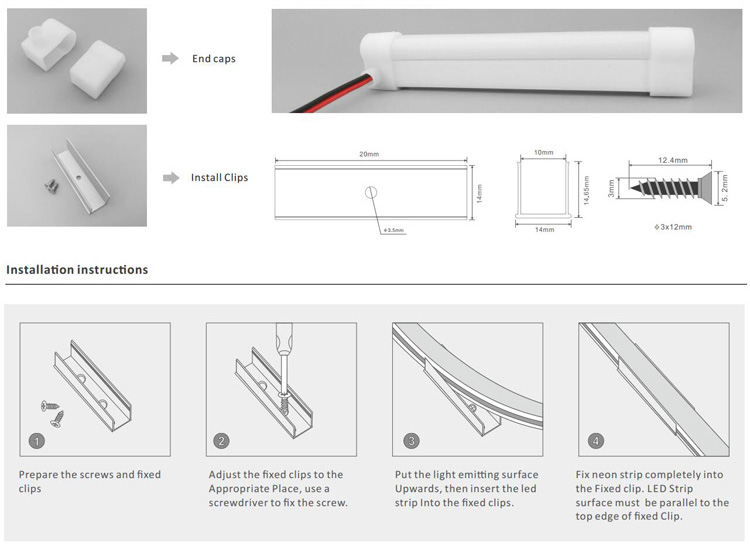

    2. Install led neon lights with end caps and mounting clips (not included)For more neon light accessories please click here

    how to make a neon strip lights

    How to Make Neon Lights?

    How to Repair LED Neon Strip Lights?

    a. Single color LED neon light signs wiring diagram:

    how to install single color led strip and led dimmer

    b. CCT adjustable white neon light signs wiring diagram:

    cct led strip dimmable wiring diagram

    c. Multi-color RGB neon lights wiring diagram:

    how to install rgb led strips

    DC24V 10*23mm Dome LED Neon Flex Tube LightDC24V 10*23mm Dome LED Neon Flex Tube Light

    DC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube Light

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    DC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube LightDC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube LightDC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube LightDC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube LightDC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube LightDC24V 16.4Ft 10*23mm Side Lighting Waterproof Multi-Color Optional Flex LED Neon Tube Light
