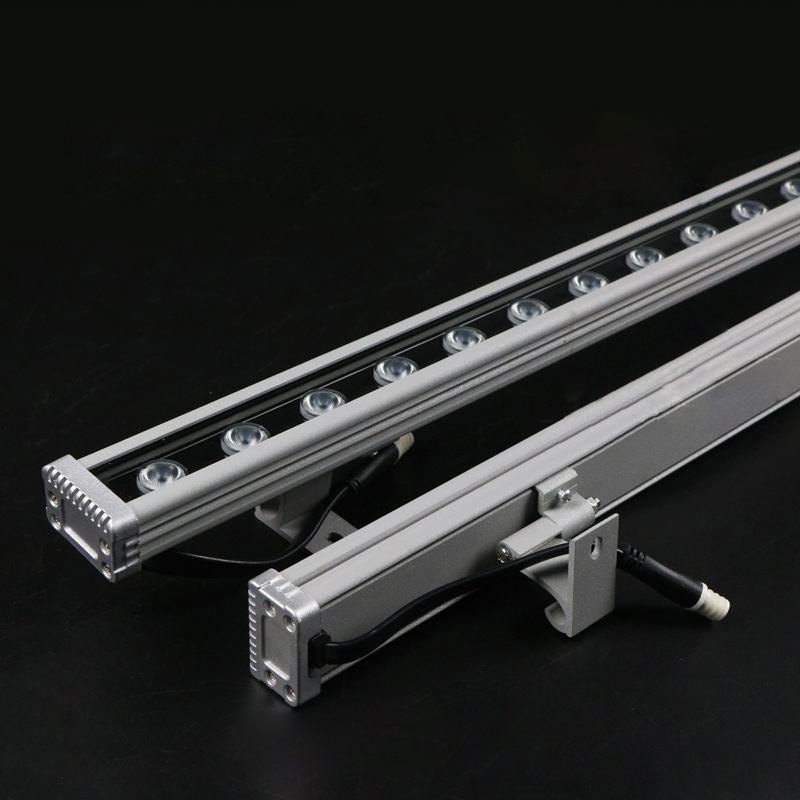

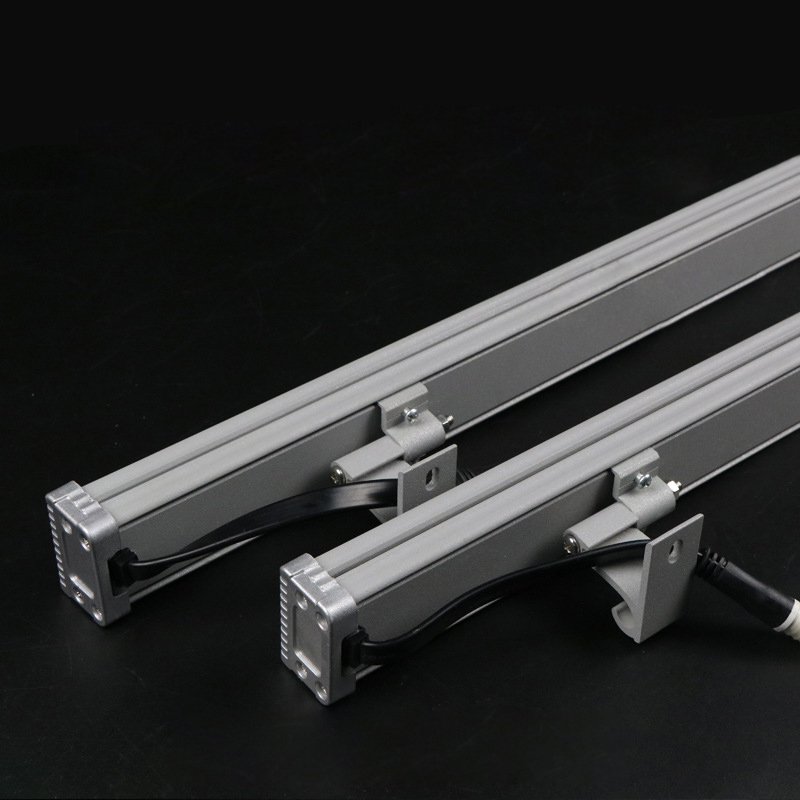

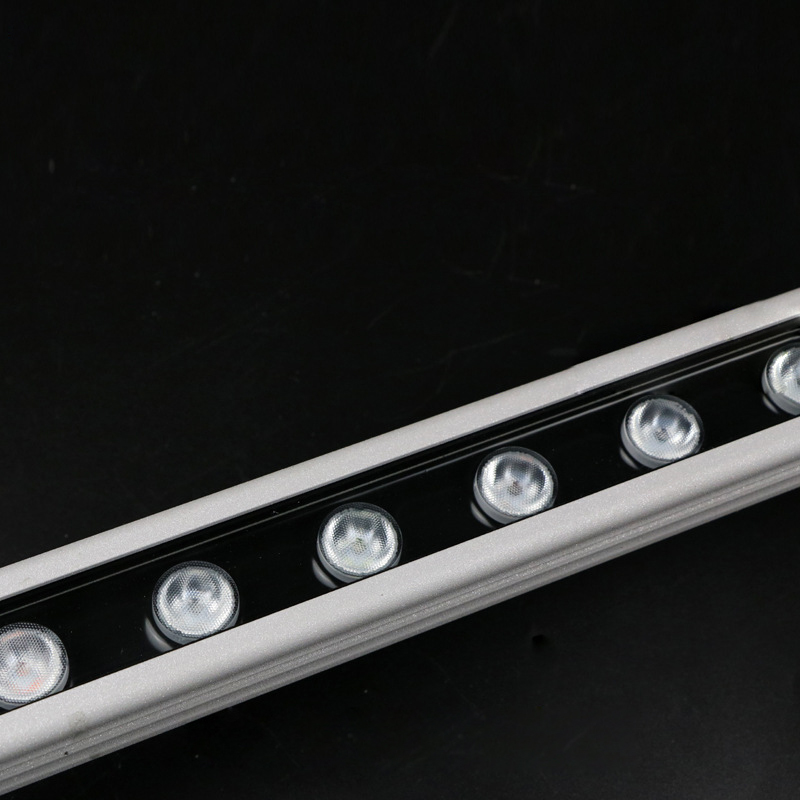

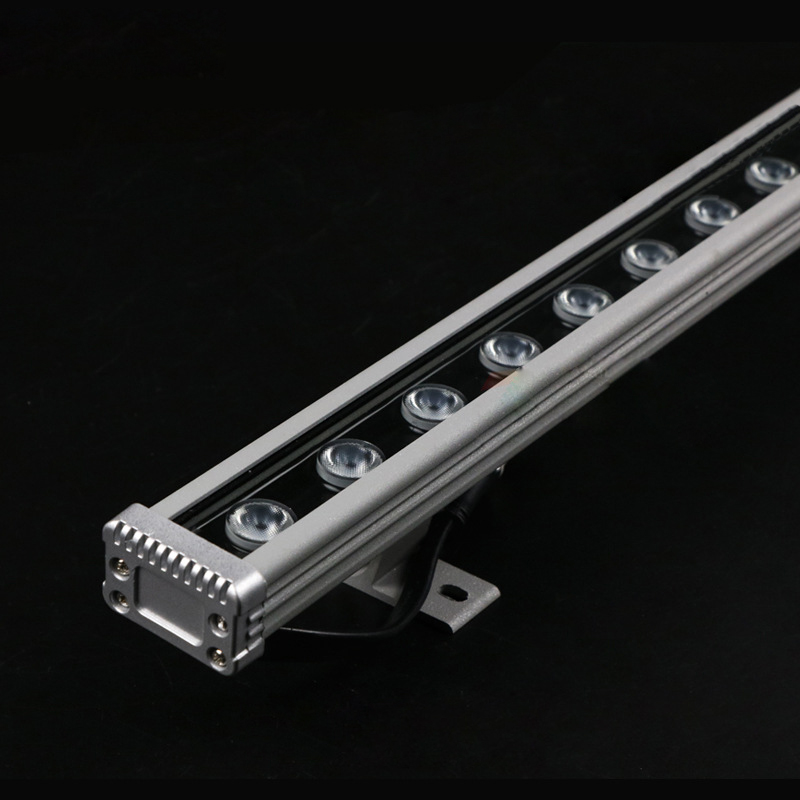

DC24V 18/24/36W 45X25mm White/Yellow Light Full Color DMX512 Addressable Outdoor Waterproof IP67 Aluminum Lens LED Wall Wash Lighting
1. Highlight 5050 LED chip: High transmittance, low energy consumption, long life, low light decay.
2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line.
3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance.
4. Luminous effect of the Linear LED Lighting is divided into single color and full color, single color has Warm White/Daylight White/Yellow, it usually uses for lighting. Full color has DMX512 Addressable, it supports seven color gradual change, jump, full-color scanning, chasing, running water, stacking, horse lamp effect, can also use multiple point light source to form dazzle color screen, background screen, pattern, animation, and other effects, so it usually uses for decorating.
5. Pure aluminum thickened panel: The inside is completely filled with glue and waterproof treatment, protection of lamp beads, wear - resistant pressure.
Standards and Certifications
LED Item: 18/24/36W Aluminum Lens LED Wall Wash Lighting
LED Model: QCY-XQ-03
LED Type: SMD LED Chips
Size of chip: 5050 SMD
Input voltage: DC24V
LED Lighting power: 18/24/36 Watt/ piece
Lamp bead quantity: 18/24/36LED
Light Color: Warm White/Daylight White/Yellow/DMX512
Fixture Dimensions: 45x20x1000mm (1.77''x0.79''x39.37'')
Brightness: high brightness
Grey level: 256
LED Lighting angle: 30
Color temperature: 2700-6500K
Working temperature: -30~40°C
Waterproof Rating: IP67
Luminous flux: 110LM
Control type: External control
Fixture Material: Aluminum
Certifications: RoHS, CE
LED Lifespan: 50000hours
Power wiring diagram
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
three-dimensional light-emitting word
Channel letters lighting
Light boxes lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
Edge lit signs
Off grid lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
