TM016 Touch Panel 0-10V Output Dimmer, LED Hight Voltage Dimmer

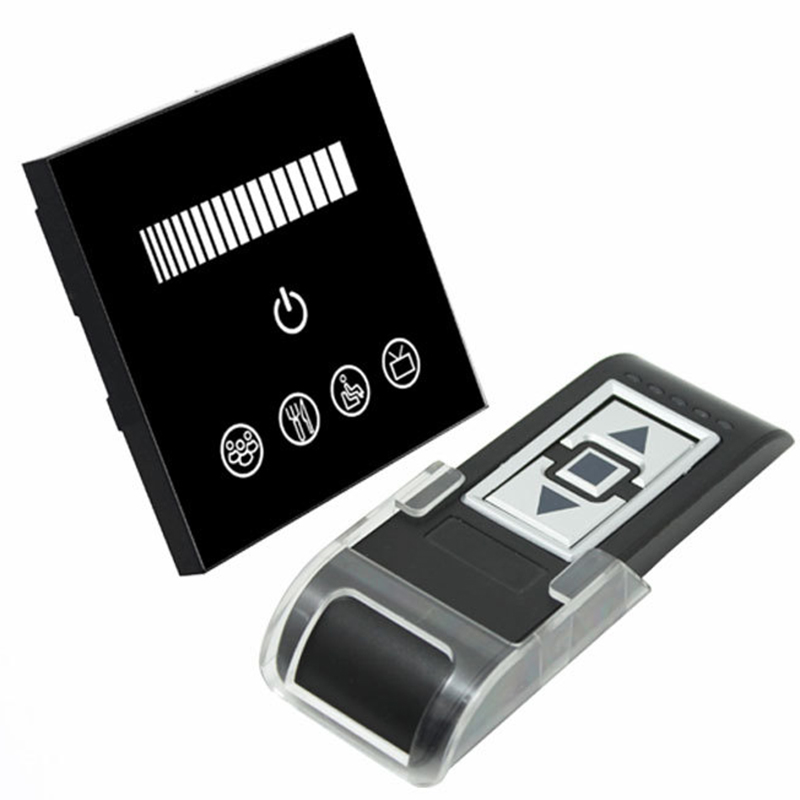

TM016 controller is a self-developed 0-10V dimmer that integrates wireless remote control and touch dimming. TM016 continues to maintain the advantages of precise dimming of low-voltage dimmers. The appearance of the glass panel design is beautiful. , fashion. High-precision capacitive touch control chip, increase the sensitivity of touch, reduce false triggering, use the wireless remote control to increase control flexibility, this product can also be equipped with two remote control to control it, easy to use, use software to code, increase Remote control adaptability. It provides a more comfortable, safe, and convenient intelligent lighting control effect than traditional lighting controllers, optimizing people's control experience of lighting, thus bringing users a new and comfortable lighting environment.
Working Voltage: 90～240VAC/50～60Hz
Output Signal: 0-10V
Working Power Consumption: <2W
Packing Size: L165×W135×H63 mm
Gross Weight: 315g
Output Power: <200W (load power of 0-10V dimming power supply)
Output Voltage: 90～240VAC/50～60Hz
Working Temperature: -20-60℃

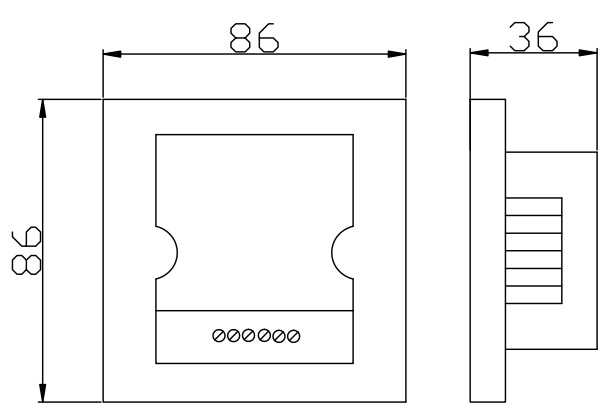

Dimensions: L86×W86×H36 mm
Net Weight: 153.6g

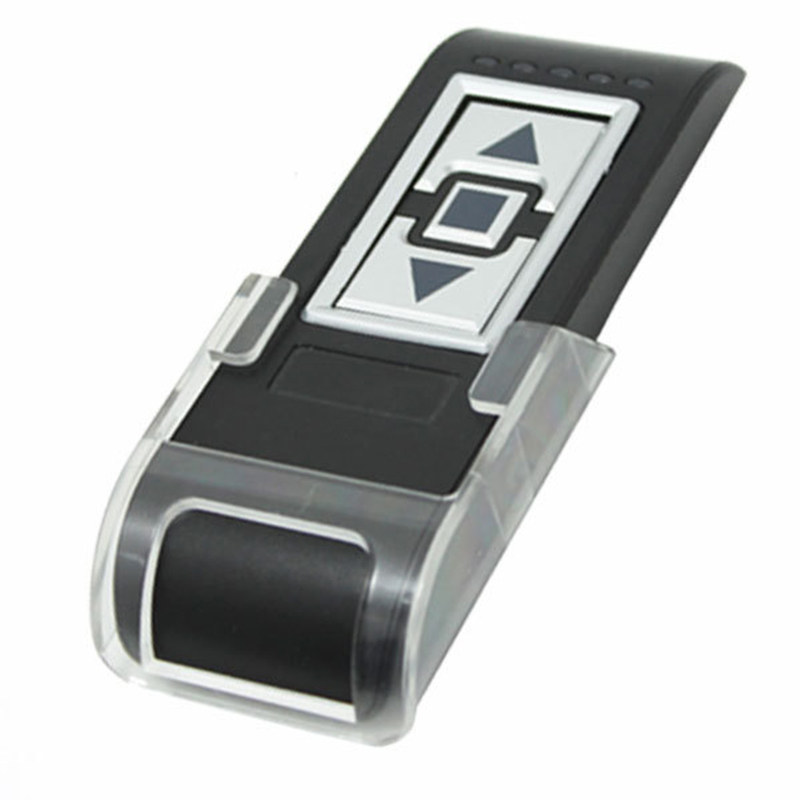

Remote Control Distance:> 20 meters
Instructions for use

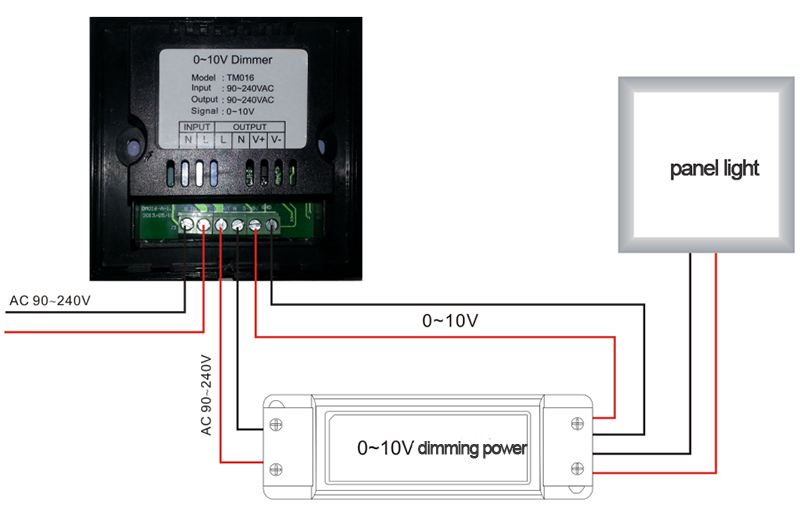

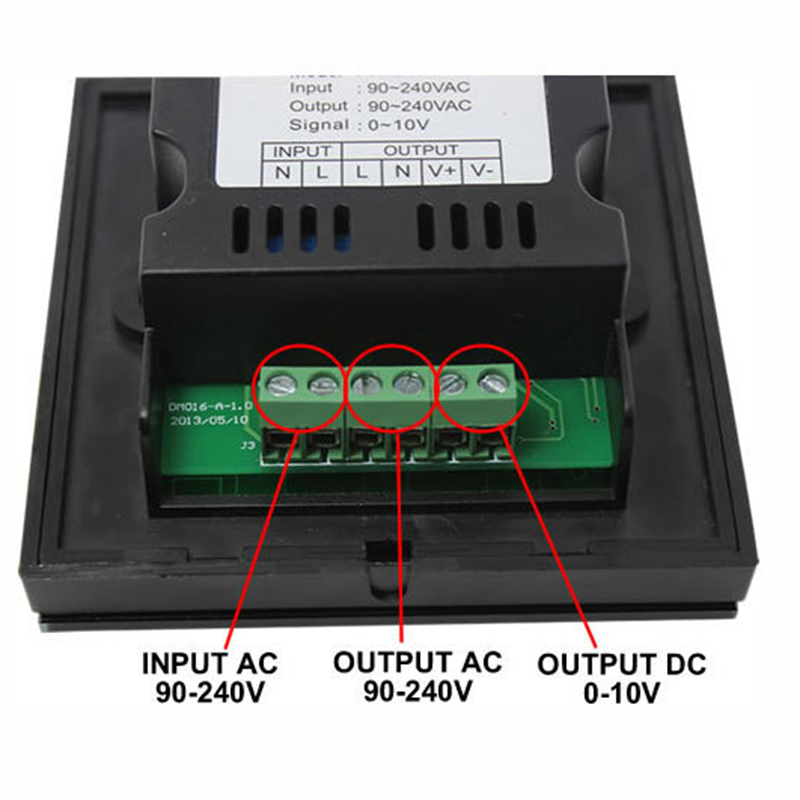

L: Power input live wire, the voltage range is 90～240VAC, 50～60Hz;
N: power input neutral line, the voltage range is 90～240VAC, 50～60Hz;
L: Relay output live wire (connected to the live wire interface of the 0-10V dimming power supply), the output voltage is 90 ~ 240VAC, 50 ~ 60Hz;
N: Relay output neutral line (connected to zero line interface of the 0-10V dimming power supply), the output voltage is 90～240VAC, 50～60Hz;
V+: output 0-10V signal positive;
V-: output 0-10V signal negative.

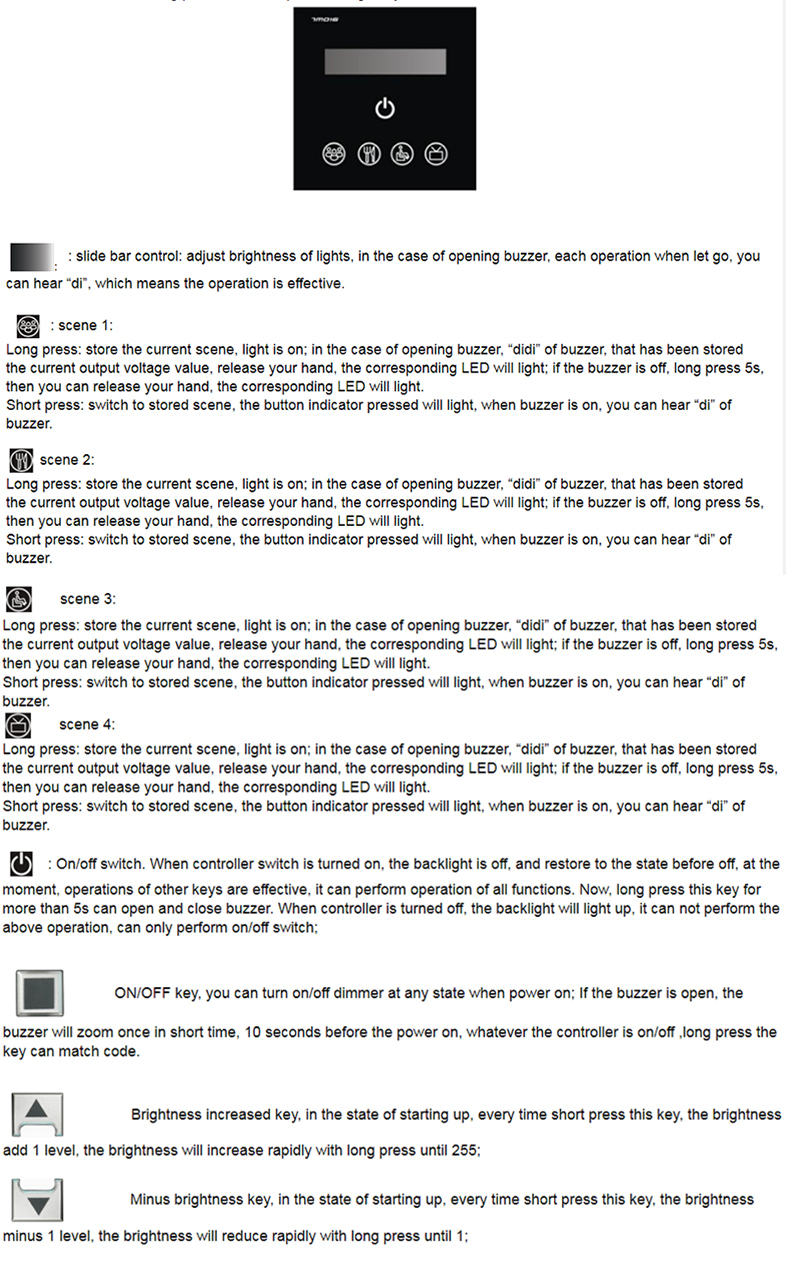

This product has a storage function of 4 scenes, which can meet the application occasions of various needs of users. Users can set the output type of related scenes according to their own needs. When any scene needs to be recalled, they can be recalled by pressing the scene you set, which is very convenient. This product has a total of six buttons and a remote control, simple operation, easy to get started. The use of computer digital chips has the characteristics of high reliability and accuracy, and also has the functions of the long press and short press, which can greatly reduce misoperation.

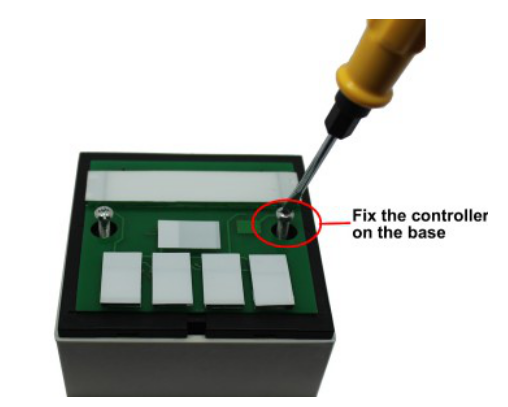

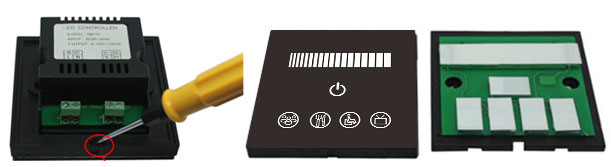

1. Use a "one" screwdriver to gently pry at the notch of the touch panel and slowly remove the panel, as shown in the following figure:
2. Fix the bottom case of the controller in the 86×86 installation box on the wall (the installation box needs to be purchased by the customer), as shown in the following figure:
3. Put on the cover of the controller glass panel that was dismantled before, and the installation is completed, as shown in the figure below:
1. Please do not install the controller in a closed, high magnetic field area;
2. Check whether the voltage and power supply match this controller;
3. Before powering on, please check whether the line is correctly connected, and use the instrument to test whether there is a short circuit;
4. When there is a problem, please do not open the casing of the controller while power is on to prevent electric shock.
