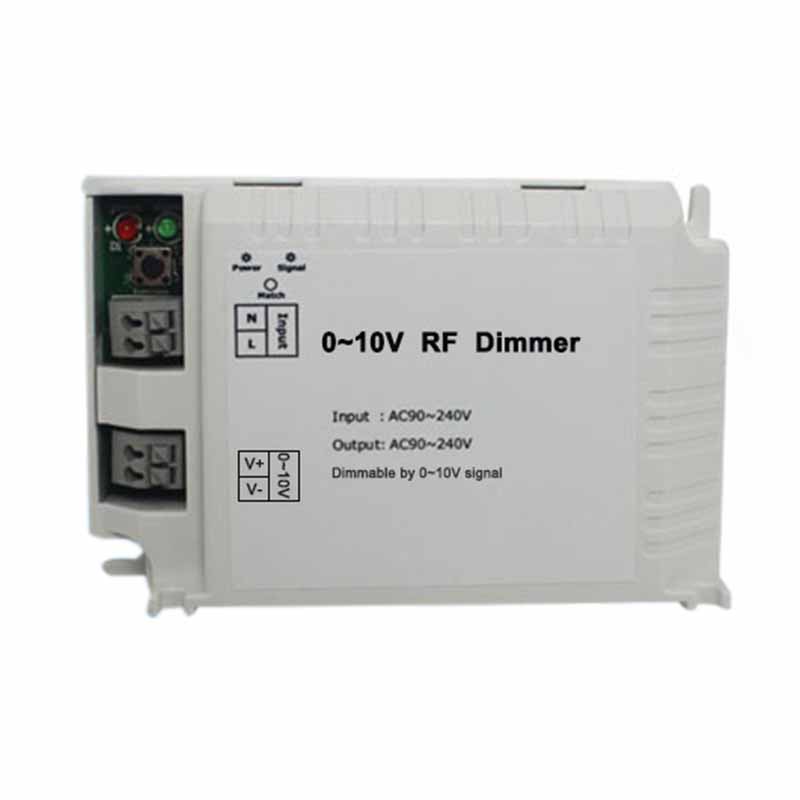

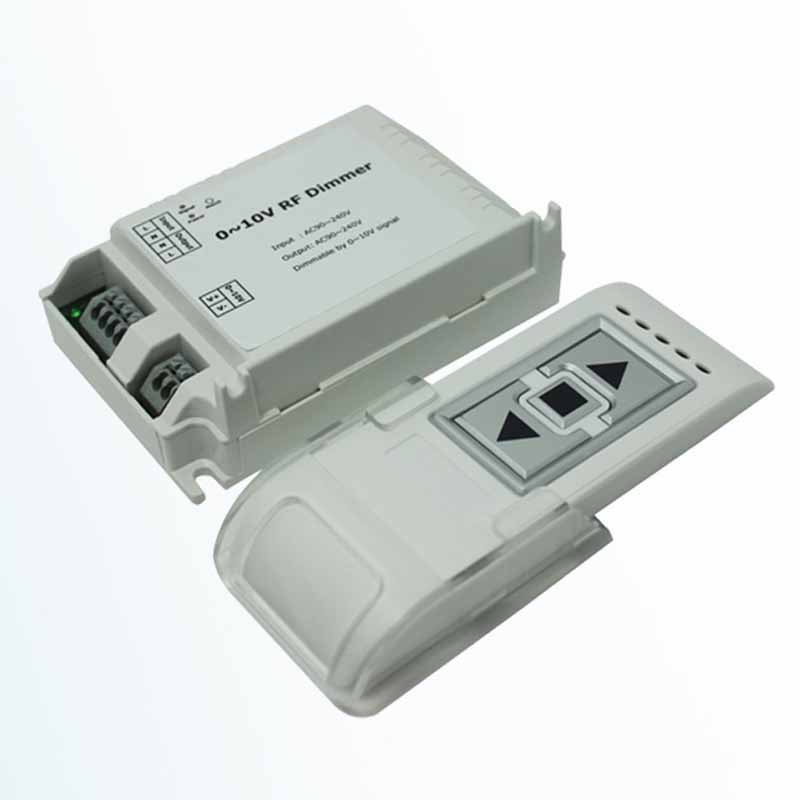

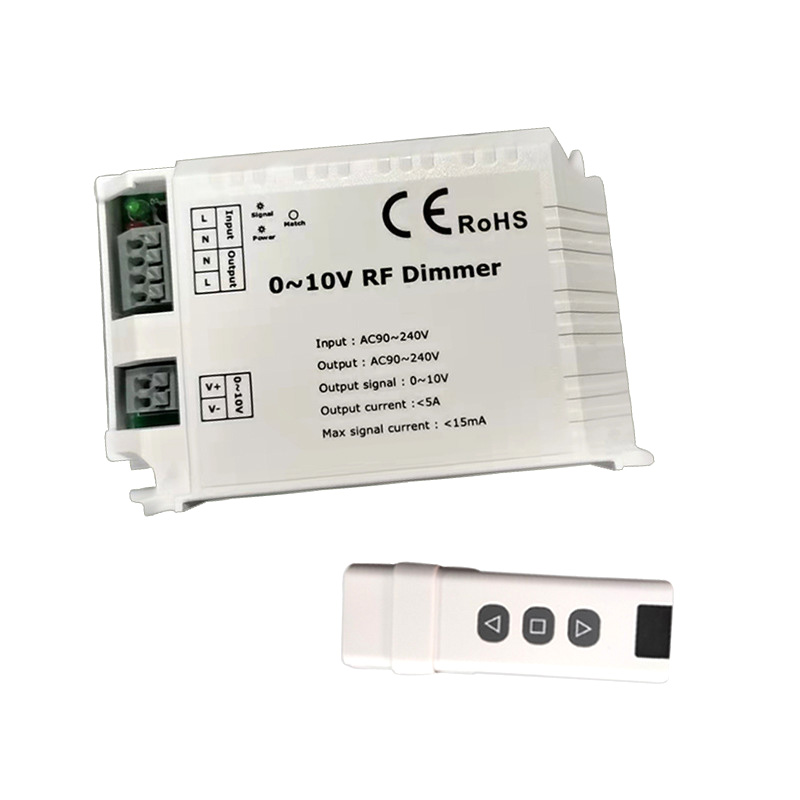

DM015 AC90～240V 1 Channel Wireless Remote Control 0-10V Waterproof Dimmer
The DM015 dimmer is a 0-10 dimmer with wireless remote control. The DM015 inherits the advantages of a low-voltage controller. It uses a wireless remote control to control two remote controls at the same time. It is convenient to control. The shell is made of high-quality white plastic. It is unified with the remote controller's colour, and pay attention to the aesthetics of the line design. The light and hardware optimization of the light adjustment effect provides you with a more comfortable, safe, and convenient intelligent light control than the traditional light controller, which brings users a new and comfortable Lighting environment.
Name: Wireless remote control 0-10V dimmer
Working Temperature: -20-60 ℃
Remote Control Distance: <20 meters
Power Supply Voltage: 90～240VAC, 50～60Hz
Output Voltage: 90～240VAC, 50～60Hz
Output: 1 Channel
Output ignal: 0-10V
0-10V Output Current: <15mA
Static Power Consumption: <3W
Relay Output Power: <200W
Shell Material: Plastic

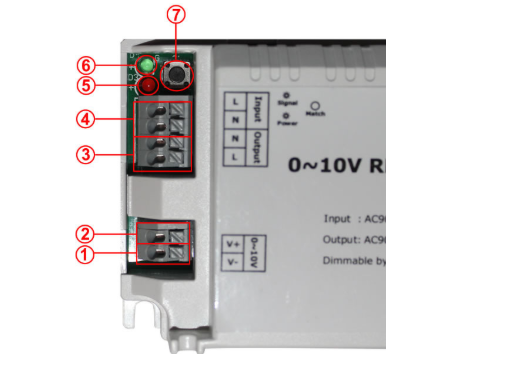

①: V-, output 0-10V signal negative;
②: V+, output 0-10V signal positive;
③: Output, relay output interface (0-10V dimmer power input interface), the output voltage is 90 ~ 240VAC, 50 ~ 60Hz;
④: Input, power input interface, the input voltage is 90 ~ 240VAC, 50 ~ 60Hz;
⑤: Power red light, when the controller power supply is normal, the Power red light is always on;
⑥: Signal green light, when the controller is processing the remote control signal, the Signal green indicator light flashes;
⑦: Match remote control code key. The controller can be equipped with two remote controllers to control it. Use a sharp non-conductive object to hold down the code matching button on the controller, and at the same time long press the key on the remote control for more than 3 seconds to complete the code matching, the load light will flash when the code is successful. The load light of the first paired remote control will flash 3 times, and the load light of the paired second remote control will flash 6 times. After that, each code pairing will replace the remote control that was previously paired.

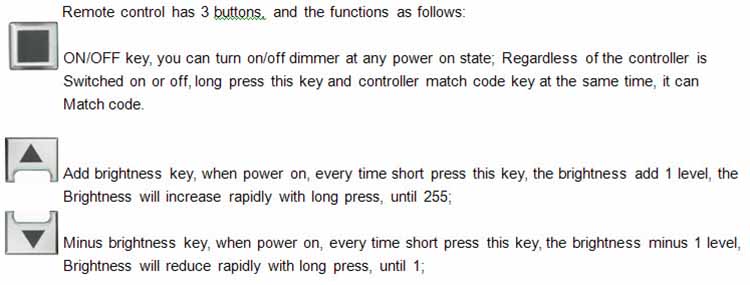

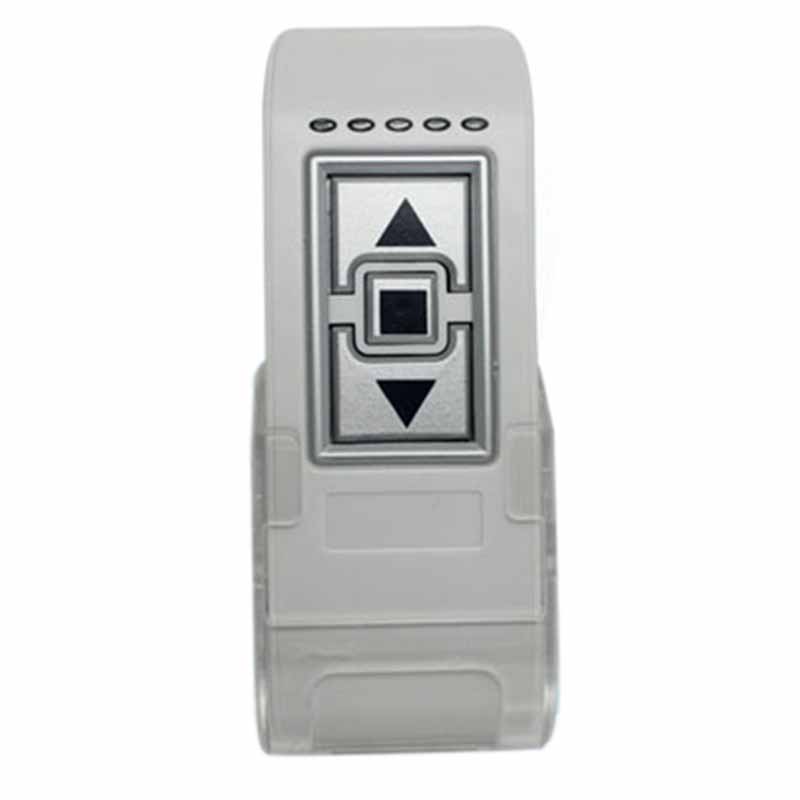

There are three buttons on the remote controller of the controller:
Code operation instructions: The controller can be equipped with two remote controllers to control it together. Long press the switch key on the remote control and the code matching button of the controller for more than 3 seconds to complete the code matching, the load light will flash prompt when the code is successful. The load light of the first paired remote control will flash 3 times, and the load light of the paired second remote control will flash 6 times. After that, each code pairing will replace the remote control that was previously paired.

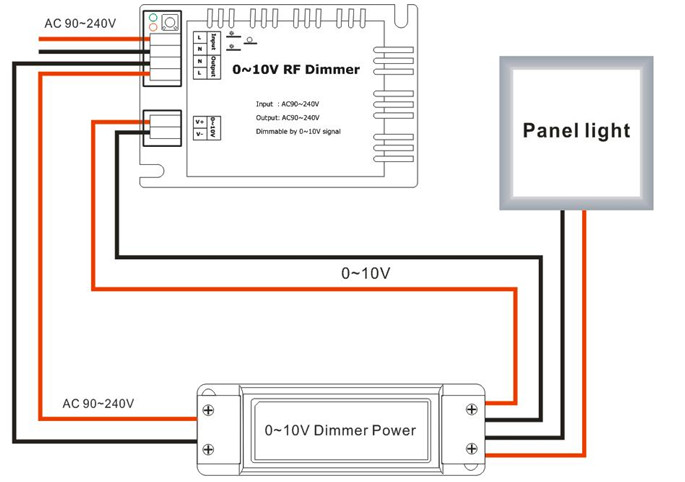

Typical application diagram
1. Connect the load line first, and then connect the power line; make sure there is no short circuit between the input and output connection lines before powering on.
2. The power supply voltage of the controller is 90～240VAC, 50～60Hz. Exceeding the voltage or frequency range may damage the controller.
