LED Channel With Square PC Light Diffuser For 20mm 5050 LED Strip Light

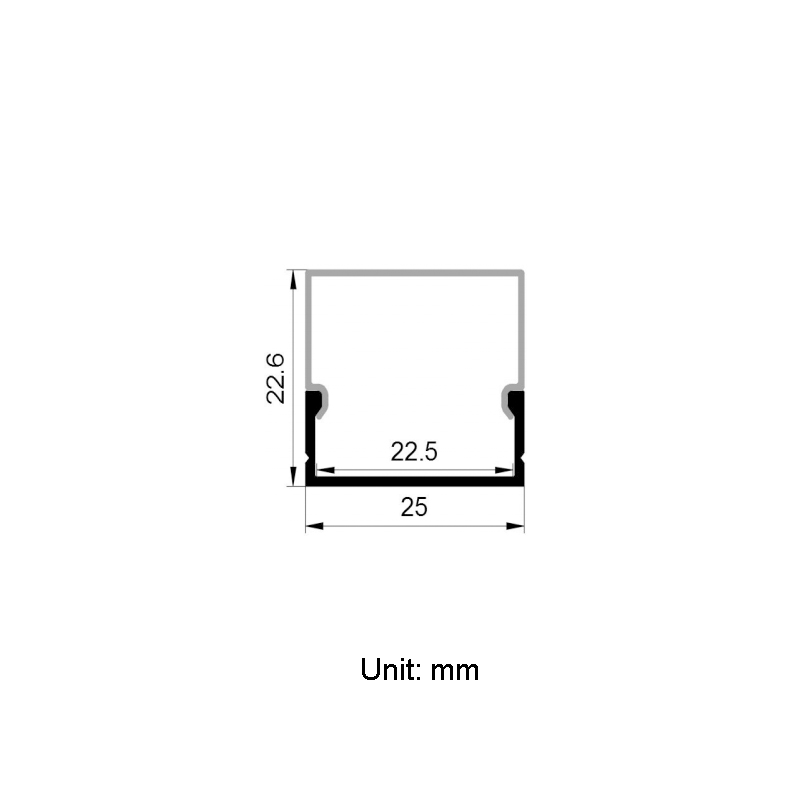

Check this surface-mounted led aluminum channel with PC square led diffuser is 22.5mm/0.89in inner width, made of high-quality 6063-T5 aluminum alloy, compatible with 15mm/20mm low-voltage 5050/3528/2835/CCT/addressable dream color double row led strip lights, the aluminum LED diffuser channel plays a role in led heat dissipation, led strip protection, and better led lighting distribution. We provide 3 kinds of PC light diffusers, PC opal microprism diffuser, PC clear microprism diffuser, and PC semi-clear diffuser. Each type of led diffuser differs from the others in its unique diffusing effect.

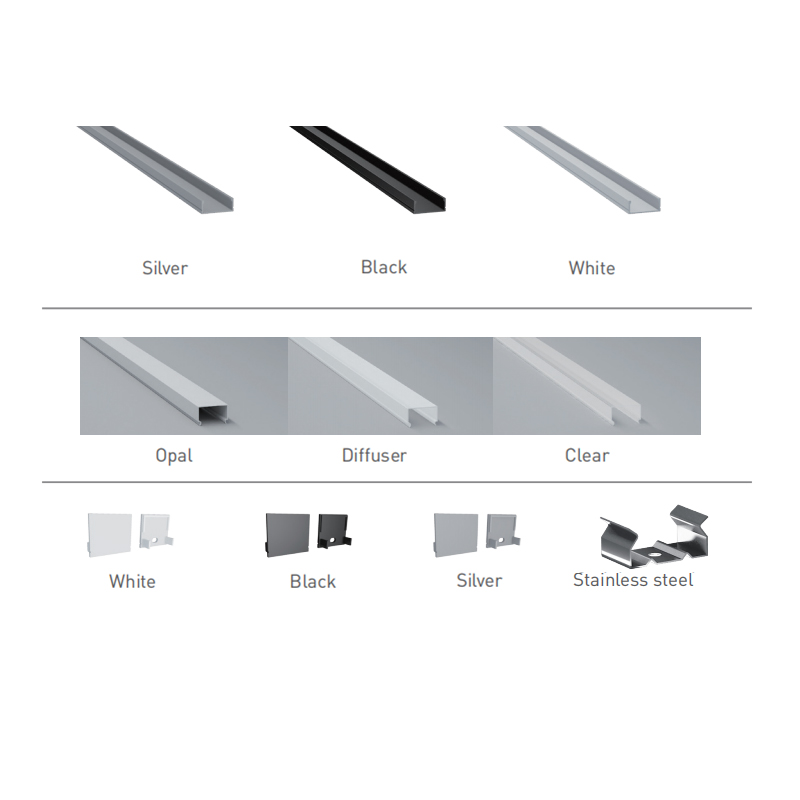

Comes with end caps and mounting clips, simpe installation, the led profile can be used in home lighting and commercial lighting projects, such as kitchens, under cabinets, ceilings, offices, ect. End cap with wire hole lets the led light strip through the aluminum channel to connect to the led controller or led dc power supply. We offer 1m and 2m silver, white, or black led strip channel options, and you can cut the led channel to any length.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PC opal microprism diffuser /PC clear microprism diffuser / PC semi-clear diffuser|
|Accessory||End cap without hole, end cap with wire hole, mounting clips|
|Apply to||15mm/20mm 5050/3528/2835 /CCT/Dream Color double row led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
1. Furniture production (kitchen/office)
2. Stores shelf LED lighting
3. Heat sink and physical protection to the LEDs
4. Independent LED lamp
5. Interior light design (stairs / storage / floor)
6. Exhibition boot LED lighting
