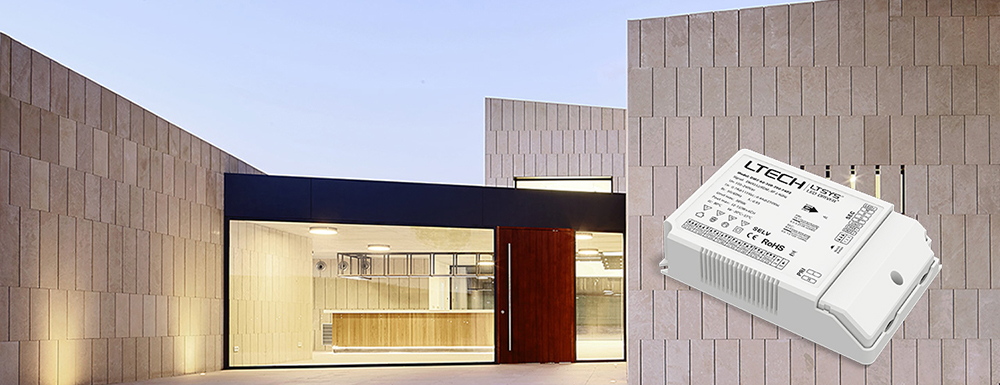

RF 2.4GHz 60W 200-700mA(100-240Vac,140-340Vdc) LED Intelligent Driver DMX-60-200-700-F4P2
LED Intelligent Driver
Dimming interface: DMX512/RDM, RF.
With the RDM remote device management protocol,
Supports DMX512 signal bi-directional communication.
Dimming range: 0~100%, LED start at 0.1% possible.
Multi-current & wide voltage, suitable for different power LED.
Power factor > 0.99, Efficiency > 88%.
Short circuit / Over-temperature / Over load protection.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Multi-current & wide voltage, suitable for different power LED.
Dimming Interface: DMX512/RDM

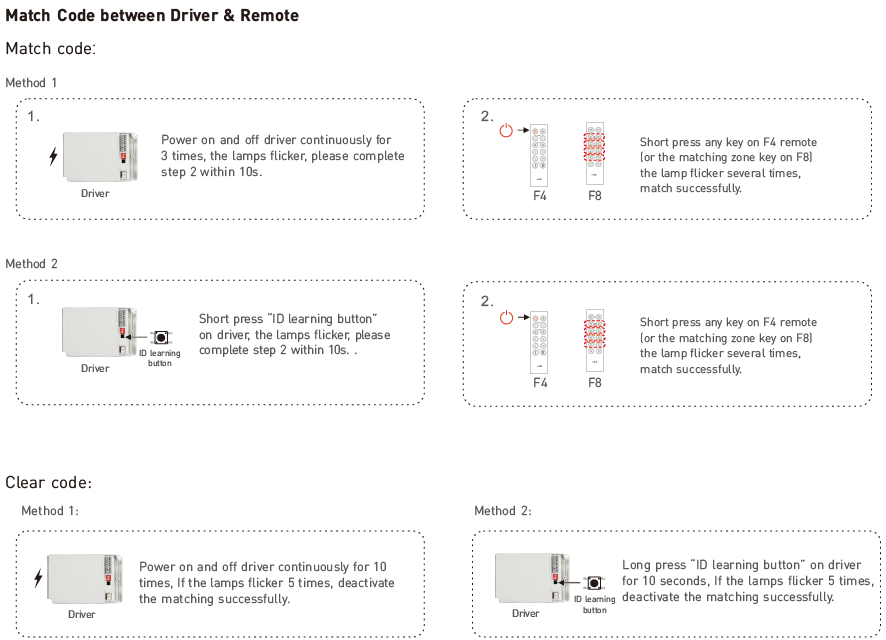

Wireless Signal: RF 2.4GHz
Input Voltage Range: 100-240Vac ±10%, 140-340Vdc ±10%
Input Current: 115Vac≤0.7A, 230Vac≤0.4A
Power Factor: PF>0.99/115Vac, PF>0.95/230Vac, at full load
THD: ≤15% at 115Vac, ≤20% at 230Vac, at full load
Inrush Current(typ.): Cold start 40A at 230Vac
Control Surge Capability: L-N: 1kV
Leakage Current: <0.5mA/230Vac
Operating Voltage: 10-54Vdc

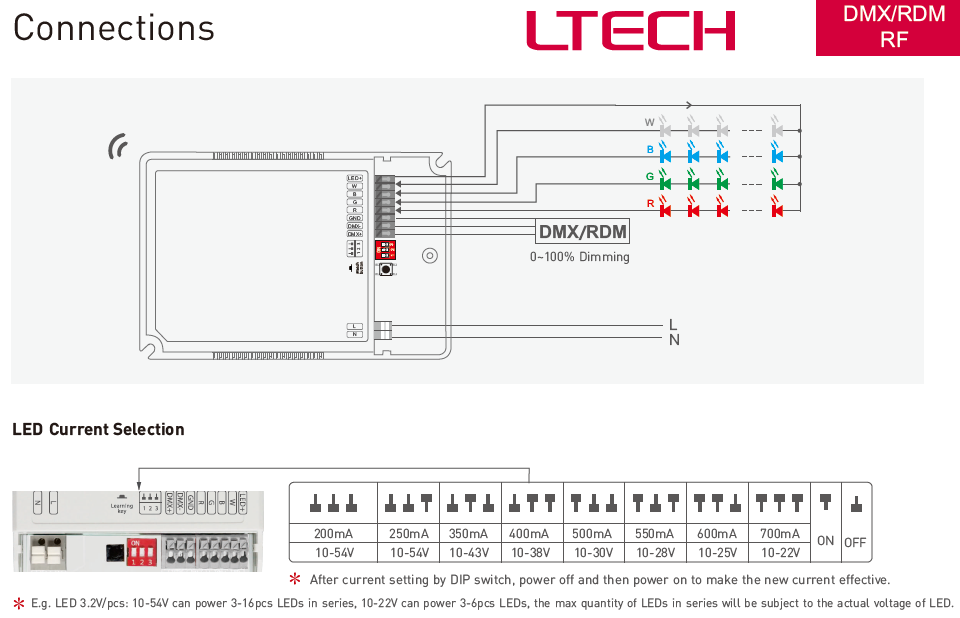

Output Power Range: (2-15W)×4CH
Current Accuracy: ±5%
Max. Output Voltage: 58Vdc
PWM Frequency: 200Hz-500Hz
Dimming Range: 0~100%, 0.1% dimming depth.
Working Temperature: ta -30°C ~ 55°C TC: 80°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temp., Humidity: -40 ~ 80°C, 10~95%RH
Temp. Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min./1cycle, period
for 72min. each along X, Y, Z axes
