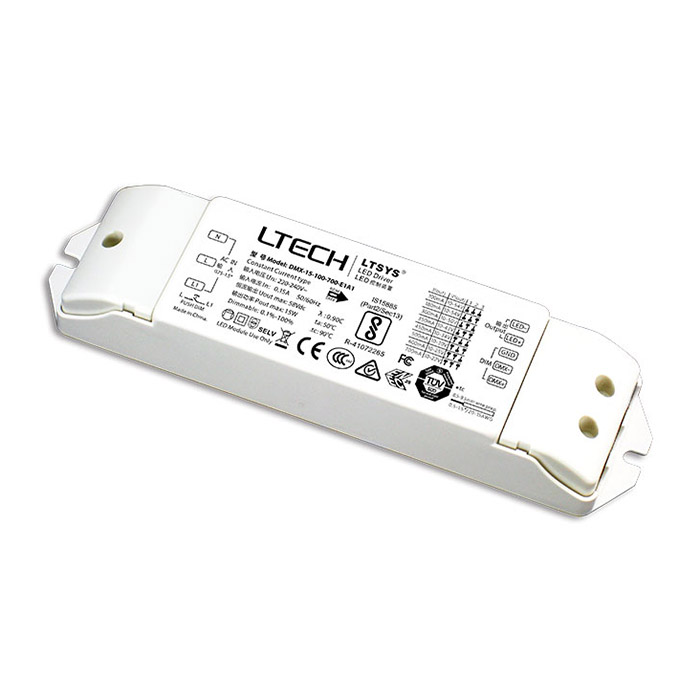

DMX-15-100-700-E1A1 15W 100-700mA CC DMX Driver

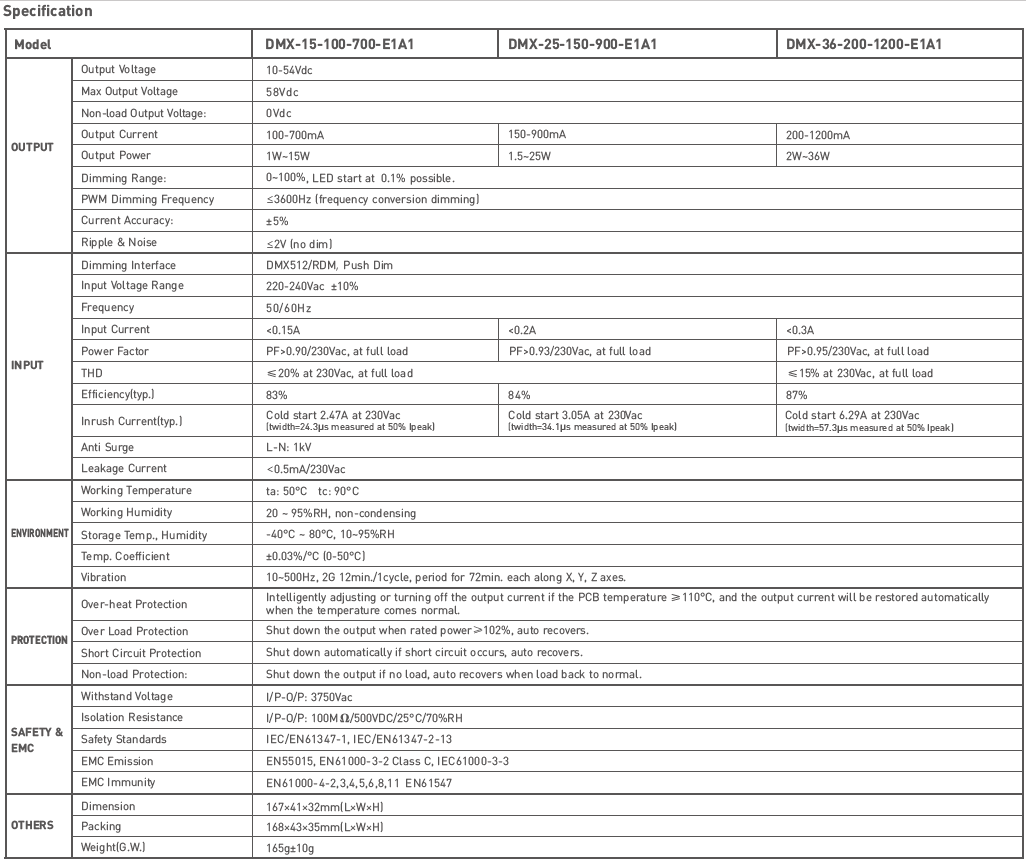

Dimming interface: DMX512/RDM, Push Dim
Dimming range: 0-100%
Input voltage: 220-240Vac ±10%
Current Accuracy: ±3%
Output voltage: 10-54Vdc
CC output: 100mA-700mA

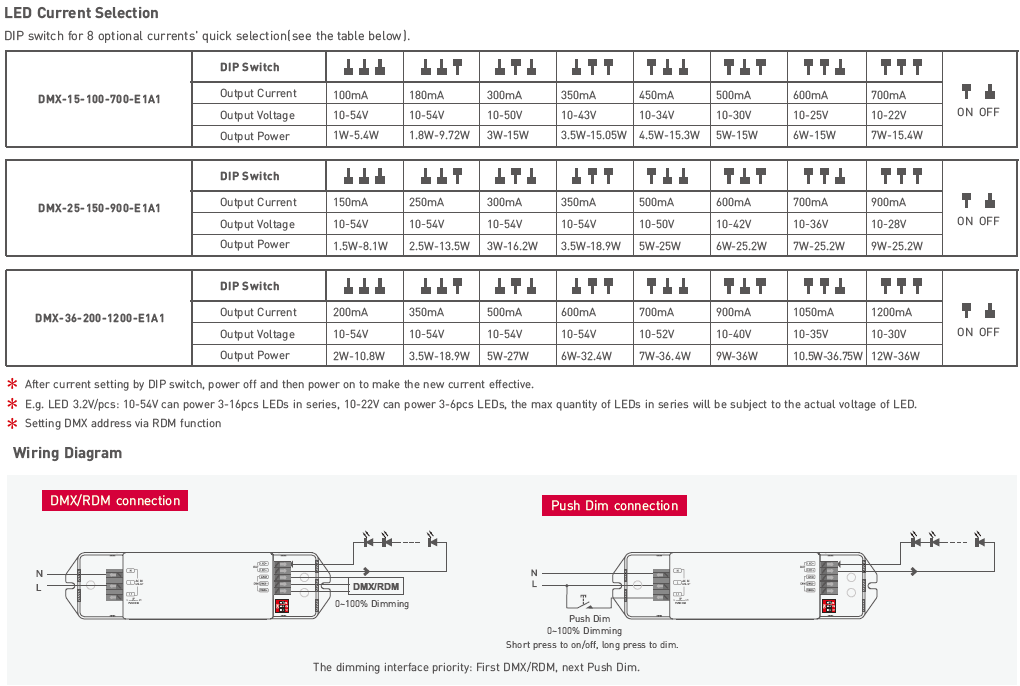

Pout(Max.) Vout(DC) Constant lout(DC)
1W-5.4W 10-54V 100mA
1.8W-9.72W 10-54V 180mA
3W-15W 10-50V 300mA
3.5W-15.05W 10-43V 350mA
4.5W-15.3W 10-34V 450mA
5W-15W 10-30V 500mA
6W-15W 10-25V 600mA
7W-15.4W 10-22V 700mA
Dimming interface: DMX512/RDM, Push Dim
Supports RDM remote device management protocol,
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Non-load output voltage 0V to prevent damages to LED caused by poor contact.
Multi-current & wide voltage, suitable for different power LED.
Short circuit / Over-heat / Over load / Non-load protection.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
