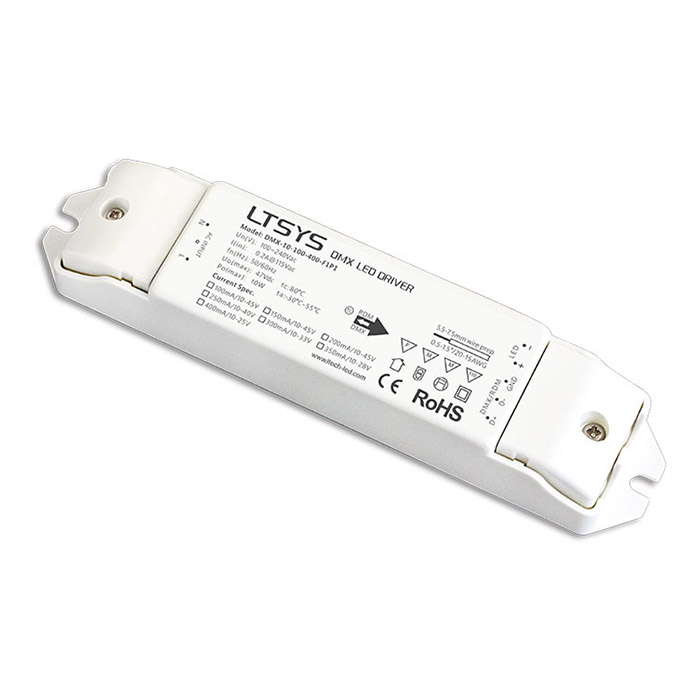

DMX-10-100-400-F1P1 10W 100-400mA CC DMX Driver
Dimming interface: DMX512/RDM
Dimming range: 0-100%
Input voltage: 100-240VAC
Current Accuracy: ±3%
Output voltage: 10-24VDC
CC output: 100mA-400mA
Pout(Max.) Vout(DC) Constant lout(DC)
1-4.5W 10-45V 100mA
1.5-6.75W 10-45V 150mA
2-9W 10-45V 200mA
2.5-10W 10-40V 250mA
3-9.9W 10-33V 300mA
3.5-9.8W 10-28V 350mA
4-10W 10-25V 400mA
Dimming interface: MX512/RDM
With the RDM remote device management protocol.
Supports DMX512 signal bi-directional communication.
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Short circuit / Over-heat / Over load protection.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.
