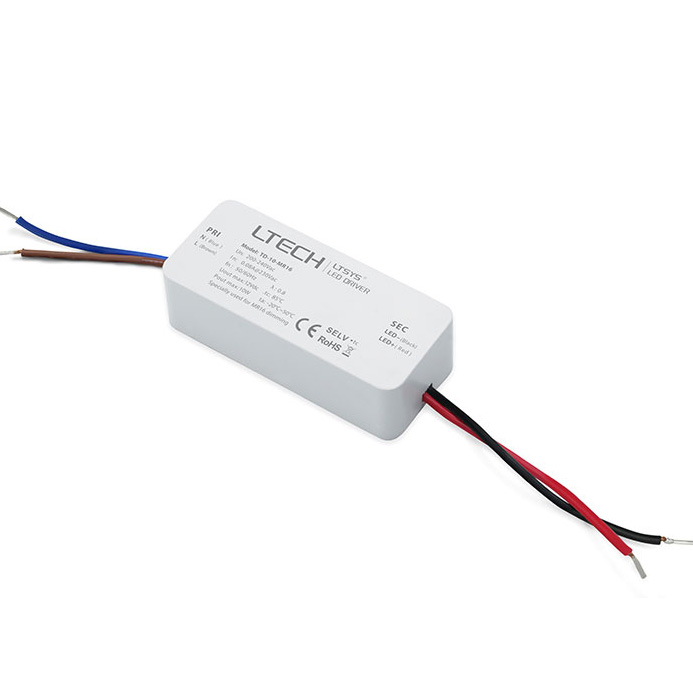

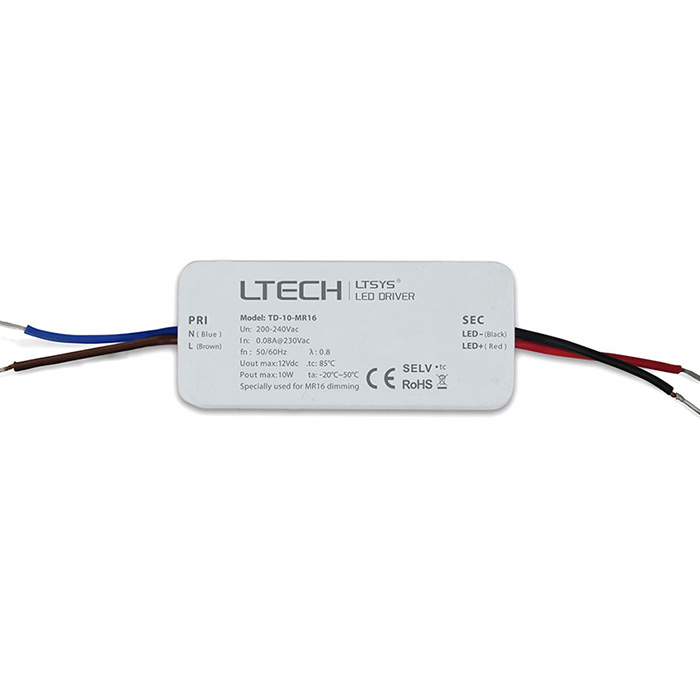

LED Intelligent Driver TD-10-MR16
LED Intelligent Driver
Dimming interface: Triac/ELV
Apply to lead edge / trailing edge Triac dimmers and dimming system.
Built-in single-chip, dimming curve and smoothing time can be customized.
Dimming range: 0~100%, LED start at 1% possible.
Overload / Over-heat protection, recover automatically.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Dimming Interface: Triac/ELV
Input Voltage: 200-240Vac
Input Current: 230Vac≤0.08A
Power Factor: PF>0.8/230Vac (at full load)
Inrush Current(typ.): Cold start 3A at 230Vac
Anti Surge: L-N: 0.5kV
Leakage Current: <0.5mA/230Vac
Output Current：Max. 0.85A
Operating Voltage: 12Vdc ± 0.5Vdc
Ripple & Noise: ≤2.5V
Output Power：Max. 10W
Output Power Range：0~10W
Dimming Range: 0~100%, dimming depth: 1% (depending on MR16).
Working Temperature.: ta -20 ~ 50°C to: 85°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temp., Humidity: -40 ~ 80°C, 10~95%RH
Temp. Coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min./1cycle, the period
for 72min. each along X, Y, Z axes
