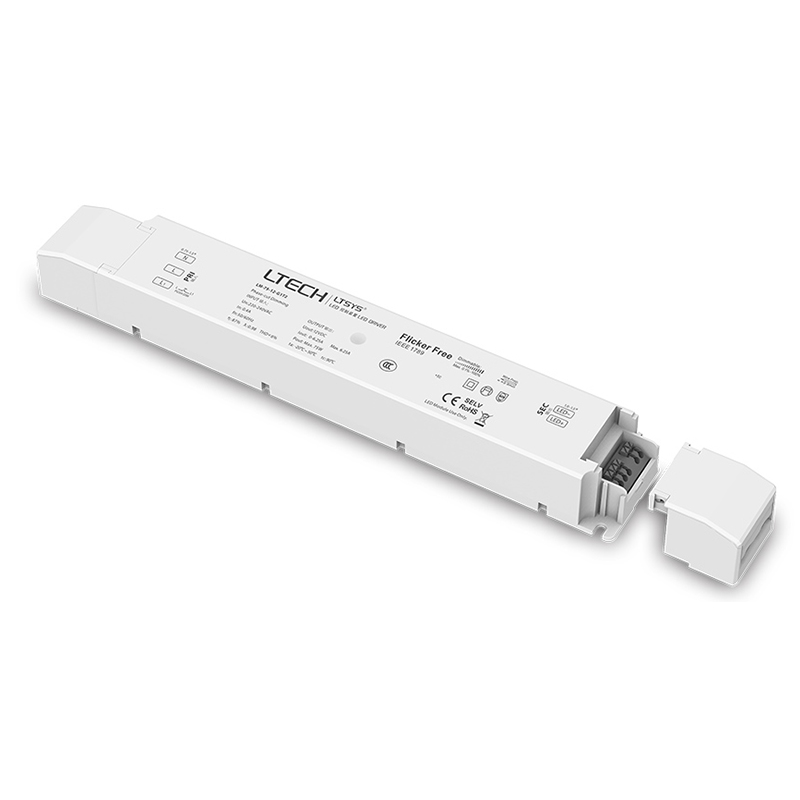

LM-75-12-G1T2 75W 12VDC CV Triac LED Driver

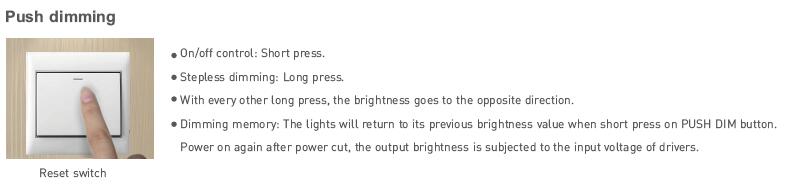

1. Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
2. With soft-on and fade in function, visual more comfortable.
3. Dimming range: 0~100%, LED start at 0.1% possible.
4. 0-100% flicker-free, High frequency exemption level.
5. High Efficient driver: efficiency 88%,PF>0.98, THD<6%
6. Innovative thermal management technology, intelligent power life protection.
7. Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.

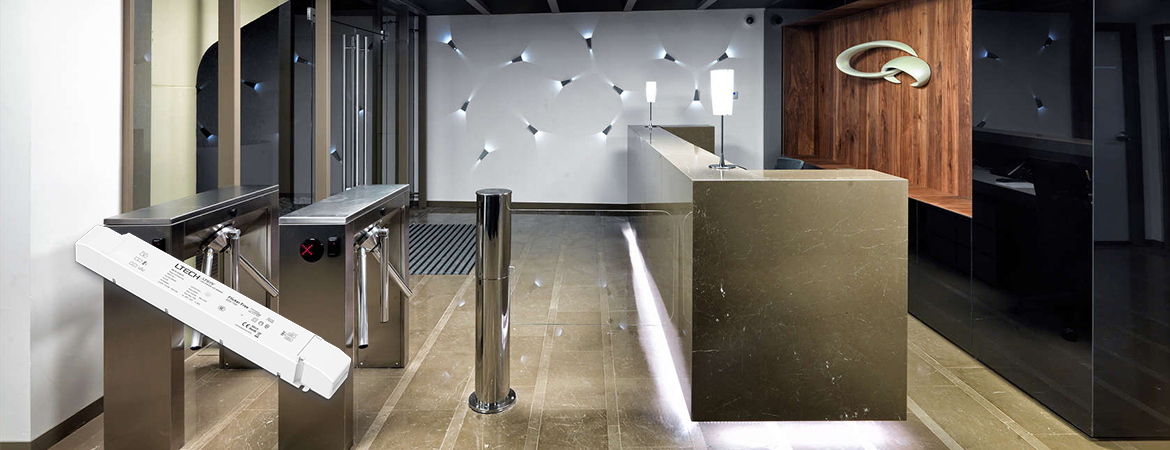

8. Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
9. Up to 50000-hour life time.
10. 5 years warranty (Rubycon capacitor).
Dimming interface LM-75-12-G1T2
Dimming range 0~100%, Max. 0.1% dimming depth
Input voltage 200-240Vac ±10%
Output voltage 12VDC
Output power Max. 75W
Output current Max. 6.25A
Working temperature ta -30°C ~ 60°C to: 85°C

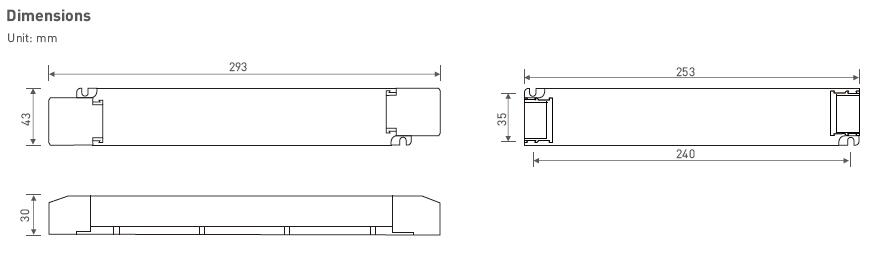

Package Size 296×44×33mm(L×W×H)
Weight (G.W) 440g±10g
