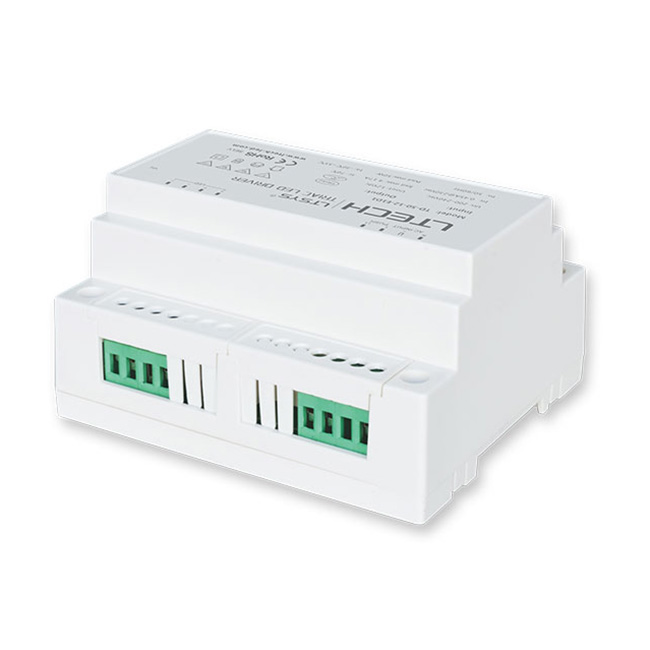

TD-50-12-E1D1 50W 12VDC CV Triac LED Driver
1、Dimming interface: Triac/ELV, Push Dim.
2、Apply to the leading edge and trailing edge Triac dimmers.
3、Built-in high-performance MCU, the dimming curve can be customized.
4、PWM digital dimming, no alter LED color temperature.
5、Dimming range: Max. 0.1-100%.
6、Short circuit / Over-heat / Overload / Over voltage protection.
7、Class 2 power supply. Full protective plastic housing.
8、Compliant with Safety Extra Low Voltage standard.
9、Suitable for indoor environments.
SPI Controller TD-50-12-E1D1
Dimming interface Triac/ELV, Push DIM.
Dimming range Max. 0.1~100%
Input voltage 200-240Vac ±10%
Output voltage 12Vdc
Output power Max. 50W
Output current Max. 4.2A
Working temperature tc: 70°C ta: -30°C ~ 55°C
Package Size 109x99x63mm(LxWxH)
Weight (G.W) 260g±10g
