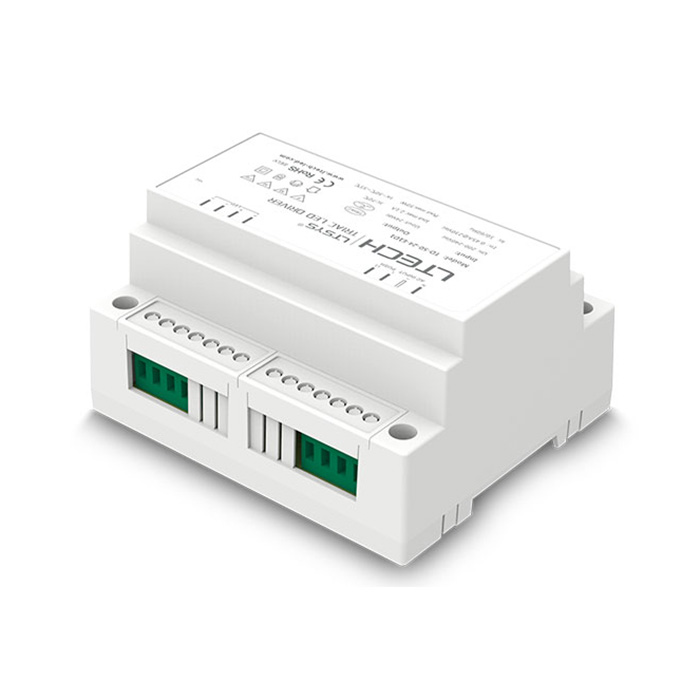

TD-50-24-E1D1 50W 24VDC CV Triac LED Driver
1、Dimming interface: Triac/ELV, Push Dim.
2、Apply to the leading edge and trailing edge Triac dimmers.
3、Built-in high-performance MCU, the dimming curve can be customized.
4、PWM digital dimming, no alter LED color rendering index.
5、Dimming range: Max. 0.1-100%.
6、Efficiency > 87%.
7、Short circuit / Over-heat / Overload / Over voltage protection.
8、Class 2 power supply. Full protective plastic housing.
9、Compliant with Safety Extra Low Voltage standard.
10、Suitable for indoor environments.
Dimming interface: Triac/ELV, Push DIM.
Dimming range: Max. 0.1~100%.
Input voltage :200-240Vac ±10%
Output voltage :24Vdc
Output power :Max. 50W
Output current: Max. 2.1A
Working temperature tc: 70°C ta: -30°C ~ 55°C
Package Size: 109x99x63mm(LxWxH)
Weight (G.W): 260g±10g
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
