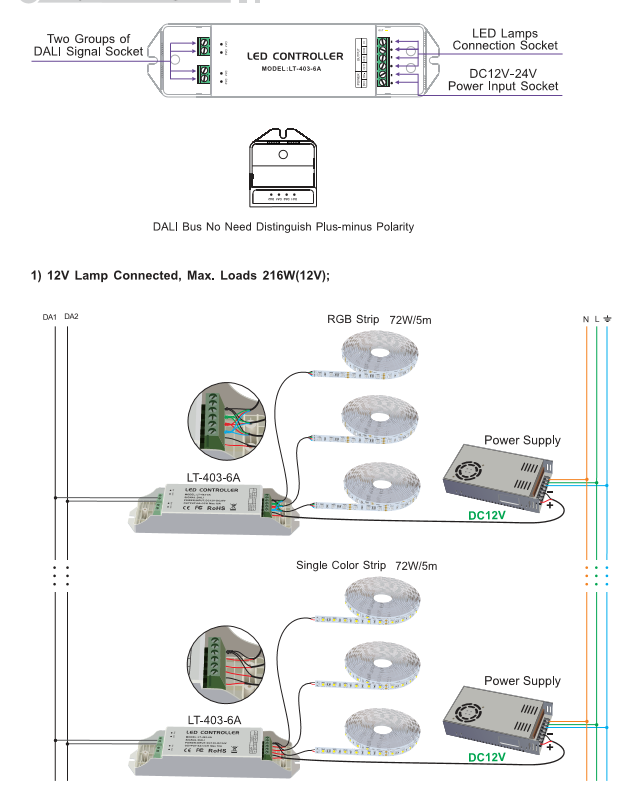

LT-403-6A DALI digital dimming signal 6A 3CH good quality dimming driver applied for led light fixtures
Input signal：DALI digital dimming signal
Max load current： 6A ×3CH Max 18A

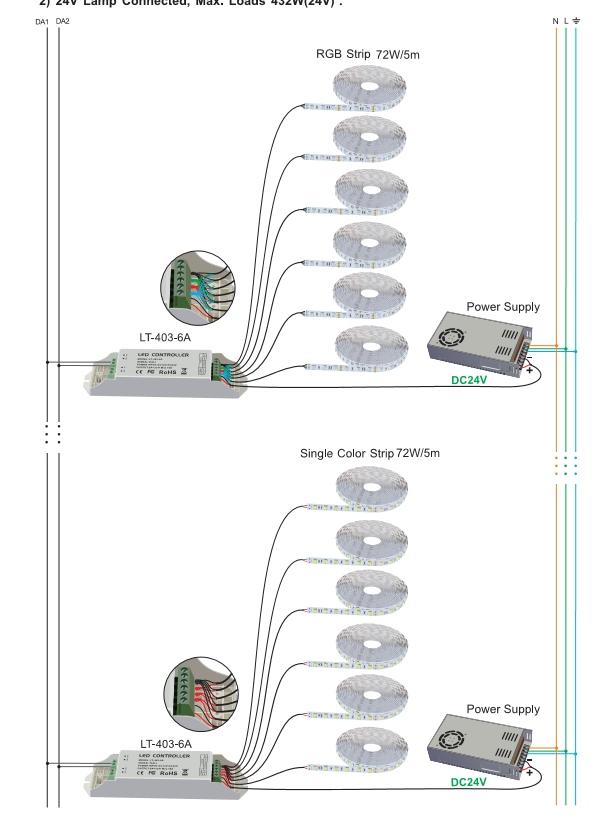

Max output power：216W(12V)432W(24V)
Dimming Range： 0.1～100%
