LTECH 2.4G LED touch controller T1

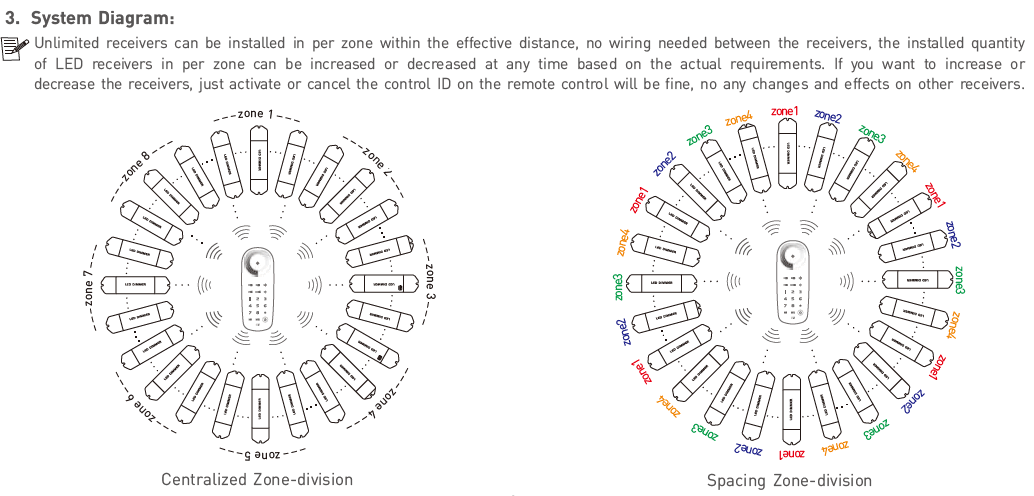

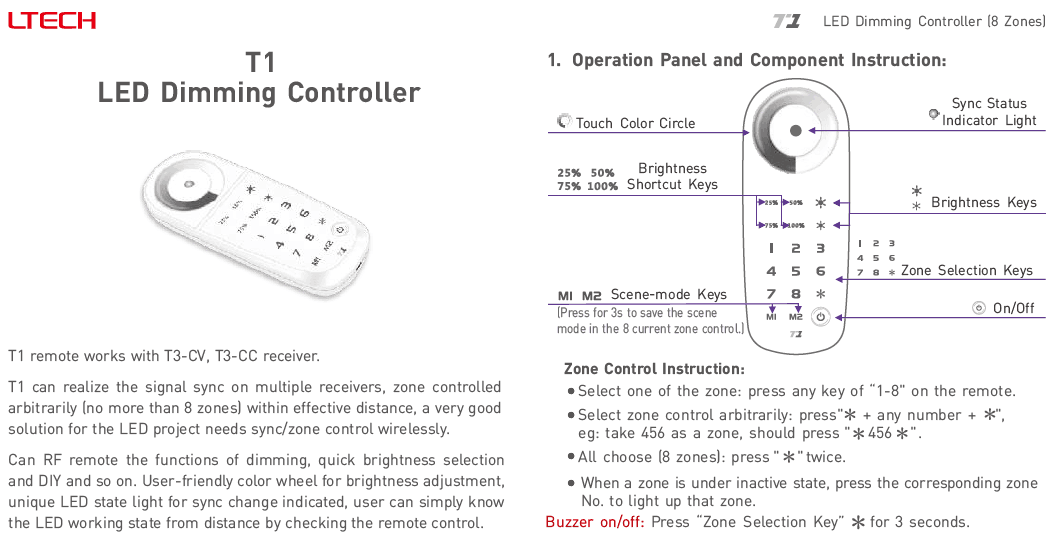

T1 is the 2.4GHZ RF wireless synchronization/zone dimming controller which adopts LTECH multiple global initiate technology. The control system consists of two parts, the RF remote control and receiver, realize the signal synchronization on multiple receivers, zone controlled arbitrarily (not more than 8 zones) within effective distance, a very good solution for the LED project needs sync/zone control wirelessly.
Can RF remote the functions of dimming, quick brightness selection and DIY and so on. User-friendly color wheel for brightness adjustment, unique LED state light for sync change indicated, user can simply know the LED working state from distance by checking the remote.
1. Adopt 2.4GHZ RF wireless transmission technology, which is applicable for license and patent free worldwide.
2. Built-in with dual core driver, make it 10 times of processing speed. can process the wireless data transmission in complicated and multiple levels.
3. Advanced RF and wireless sync/zone control technology, no sync signal wire between receivers, sync capability is stable and reliable.

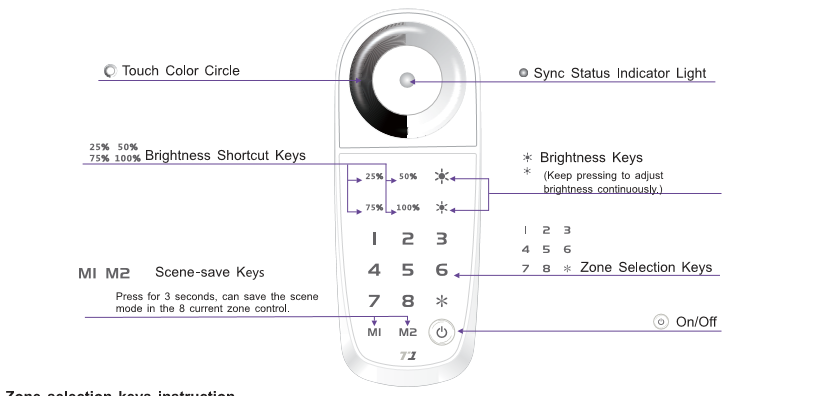

4. Remote controller adopts the capacitive touch control technology on the wheel, make the dimming more intellectualized and humanized.
5. The remote control built-in sync-status indicator, which can show the bright status of the LED synchronously.
6. Color changing scene mode and preset storage function.
7. USB charging port.

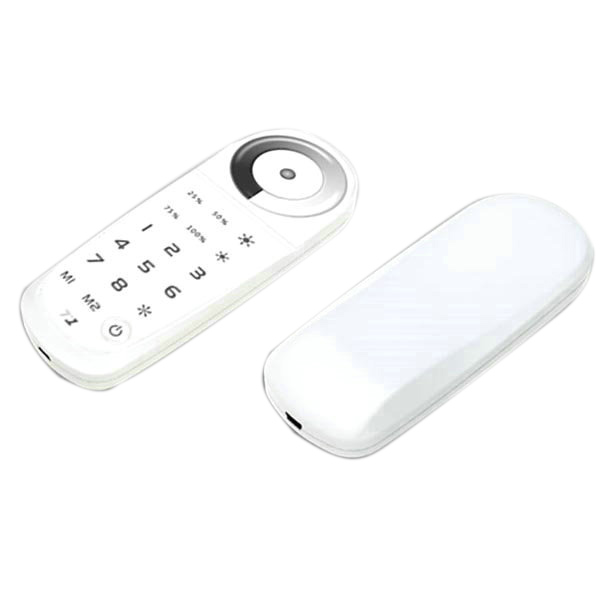

T1 Remote Control
Input voltage :DC5V built-in Lithium battery
Working current: ≤30mA
Working frequency :2.4GHZ
transmitting distance :30m
Remote option :Sync or zone control
Battery capacity :1000mAh
Standby time :≤6 months

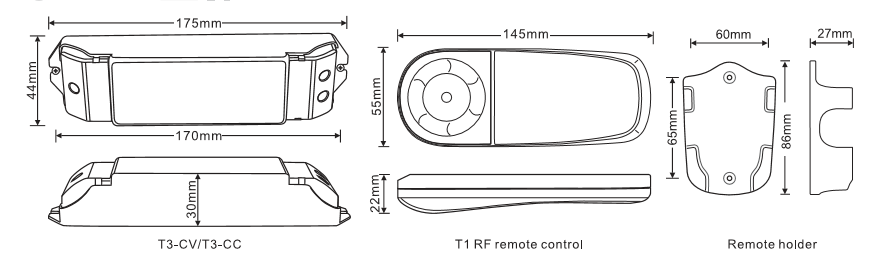

Package Size :L168×W102×H28mm
Weight (G.W): 200g
