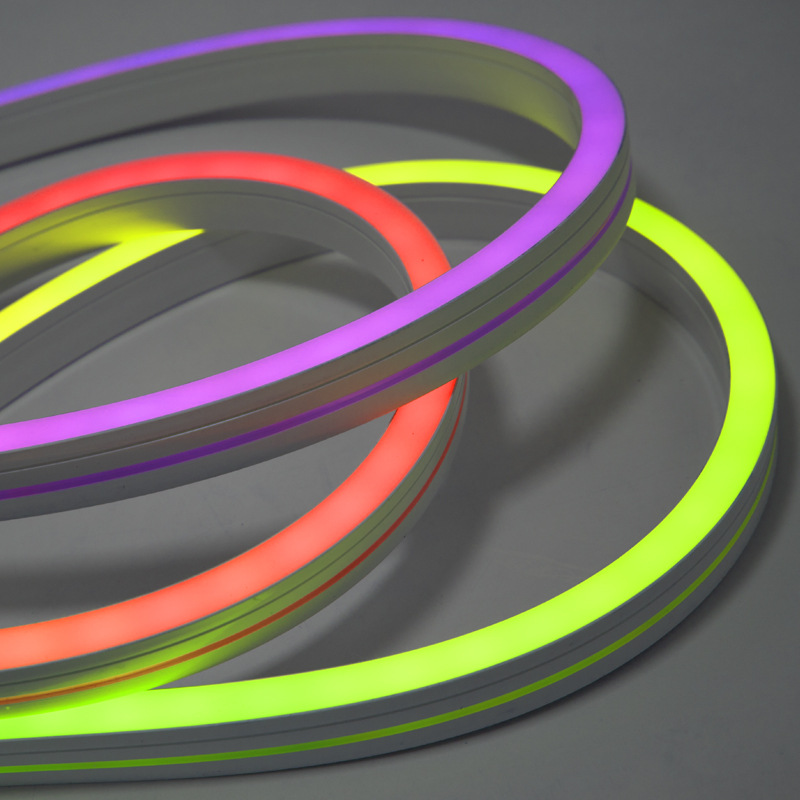

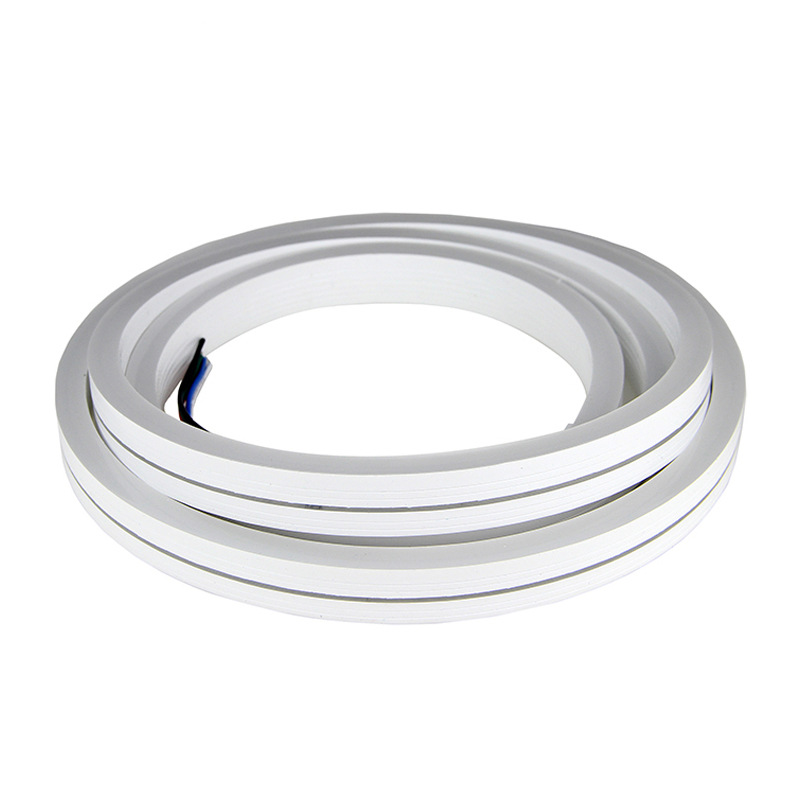

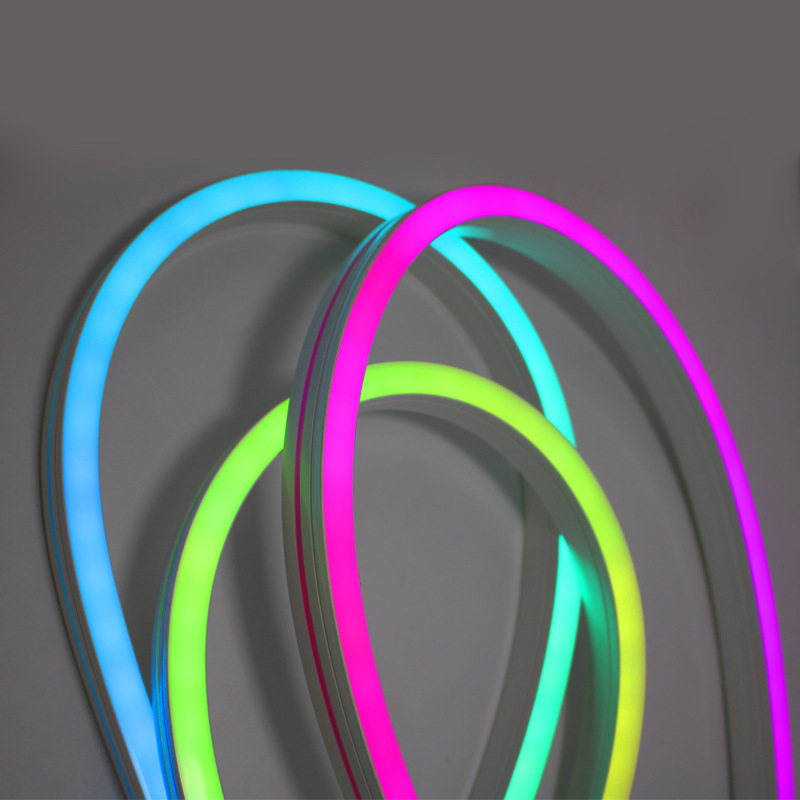

Dream Color LED Neon Light Kit - 5m Outdoor Strip Lighting - DC5-24V
1. This link is 16.4Ft/5m Kit, but we can make a complete neon light reel of no more than 32ft/10m for you. If you order double the quantity, please note that you need a custom length, such as 26 feet or 32 feet, and we will follow you Customize the length you need；
2. This neon light every 16.4ft need to supply power separately, so please supply power at both ends if your project more than 16ft, (if you order two kits, you will receive two power supplies.)

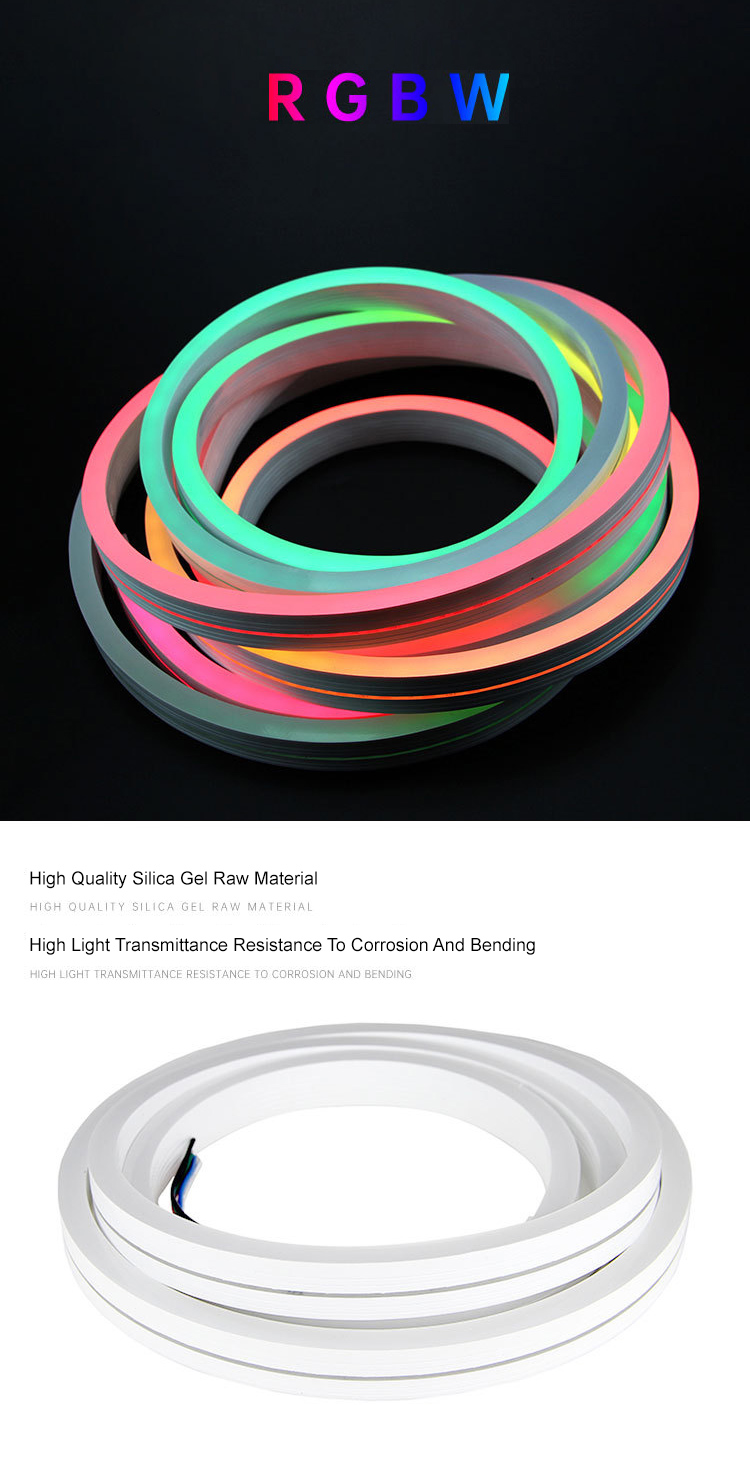

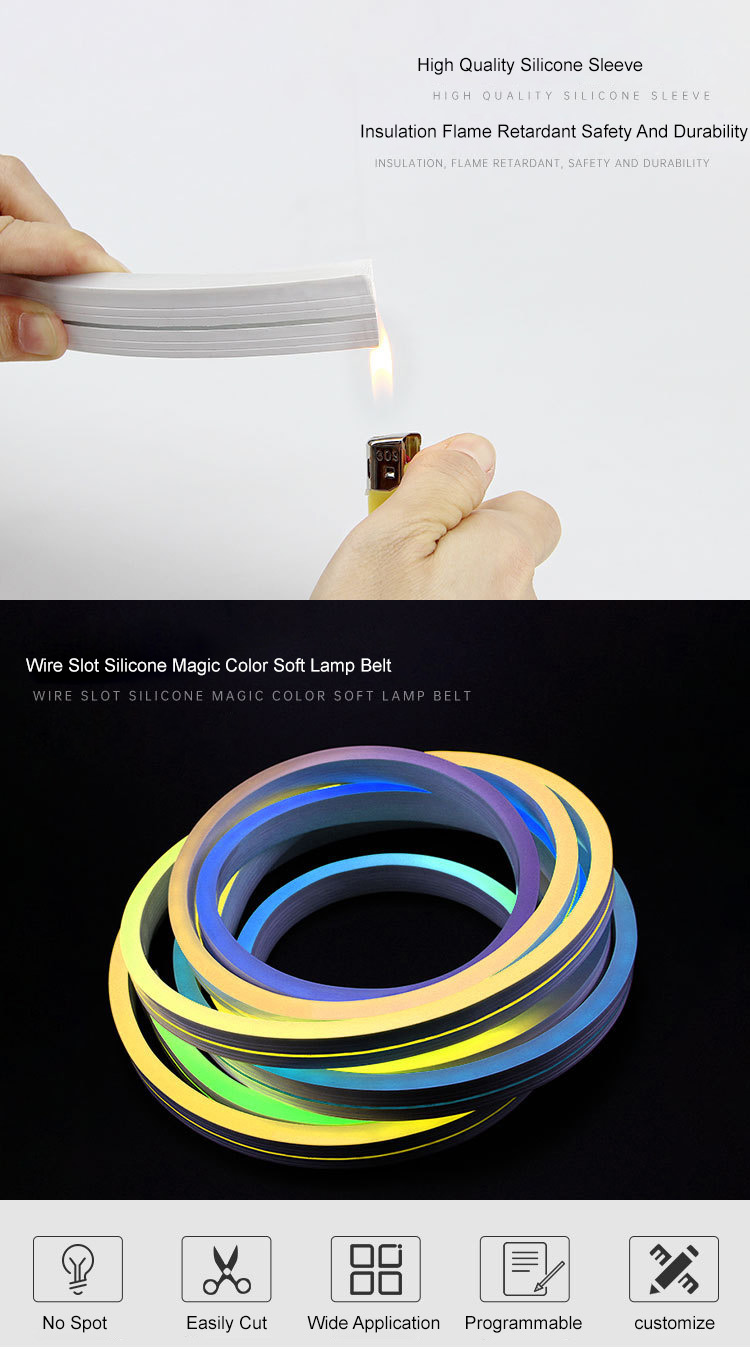

Our LED neon light strip adopts high quantity silica material with the practice of high temperature, the strip adopts individually addressable WS2815, SK6812 and TM1814 RGBW/DW LED Strip Lights. The neon strip light has 16 million colors, you can adjust the color according to your love. We provide an IP67 waterproof neon tube. You can customize the neon tube size. The voltage is 5/12/24V, safe and high efficacy. We provide the programmable strip light which is 5meters(16.4') Per Reel By Sale.
Note: when you choose DC5V LED strip light, You need to choose the power supply carefully，we only support 5V 100W Mean WELL UL Power Supply and 5V 100W Waterproof Power Supply
Standards and Certifications
LED Model: SMD5050RGBW
Voltage: DC5/12/24V(according to the choice of the LED strip light)
IP Rating: IP67(the neon tube IP rating is IP67,the waterproof level of the connector and the power supply needs to be selected)
Work Temp: -30~45℃

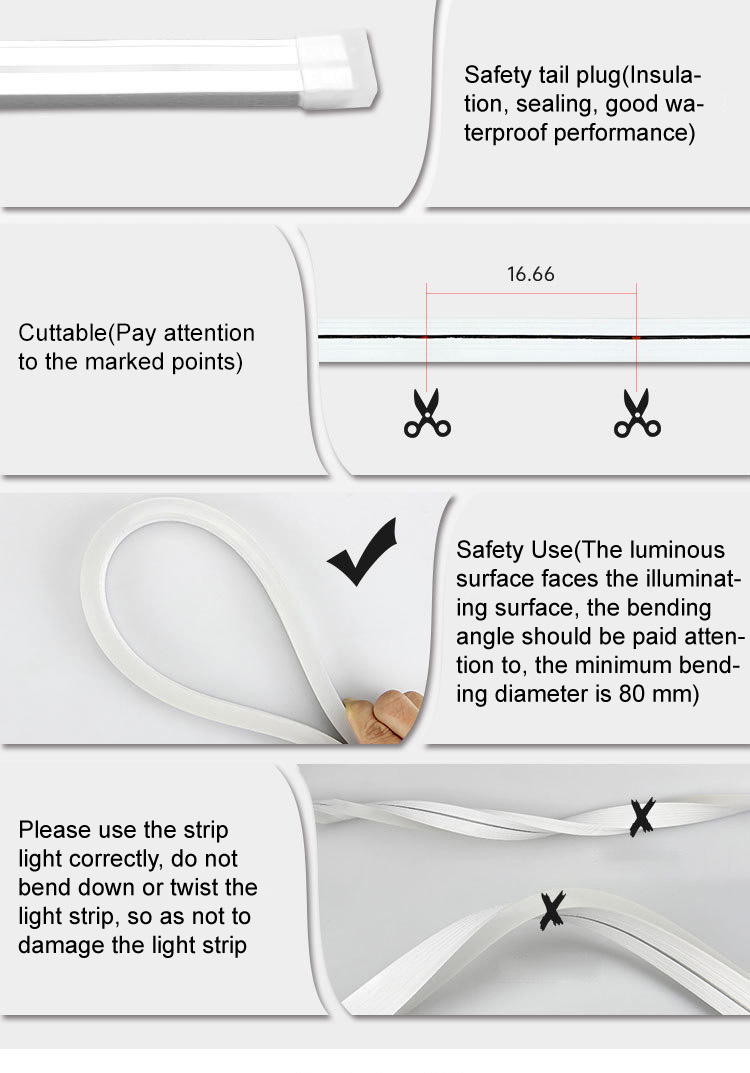

Cutable: DC5V and WS2815 1LED cutable; DC12V 3LEDs cutable; DC24V 6LEDs cutable,
Pixel Quantity: DC5V: 60pixels/M; DC12V: 20pixels/M; DC24V: 10pixels/M;
LED Quantity: 60LEDs/M, 18LEDs/ft, 300LEDs/Roll
Power: 14W/M, 70W/Roll

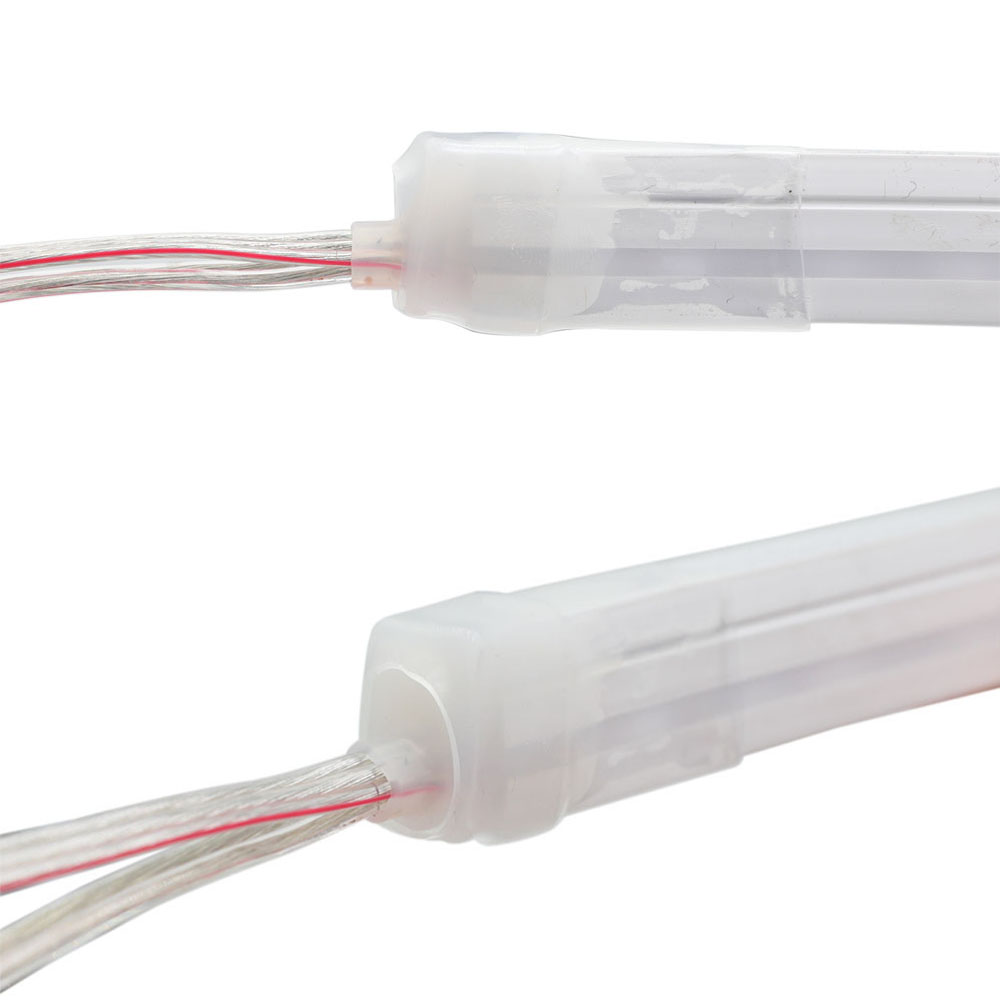

Wire Length: 120MM/4.72in(JST)
Size: L5000*10*20MM(default choice), you can costomize the neon tube sizes.
Warantty: 3 years
For Controller Option Description
We talk about four options for the controller, all of which can be applied to the above light strips, with different functions.
click to SP107E Music Bluetooth Controller
click to SP108E DIY WIFI Controller
click to SP110E Mini Bluetooth controller
click to SP105E Bluetooth controller
For LED Strip Light Option Description
According to the cutting type of the light strip, we divide the addressable light strip into three types: individually addressable, 3LEDs cuttable, and 6LEDs cuttable.
In addition to the classification according to the cutting type, their difference is also reflected in the chip and color temperature(3000K or 6000K), etc. You can choose according to your needs.
For LED Neon Tube Option Description
In terms of neon tube size, we also provide different options:
|Light direction||Product Link|

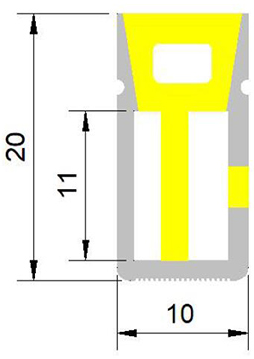

|10*20MM||Side Emitting||Click Here|
|16*16MM Top||Top Emitting||Click Here|

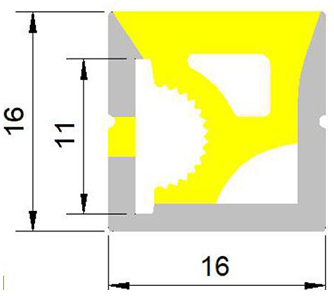

|16*16MM Side||Side Emitting||Click Here|

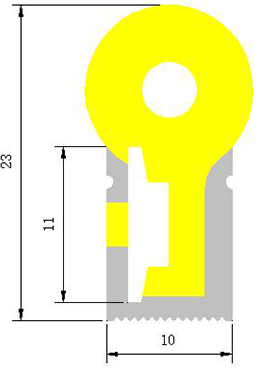

|10*23MM||Side Emitting||Click Here|
|12*25MM||Side Emitting||Click Here|

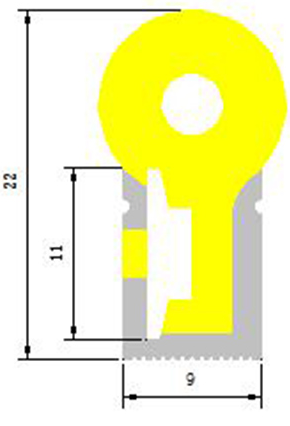

|9*22MM||Side Emitting||Click Here|

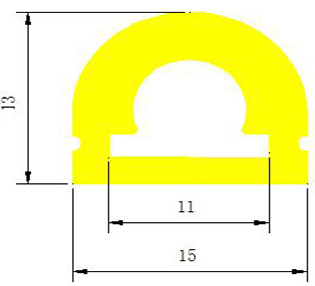

|15*13MM||Top Emitting||Click Here|

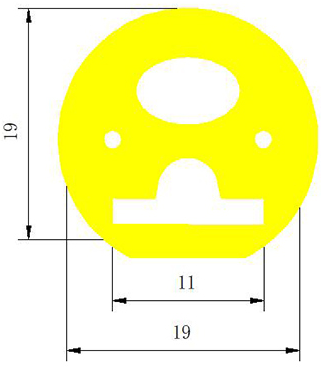

|diameter 19MM||Top Emitting||Click Here|
Tips: These 8 LED neon tube options are the most suitable models that we can match for you and can replace the strip width appropriately. They have different shapes, but the internal width is 11mm, and the PCB width of all LED strips is 10mm; The yellow part of the thumbnail is the luminous body, and the plane hole is the fixed position of the PCB. You can judge the luminous direction by the fixed direction of the PCB. We hope these options can bring you more choices for different lighting schemes. If you have more ideas, such as other neon tube sizes, LED strip types, or customize lengths, please feel free to contact us and we will recommend the most suitable solution for you.
For LED Power Supply Option Description
In terms of power supply, we divide the power supply into the following four types according to the power of the light strip.
For Connector Option Description

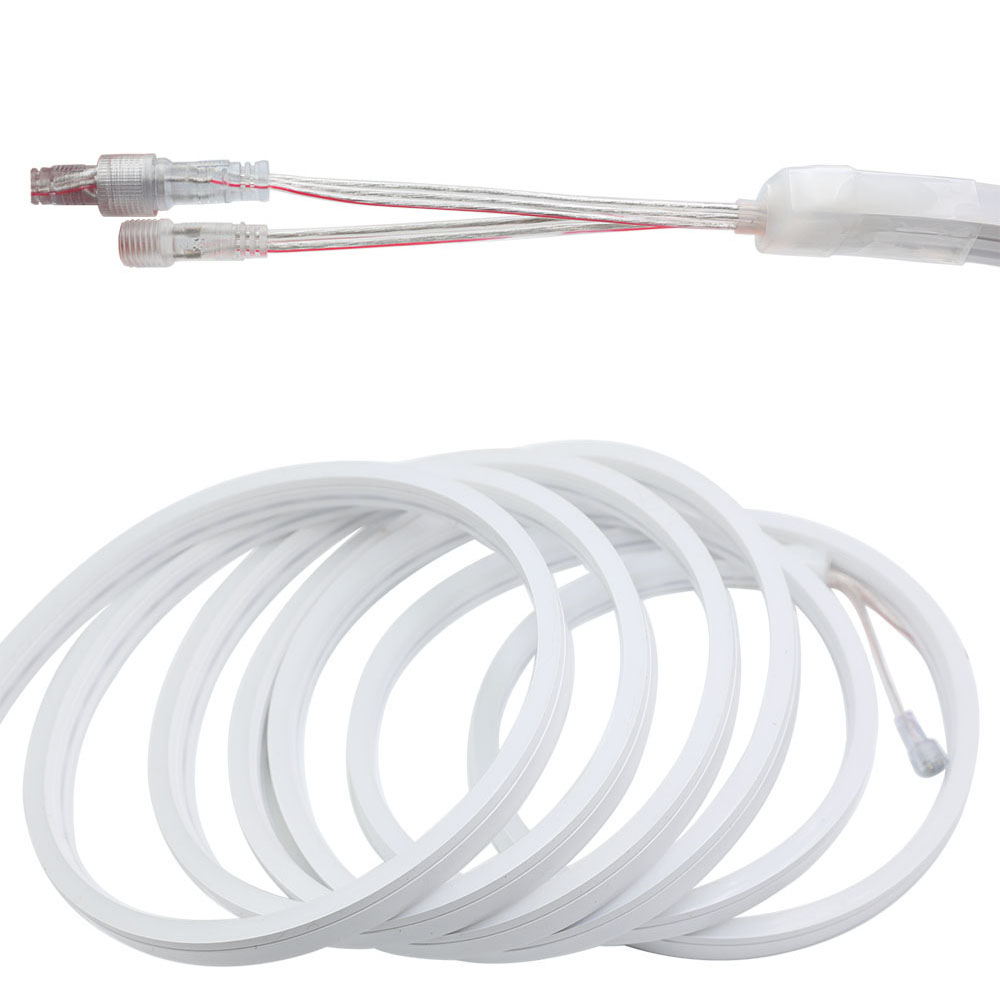

If you choose all of them by default, we will send a plug and play kit for you, the kit contains the following items:

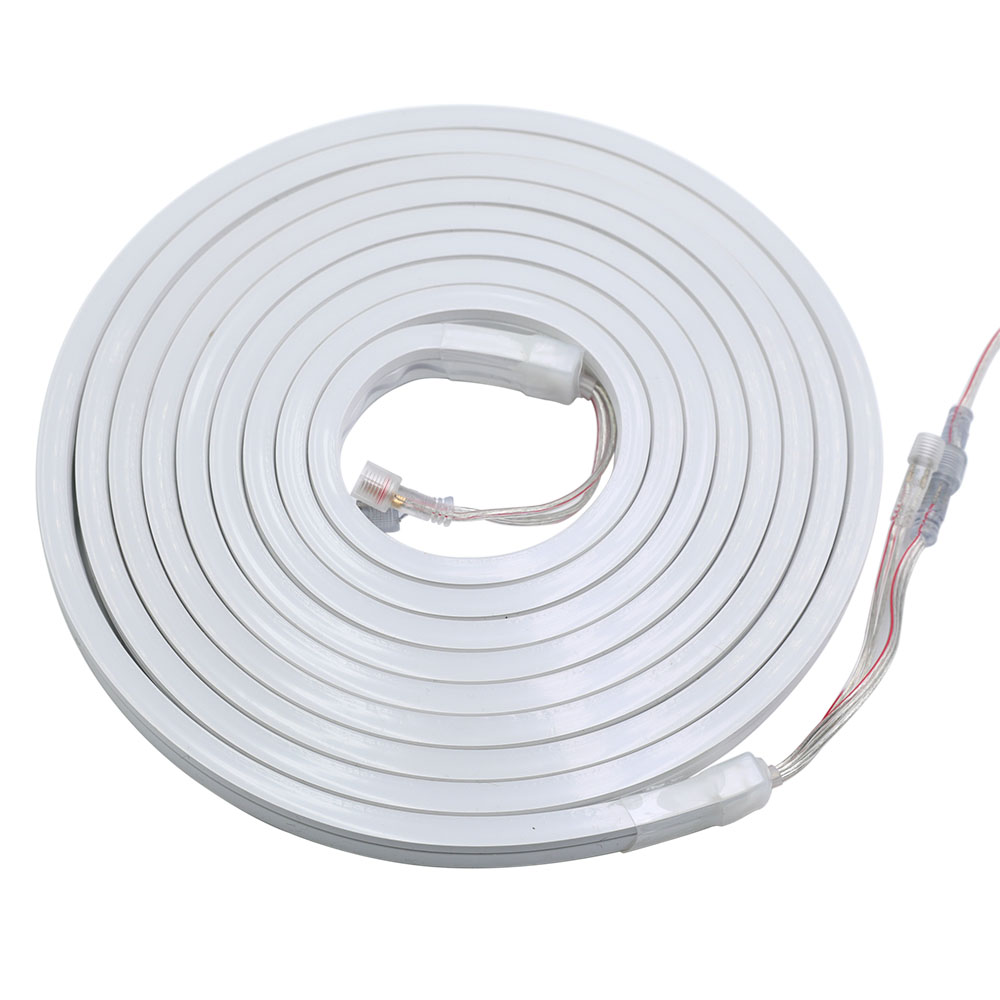

1 * 5m neon lights,
1 * LED controller
1 * 100 watt power supply
1 * AC plug

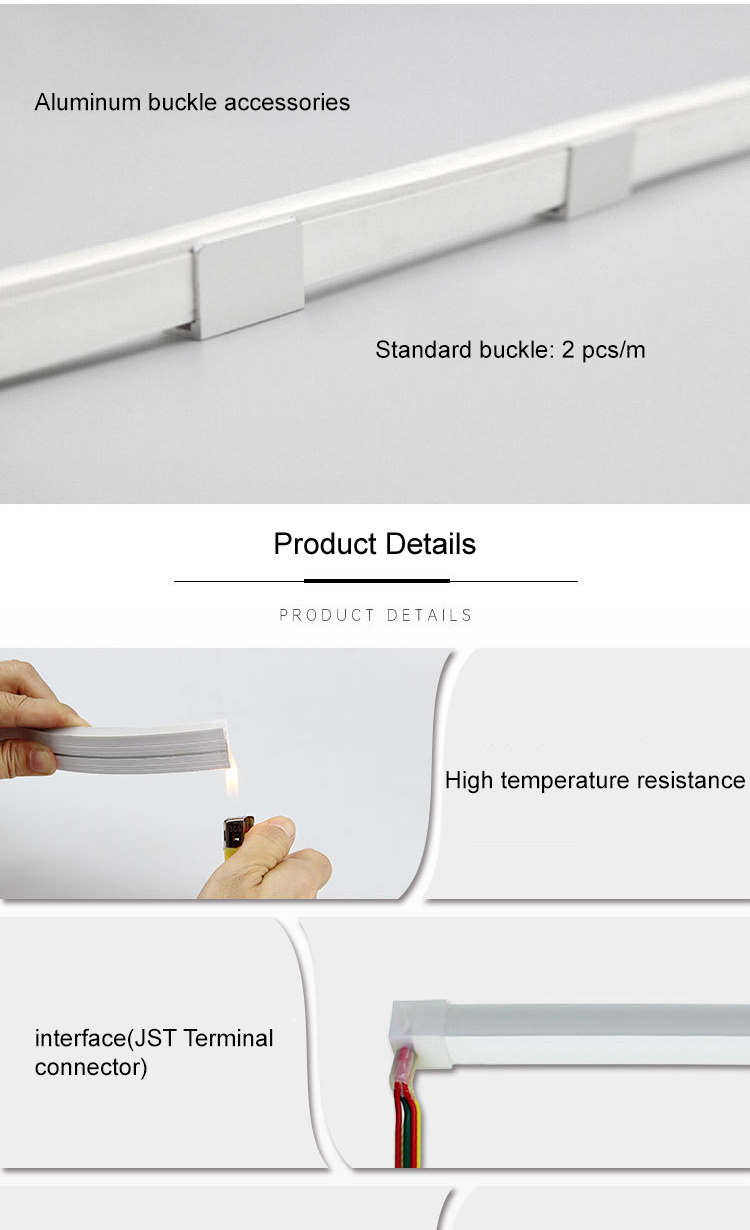

1 * 10 pieces of clips (free)

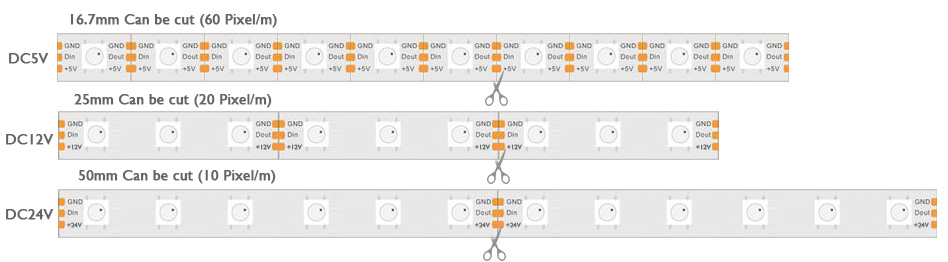

The difference between DC5V/12V/24V light strips is that
DC5V is individually addressable, each light can be cut, one IC controls one LED and 60 pixels per meter
DC12V every three LEDs can be cut, one IC controls 3 LEDs, 20 pixels per meter
If you want to apply to automotive lighting, it is recommended that you use DC12V light strips
If you want to use for ultra-long lighting and try to use a less LED power supply, it is recommended that you use DC24V light strips

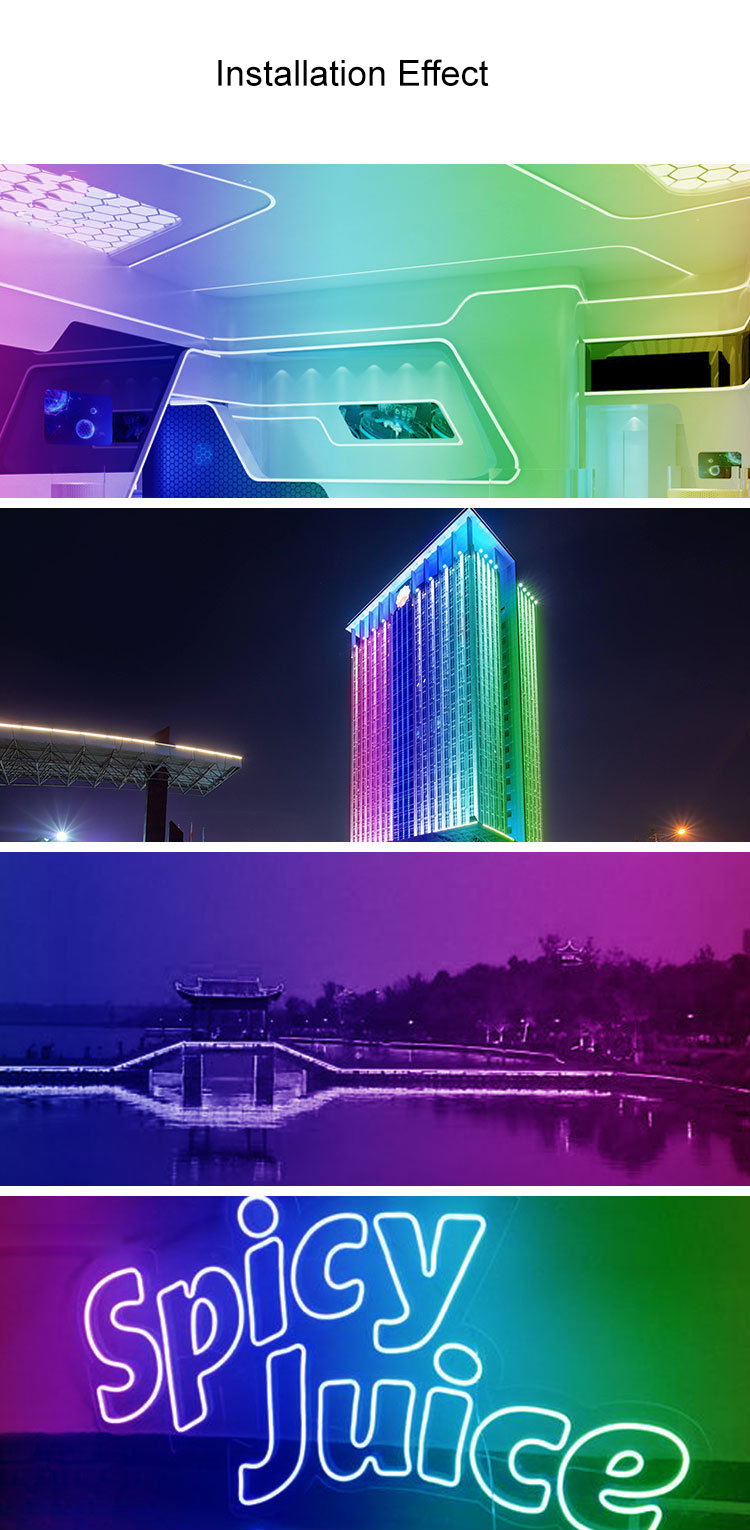

1.Hotels decoration use
2. Backlighting decoration
3. Concealed lighting, Cove decoration
4. Theaters, clubs, shopping malls lighting
5. Architectural decorative lighting
6. Auditorium walk stairway lighting
7. Show exhibition decoration
8. luminous characters
9. Holiday lighting
10. Advertising lighting
