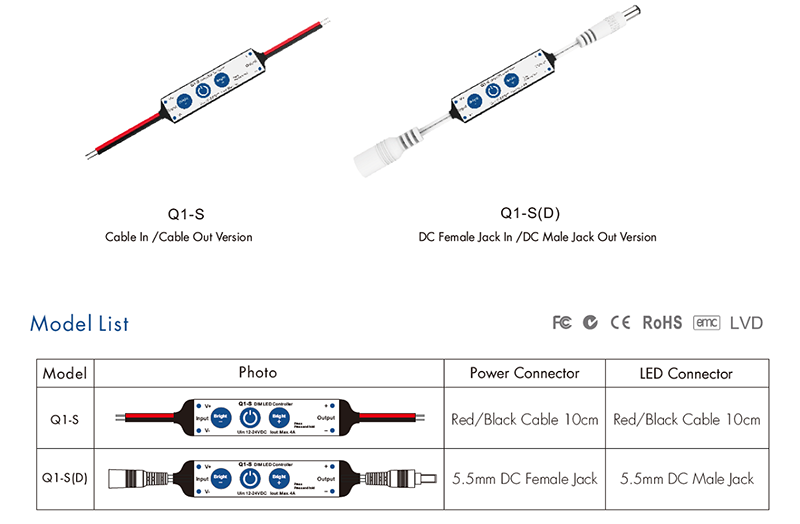

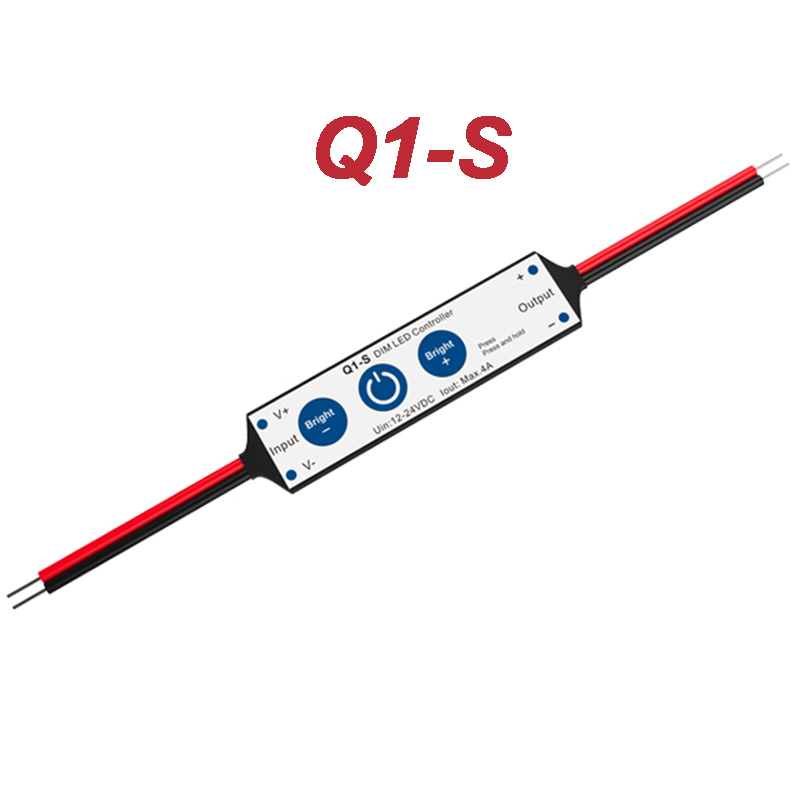

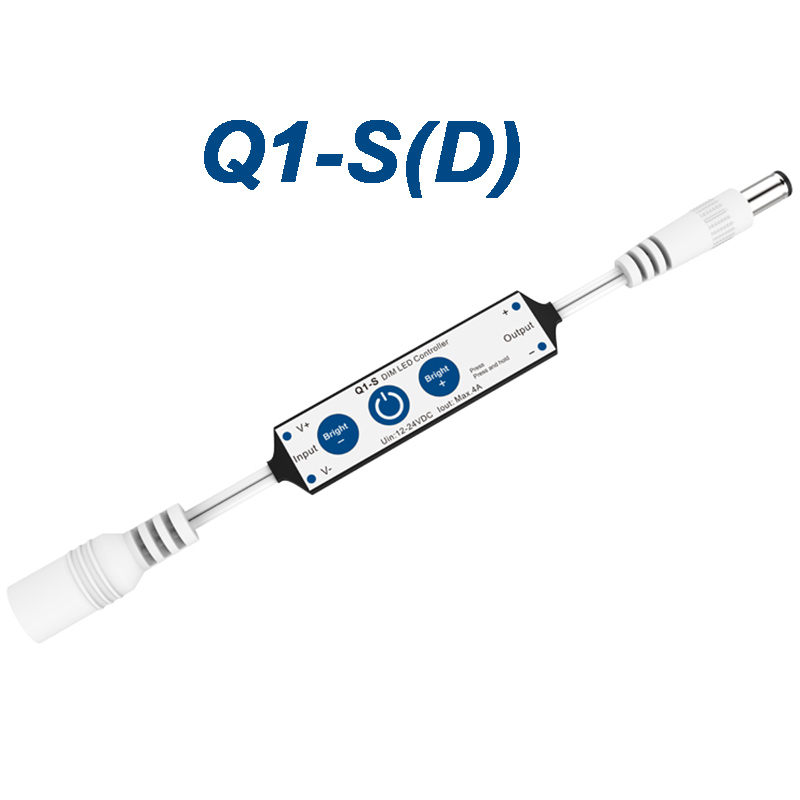

Q1-S DC12-24V 1CH*4A 3-Key Single Color LED Mini Controller Without Remote Function
3-Key Single Color LED Mini Controller without remote function
● 1 channel constant voltage single colour LED mini controller.
● 3 key operation with on/off and dimming.
● 4A output, connect with 5 meters single colour LED strip.
● 1024 levels 0-100% dimming smoothly without any flash.
Turn on or off the light.
Brightness -, short press 10 levels,
long press 1-6s for continuous 256 levels adjustment.
Brightness +, short press 10 levels,
long press 1-6s for continuous 256 levels adjustment.
Input and Output
Input voltage: DC12-24V
Output voltage: DC12-24V
Output current: Max. 4A
Output type: Constant voltage
Dimming level: 1024 levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 750Hz (default)
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity/over heat/ short circuit
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Standards and Certifications
