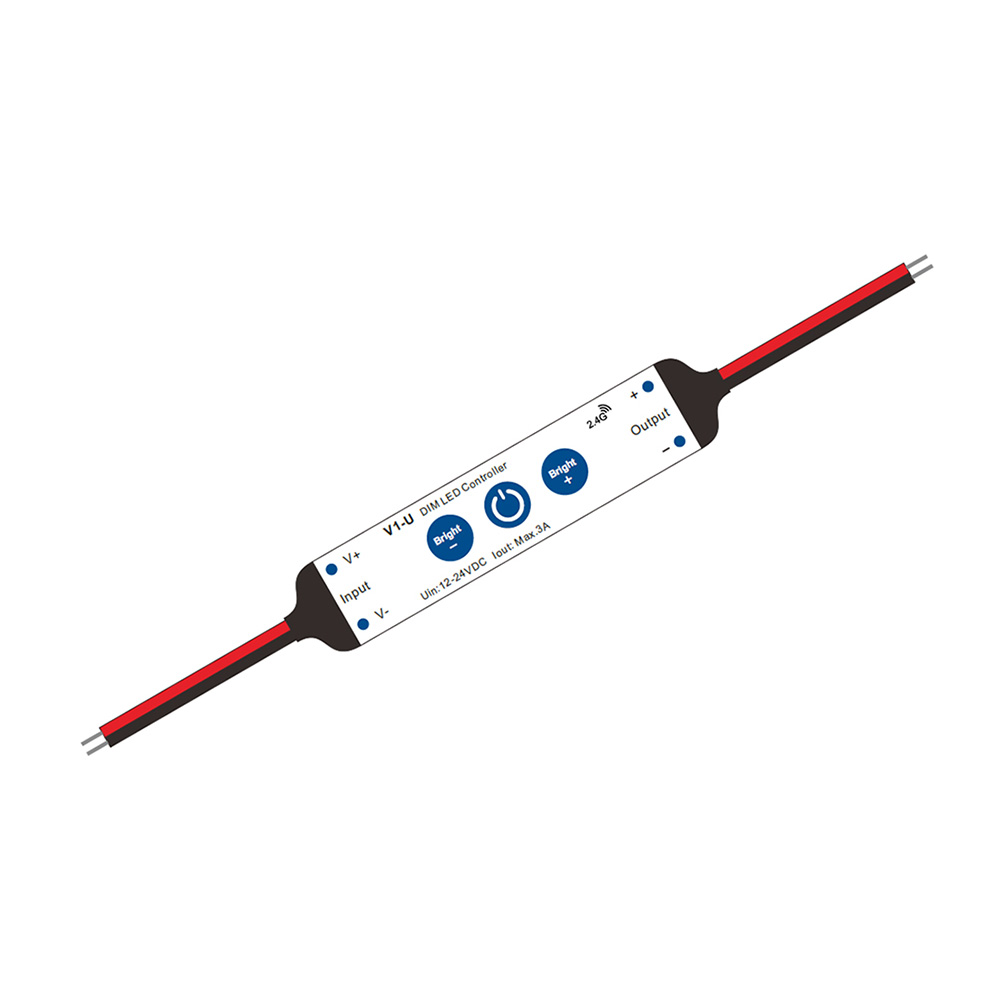

V1-U 1CH*3A 12-24VDC 3-Key Constant Voltage Mini Dimmable Controller
- $42.98 $20.9851% off
- $30.00 $24.9817% off
- $40.00 $29.9825% off
- $39.98 $24.9838% off
- $42.98 $20.9851% off
- $59.98 $19.9867% off
12-24VDC 3key constant voltage mini dimmable LED controller, supports manual control of LED strip om/off, and can also adjust the brightness of the LED strip lights;
The maximum output power of a single channel is 3A, and the maximum total output power is 75W, suitable for single Color low power LED light;
Which can match Skydance RF dimmable LED remote controller, can receive 10 RF remote controllers, wireless cascade, one remote control can control multiple LED controllers synchronously
● 1-4 channel constant voltage mini LED controller with 3 key.
● Output connect with 5 meters LED strip, max output power 75W.
● Match with Skydance’s 2.4G single zone or multiple zone single color, dual color and RGB/RGBW remote control.
● One RF controller accept up to 10 remote control.
● 4096 levels 0-100% dimming smoothly without any flash.
● When using with RGB/RGBW light, built in 10 dynamic mode, include jump or gradual change style.
● Auto-transmitting function: Controller automaticly transmit signal to another controller with 30m control distance.
● Synchronize on multiple number of controllers.

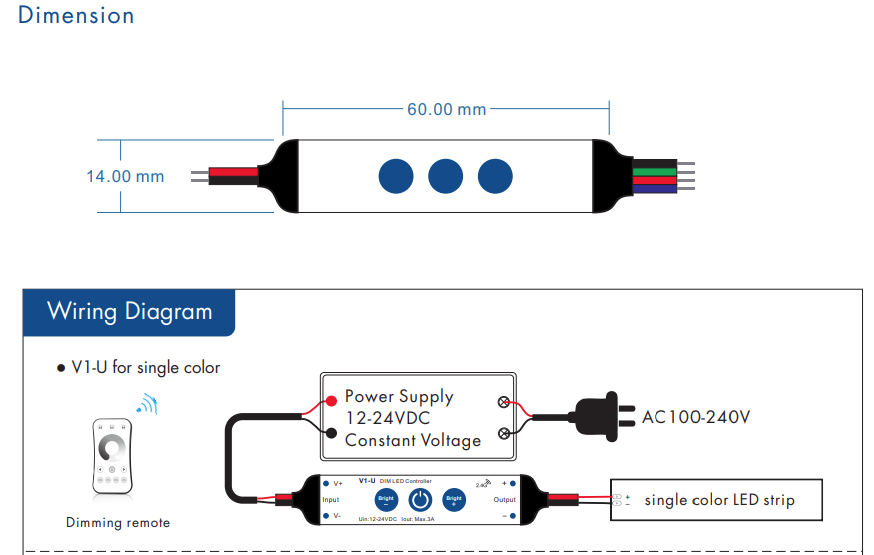

Input and Output
Input voltage: 12-24VDC
Output voltage: 12-24VDC
Output power: Max. 75W
Output type: Constant voltage
Input signal: RF 2.4GHz+3Keys
Control distance: 30m
Dimming level: 4096 levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 500Hz (default)
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Waterproof Rating： IP20
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity
Standards and Certifications
