Solderless 10mm Tape to Tape COB RGB LED Strip Light 4-Pin Connector

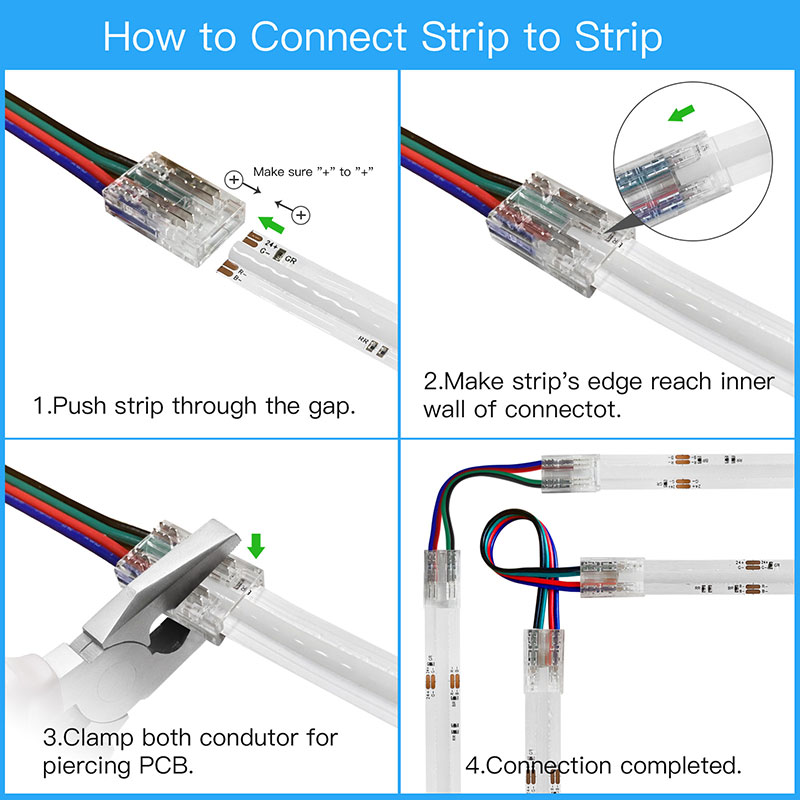

Tape to tape type COB LED connector for 10mm IP20 RGB light strip. Make sure positive and negative are not reversed when in use.

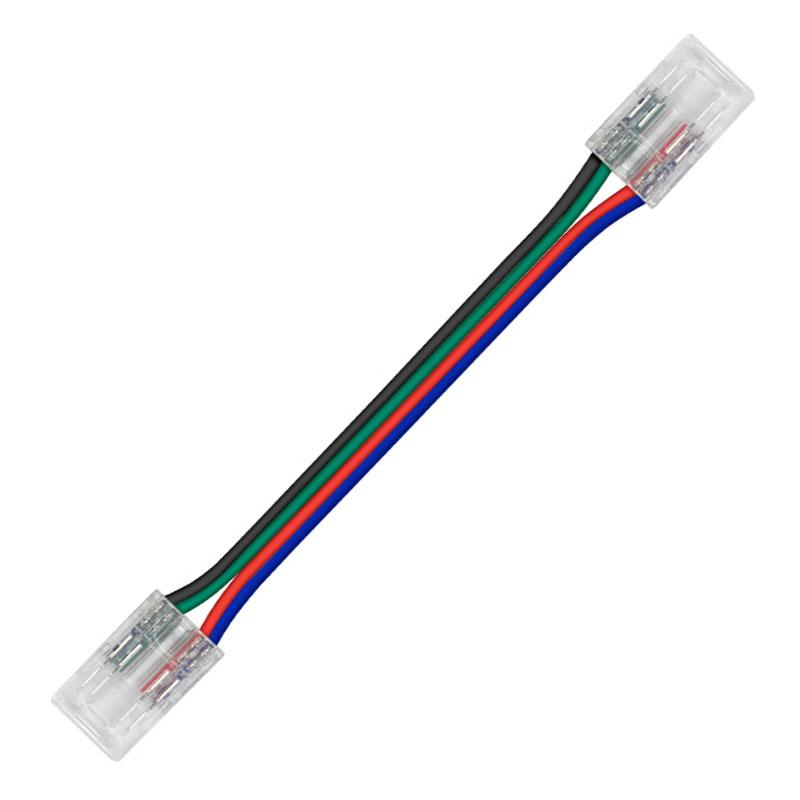

Product: Solderless 4-pin COB led strip connector

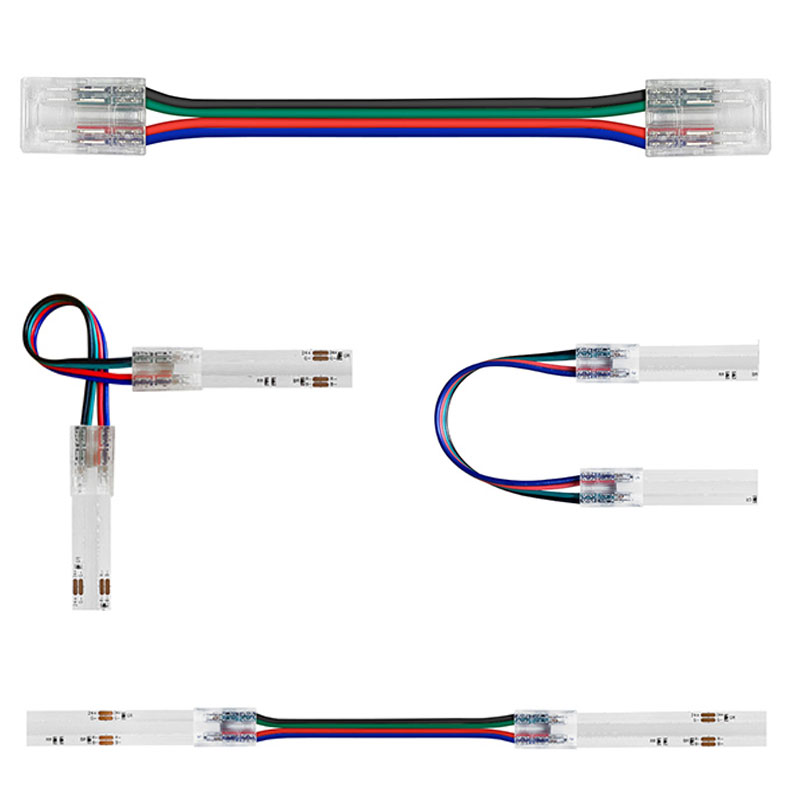

Type: Strip to Strip
Apply to: IP20 COB RGB led strips
Available PCB Width: 10mm
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
