DC5V flat cable or network cable easy use and simple defined setting touch screen master controller used for urban lighting system ,led strip lighting ,stadium light
DMX touch screen master controller is a kind of lighting controller which is based on intelligent system. The touch screen adopts the popular capacitive touch technology, It is a control panel using software virtual metallic. This software is easy to use and very simple for user-defined settings. It can realize a variety of lighting control effect quickly and easily.
Standards and Certifications
Working temperature:-20 - +45℃
Supply voltage: DC5V
Output: 36CH DMX signal
Connecting method: flat cable or network cable
External size: 240*150*22mm
Packing size: 250*230*32mm
Net weight: 730g
Gross weight: 800g
Static power consumption:10W

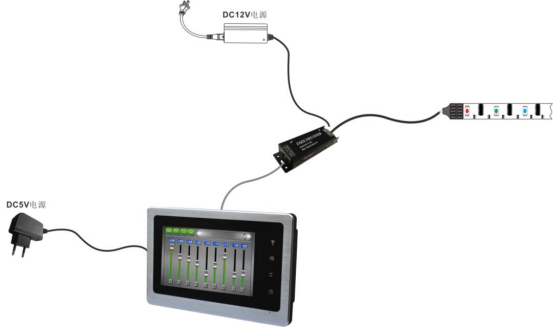

Master Controller Interface Instructions
1. Power: DC5V power interface. 4Pin flat cable, 1Pin, 2Pin connect 5V. 3Pin, 4Pin connect GND;
2. DMX interface2: RJ45 interface.1Pin connect D+, 2Pin connect D-, 7Pin, 8Pin connect GND;
3. DMX interface 1: 3 Pin flat cable.1Pin connect D-, 2Pin connect D+, 7Pin,3Pin connect GND;
4. DALI interface 2: 2 Pin flat cable, DMX master control is useless;
5. DALI interface : 2 Pin flat cable, DMX master control is useless;
