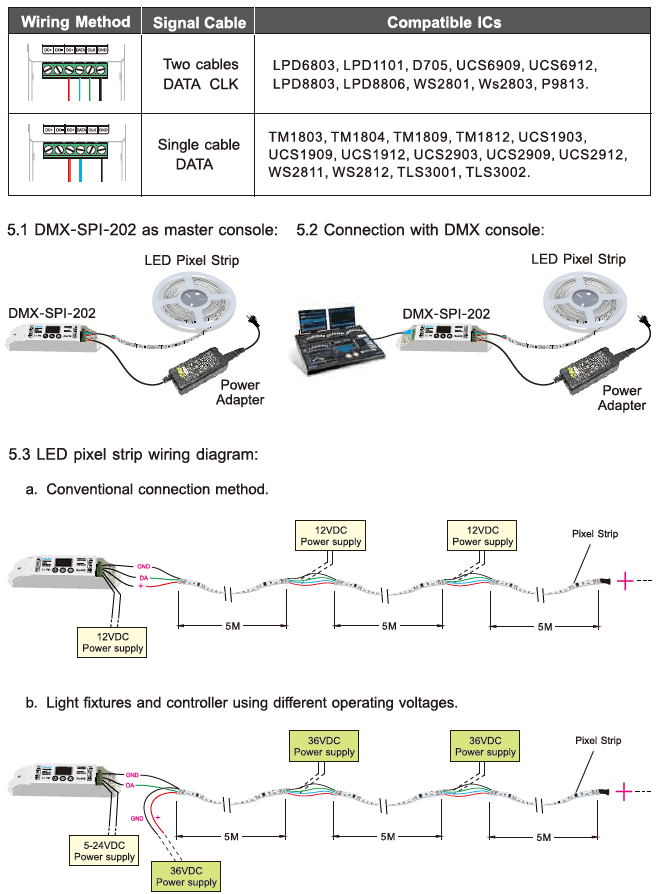

DMX-SPI-202 V6.0 converts DMX512/RDM signal into SPI(TTL) digital signal and controls most of the pixel LED lights/addressable led strip lights in the market. With the standard RDM remote device management protocol. DMX digital console can control every channel of the LED lights, realizing 0~100% dimming or defining all sorts of changing effects.
With OLED display, it’s easy to select the IC type, RGB sequence, etc. Built in 16 color changing modes, would be worked as a single SPI controller independently.

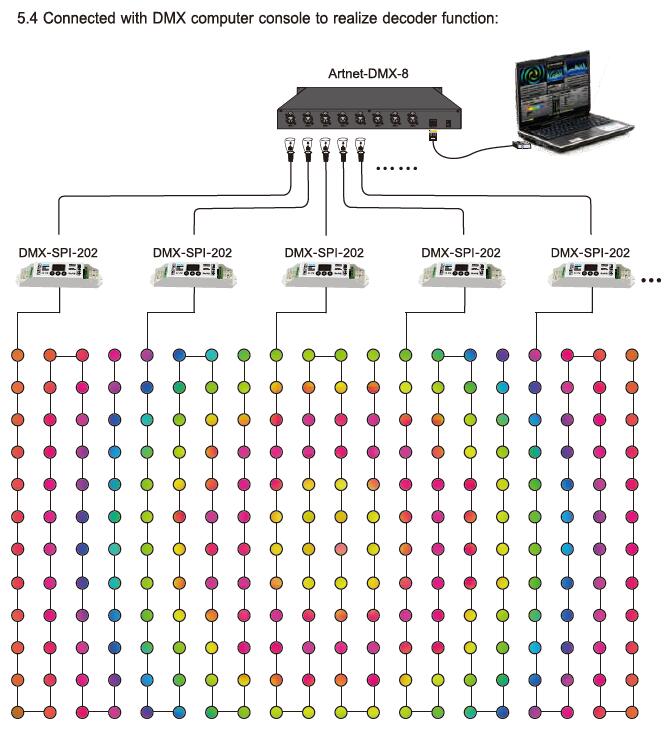

An additional function in DMX-SPI-202 V6.0: connect to the DMX console, 6(8) times of the LED lights can be controlled and the max. 1024 pixel can be controlled by 1pcs DMX-SPI-202 when virtual pixel function.
DMX-SPI-202 V6.0 can realize parameters setting and firmware upgrading by long-range setting when work with LTECH RDM editor, it is convenient for current using and later versions upgrading.
Input power: 5~24VDC
Input signal: DMX512/RDM
Output signal: SPI(TTL)
Function Mode:16 modes
Control quantity: RGB 170 pixels (510CH); RGBW 128 pixels (512CH)
Virtual pixel: RGB 1-6 times, Max 1020 pixel; RGBW 1-8 times, Max 1024 pixel
Working Temperature: -30℃～65℃
