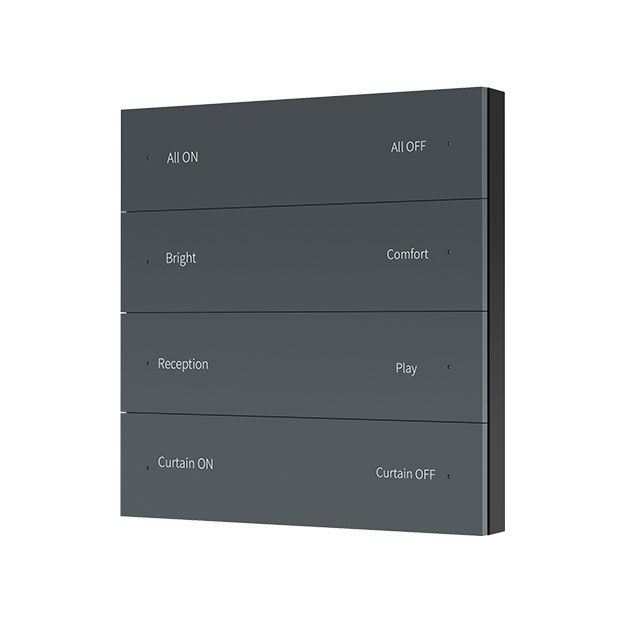

100-240VAC 8 Scenes Zigbee Button Panel Wall Remote Controller PK8(WZS)
Zigbee 3.0 Wall-Mounted Scene Panel Controller, 8 Scene button /Zigbee 3.0 /AC input.
● 8-button scene panel remote with scene recall.
● Built-in Tuya Zigbee 3.0 remote module, supports scenario linkage and one-click execution.
● Set scene function through Tuya APP.
● Each button has a blue LED indicator.
● Customizable button words.
● Provide a variety of Chinese/English scene button pasters, which can flexibly define the functions of each button.
Standards and Certifications
|Input current:||Max 0.1A|
|Input signal:||Button key|
|Output signal:||Zigbee 3.0|
|Control distance:||30m (Barrier-free space)|
|Operation temperature:||Ta: -30℃ ~ +55℃|
|Case temperature (Max.):||Ta: +65℃|
App Operating Instructions
1. Network pairing
● Download the Tuya APP and register an account, search and add the Tuya Zigbee gateway device.

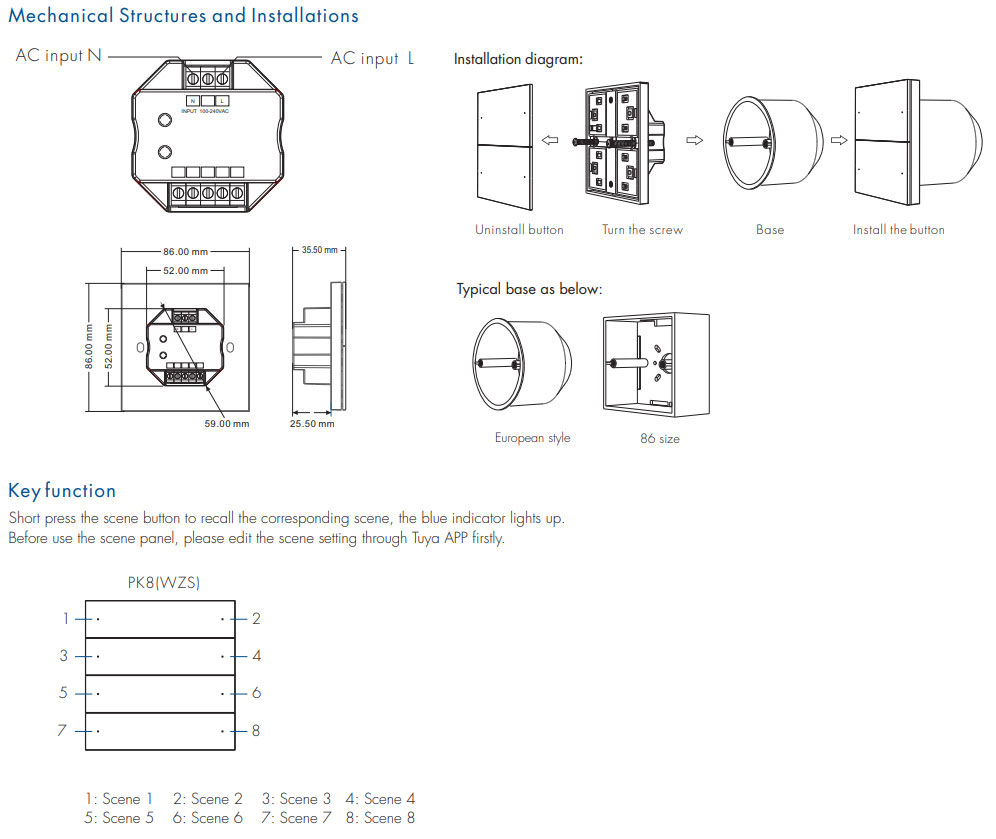

● For PK8: Press and hold the "Scene 1" and "Scene 8" buttons until the 8 LED indicator light flashes. Under the gateway, you can find the WZS-Scene Panel device in Tuya APP. After successful network pairing, the 8 LED indicator light will be on for 2 seconds and then off.
● Under the gateway, search and add one or more ZBS-DIM, ZBS-CCT, ZBS-RGB, ZBS-RGBW, and ZBS-RGB+CCT light devices.
● Scene panel unpairing: Delete the WZS-Scene Panel device from the tuya APP.
2. Remote association and scene settings
There are 8 scenes in the Tuya APP, which can be set to lighting scenes or linkage scenes.
The lighting scene is used for the overall control of multiple lamps, like the light adjustment of the entire room.
Linkage scene is used for linkage control of different equipment, such as lamps and curtains on and off together.
